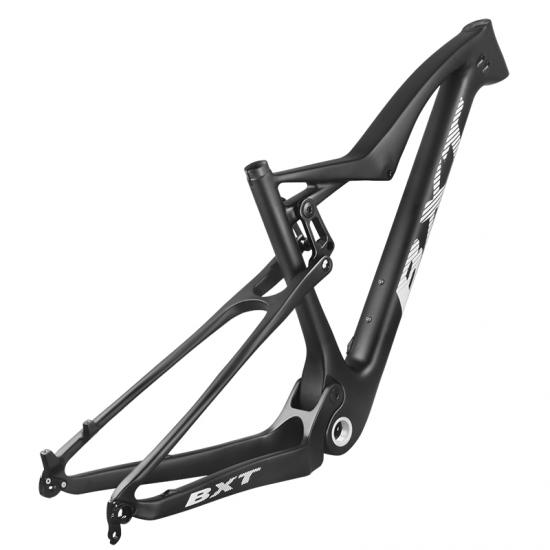

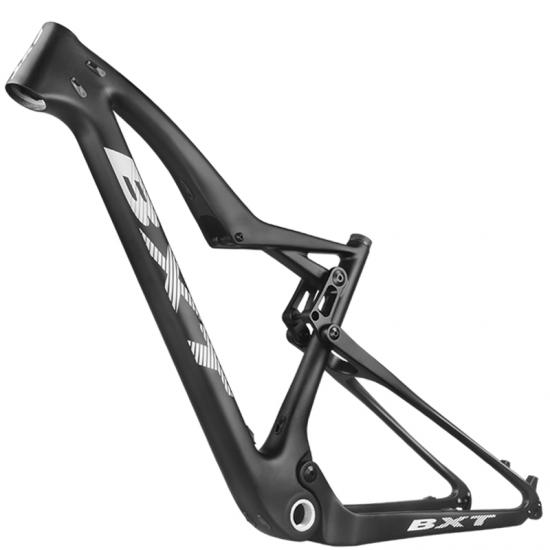

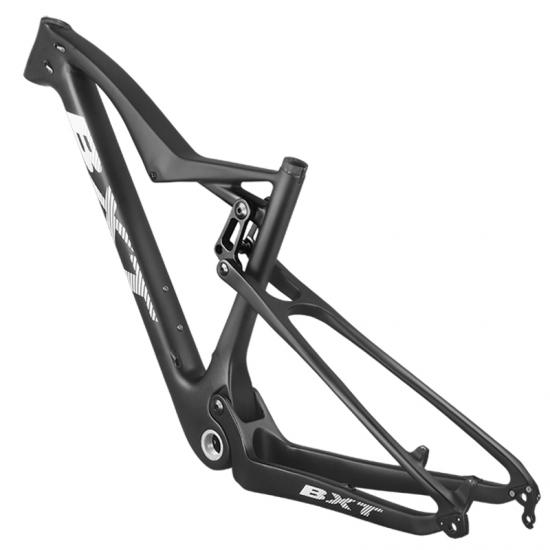

High modulus carbon fiber T1000 full suspension frame. 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.
Item NO.:
BXT-MTB-107Payment:
FOB/EXWProduct Origin:
ChinaLead Time:

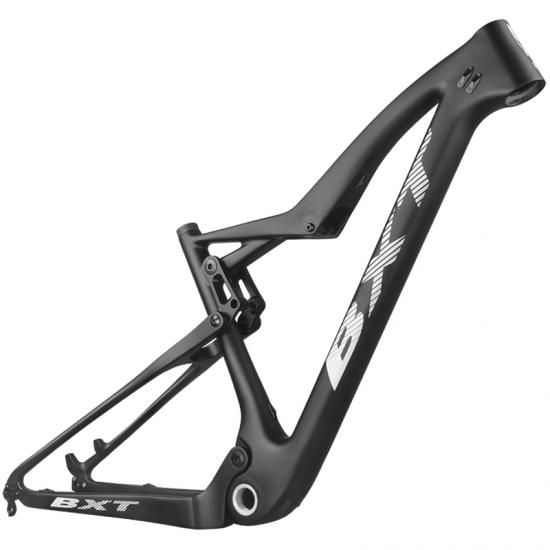

1-2 WeekXC Full Suspension Carbon Bike Frame
High modulus carbon fiber T1000 full suspension frame. 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.

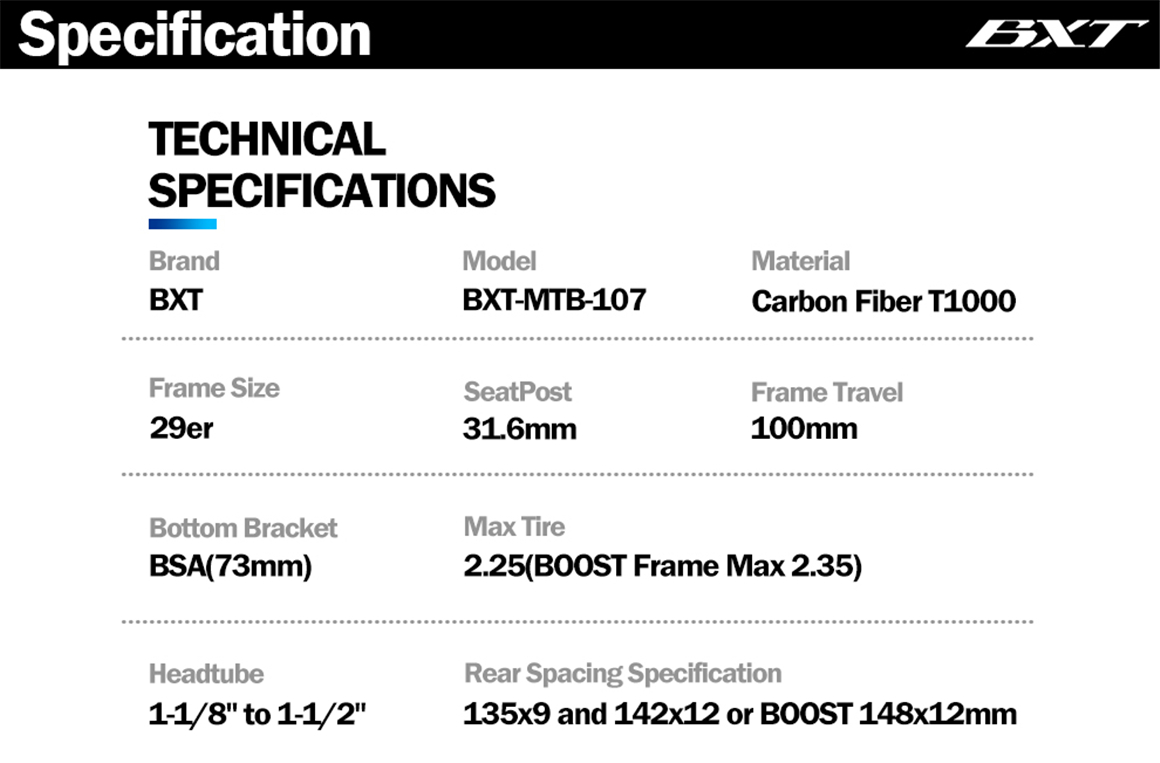

Product Description
|
Type |
Full Carbon Suspension MTB Frame 29er |
|
Material |
T1000 Carbon Fiber |
|
Frame Travel |
100mm |
|
Fit for Rear Shock |
Length 165mm,Bushing 22mm |
|
Fit for Seat Clamp |
34.9mm |
|
Fit for Seat Post |
31.6mm |
|
Max Load |
250kg |
|
Fit for Disc Brake |
160mm |
|
Fit For Bottom Bracket |
Screw-in BSA(73mm) |
|
Recommend Fork Travel |
80-100mm |
|
Rear Spacing Specification |
135x9 and 142x12 or Boost 148x12mm |
|
Fit for Headset |
Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
|
Fit for Tire |
29er.Max 2.25Tire(BOOST Frame Max 2.35Tire) |
|
Brake,Derailleur Cable |
Frame Internal |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
