Home MTB FRAME Full Suspension XC FullSuspension Carbon Frame 29er

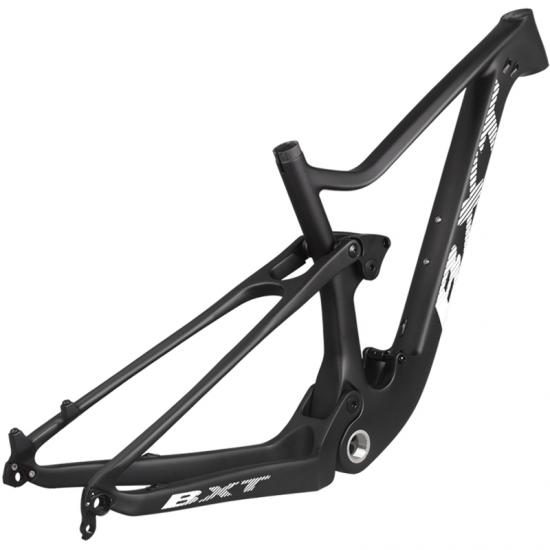

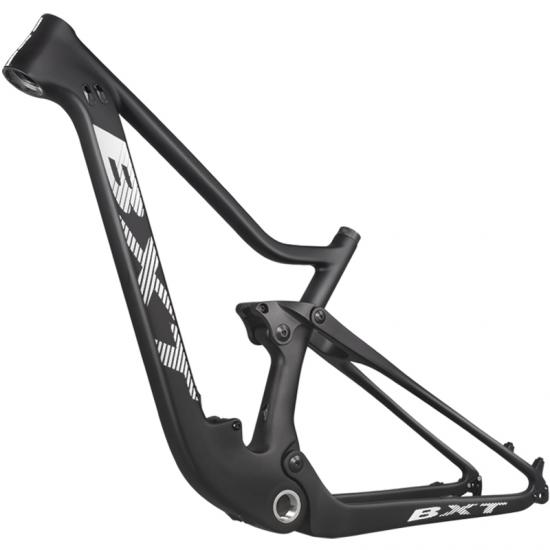

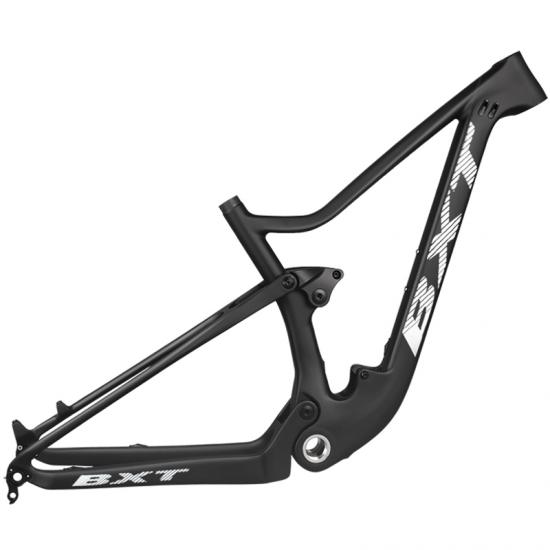

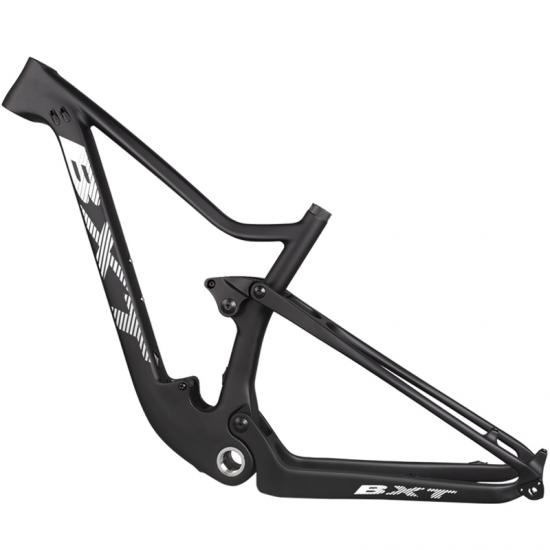

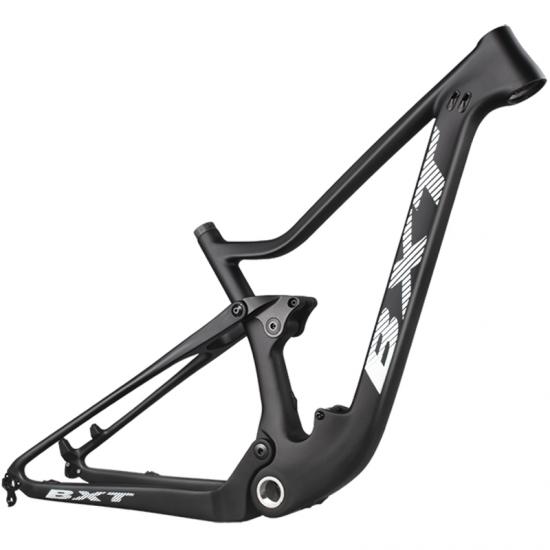

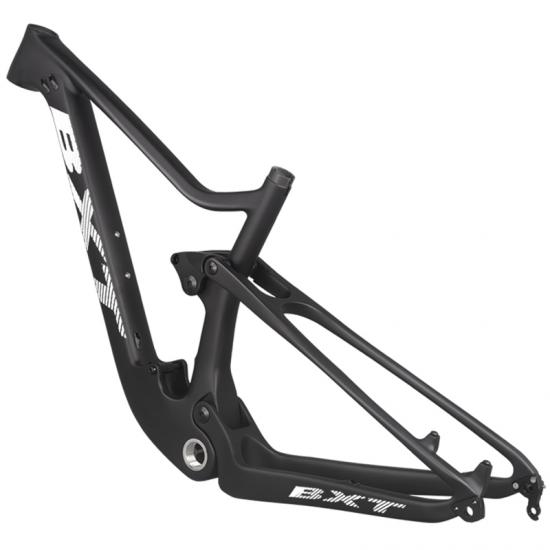

XC FullSuspension Carbon Frame 29er

High modulus carbon fiber T1000 full suspension frame. 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.

  • Item NO.:

    BXT-MTB-097
  • Payment:

    FOB/EXW
  • Price Range:

    501 - 2000/$519
  • Price Range:

    21 - 500/$549
  • Price Range:

    1 - 20/$567
  • Product Origin:

    China
  • Color:

    Provide the existing color by us or customize the color you want
  • Lead Time:

    1-2 Week
  • Order(MOQ):

    1
  • Product weight:

    2200g±100g for M size
  • Product Detail

Carbon Fiber FullSuspension Frame 29er


High modulus carbon fiber T1000 full suspension frame. 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.

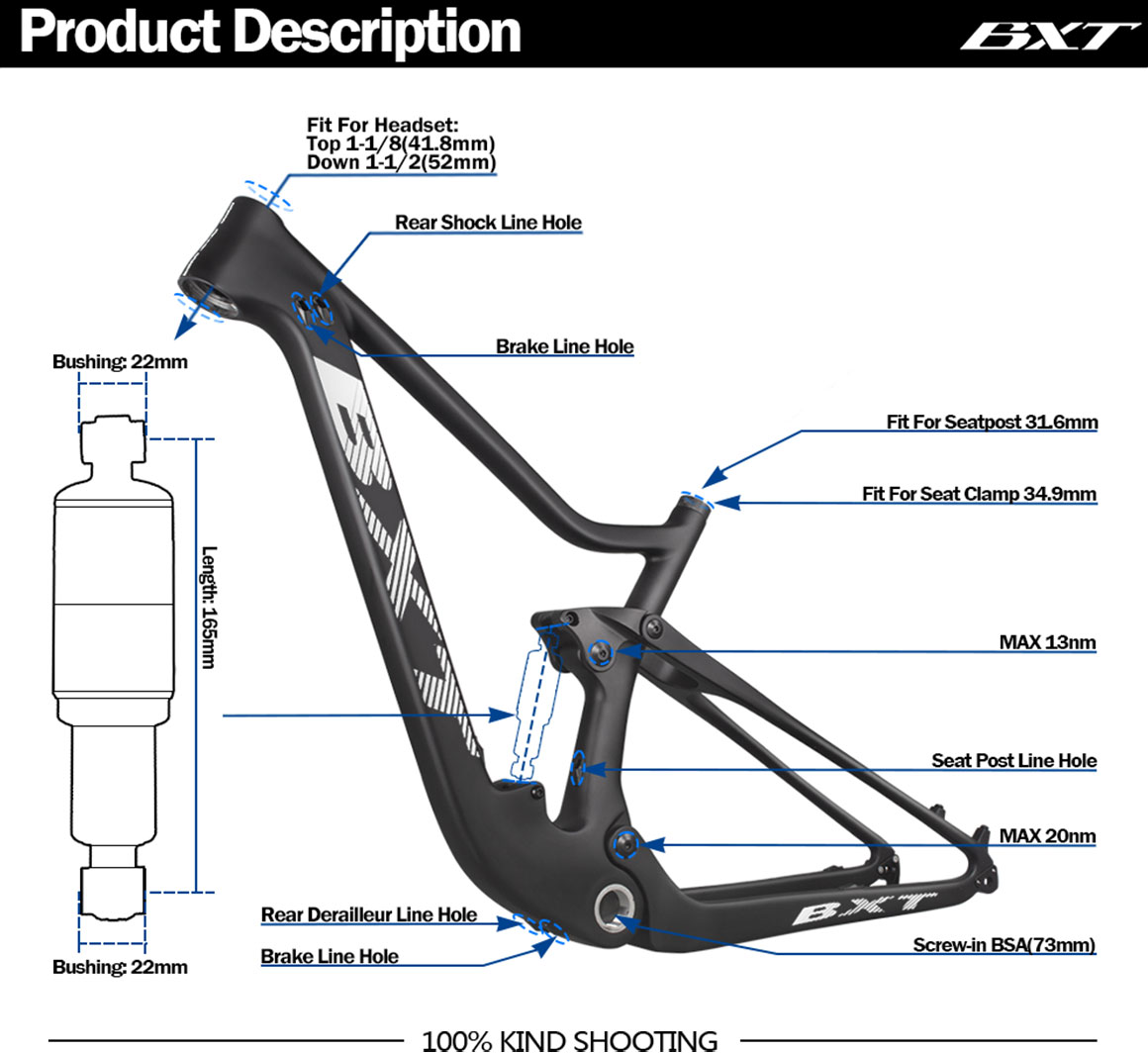

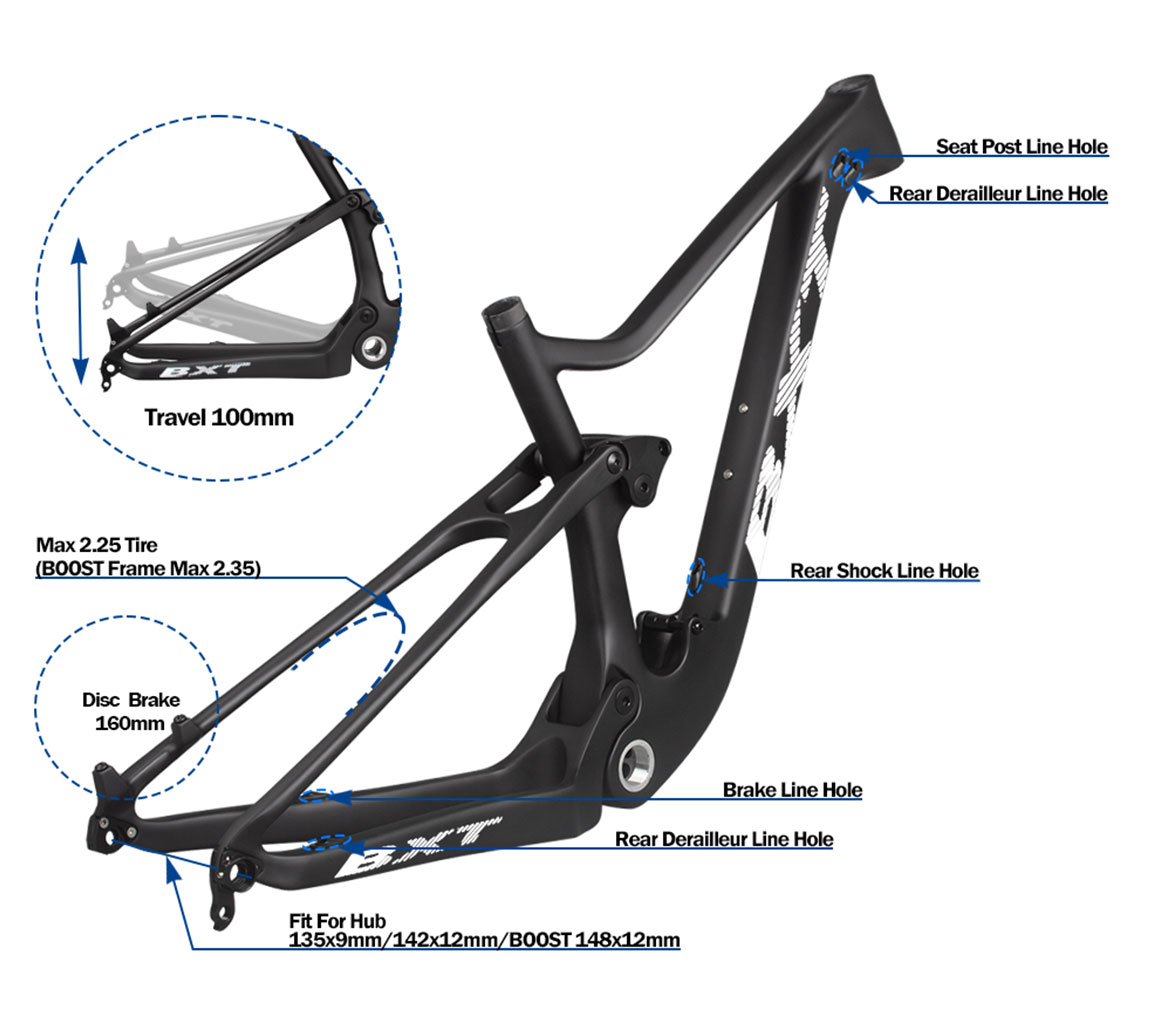

Product Description

Type
Full Suspension Carbon Frame 29er
Brand
BXT
Model
BXT-MTB-077
Material
T1000 Carbon Fiber
Frame Travel
100mm
Fit for Rear Shock
Length 165mm,Bushing 22mm
Fit for Seat Clamp
34.9mm
Fit for Seat Post
31.6mm
Max load
150kg
Fit for Disc Brake
160mm
Fit For Bottom Bracket
Screw-in BSA(73mm)
Recommend Fork Travel
80-100mm
Fit for Rear Wheel Hub
135x9mm and 142x12mm or Boost 148x12mm
Fit for Headset
Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm)
Fit for Tire
29er.Max 2.25inch Tire,BOOST Specification Max Use 2.35inch Tire

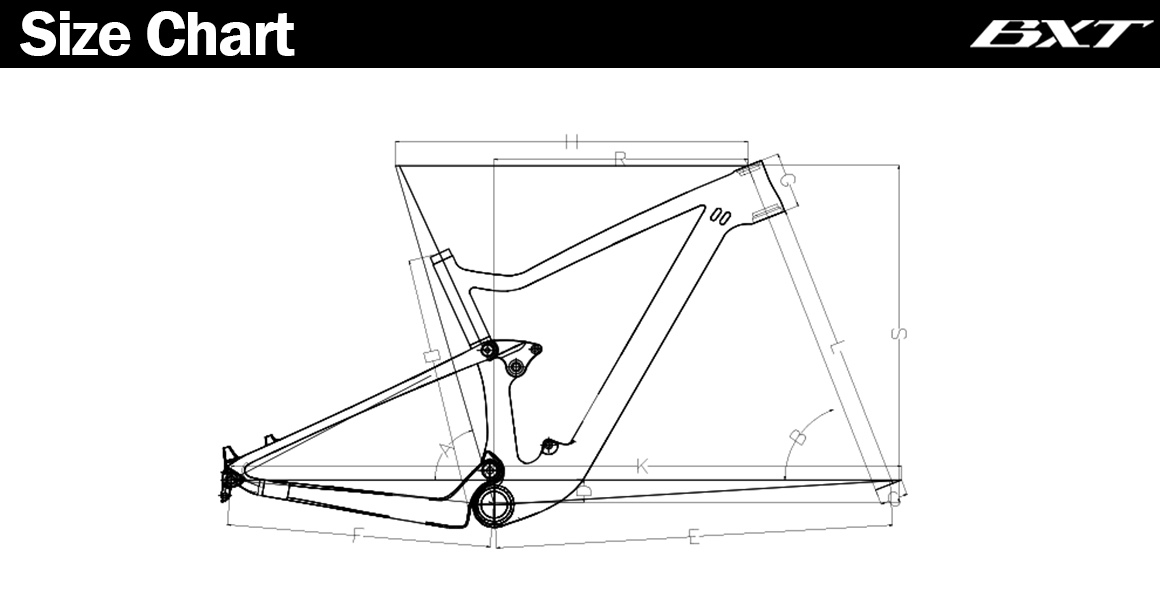

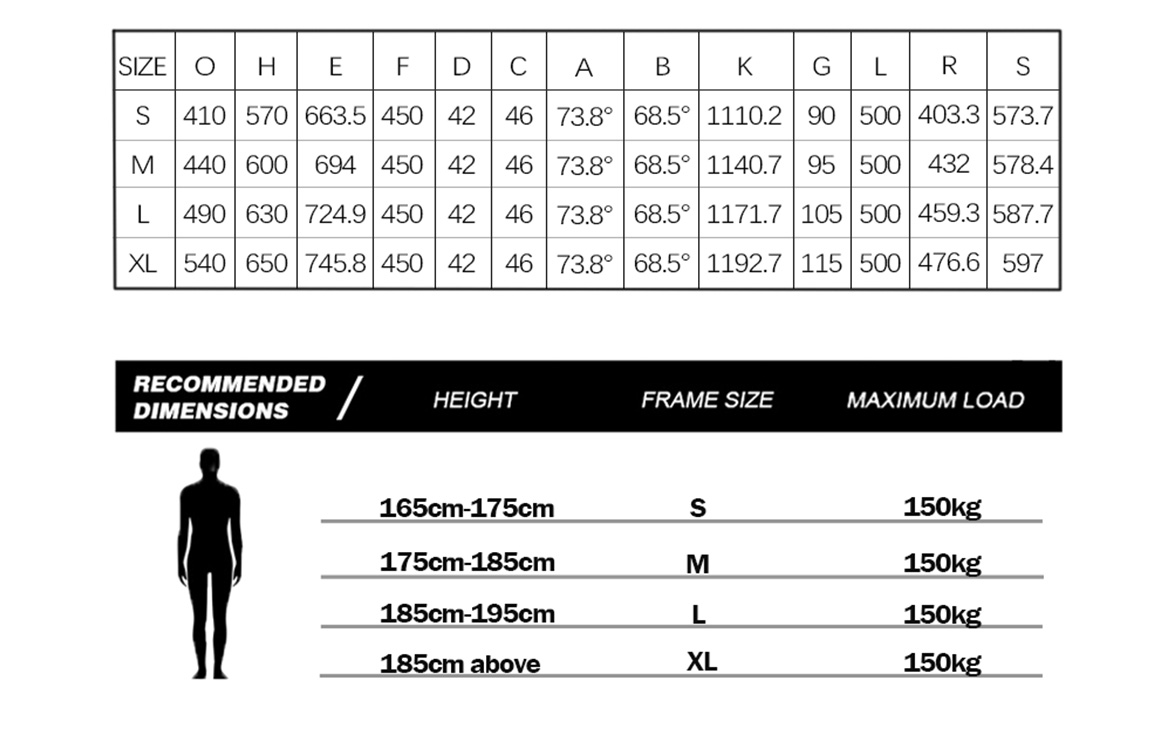

fullsuspension bicycle carbon frame 29xc fullsuspension mtb carbon framefullsuspension frame bottom bracket BSAcarbon mountain bike frame fullsuspensionrear suspension bicycle frame height chart
