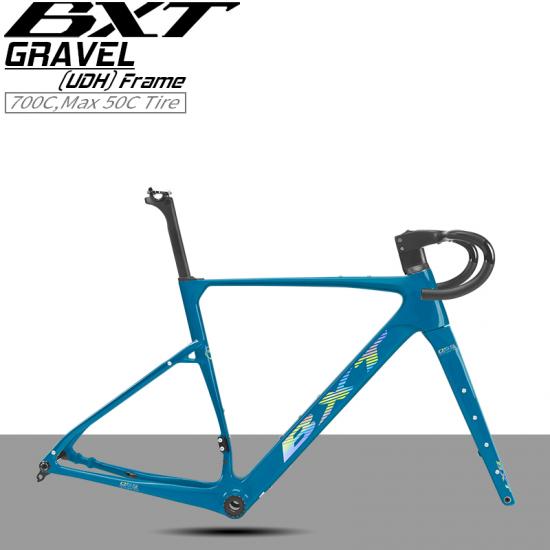

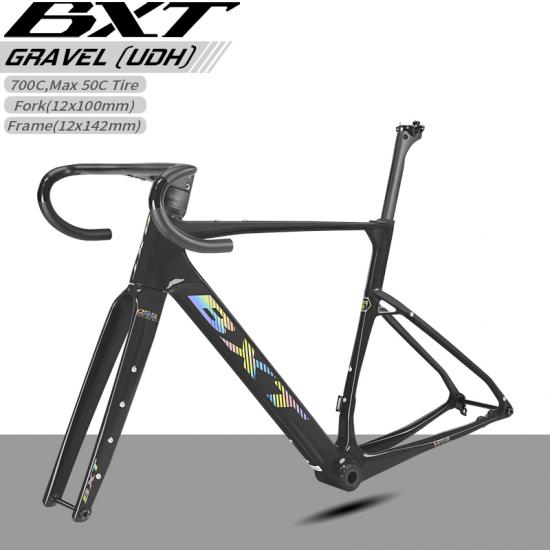

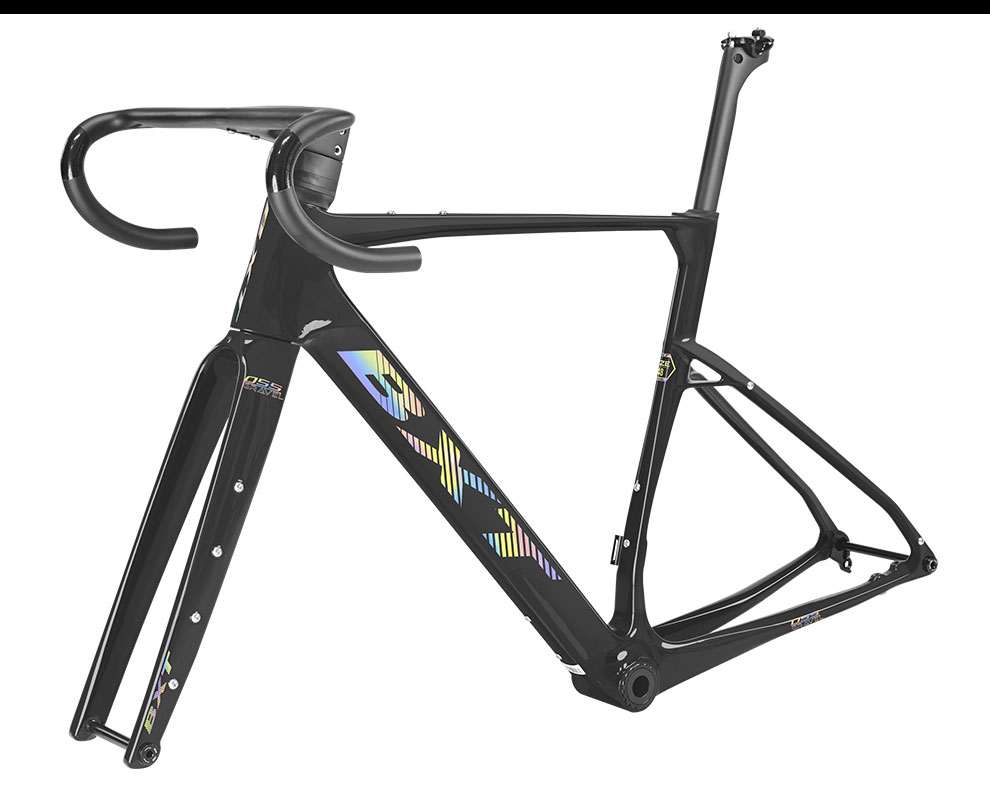

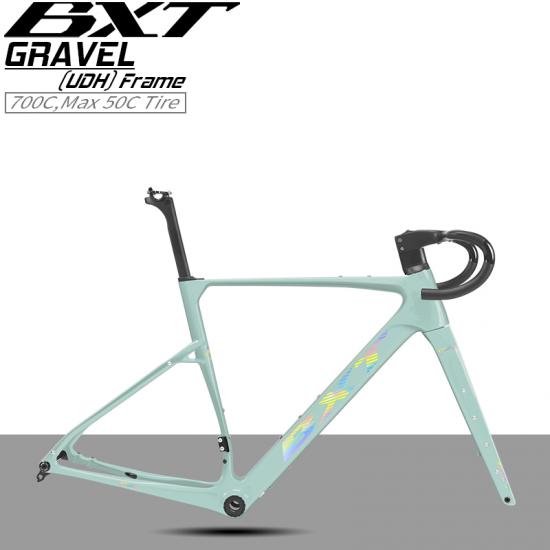

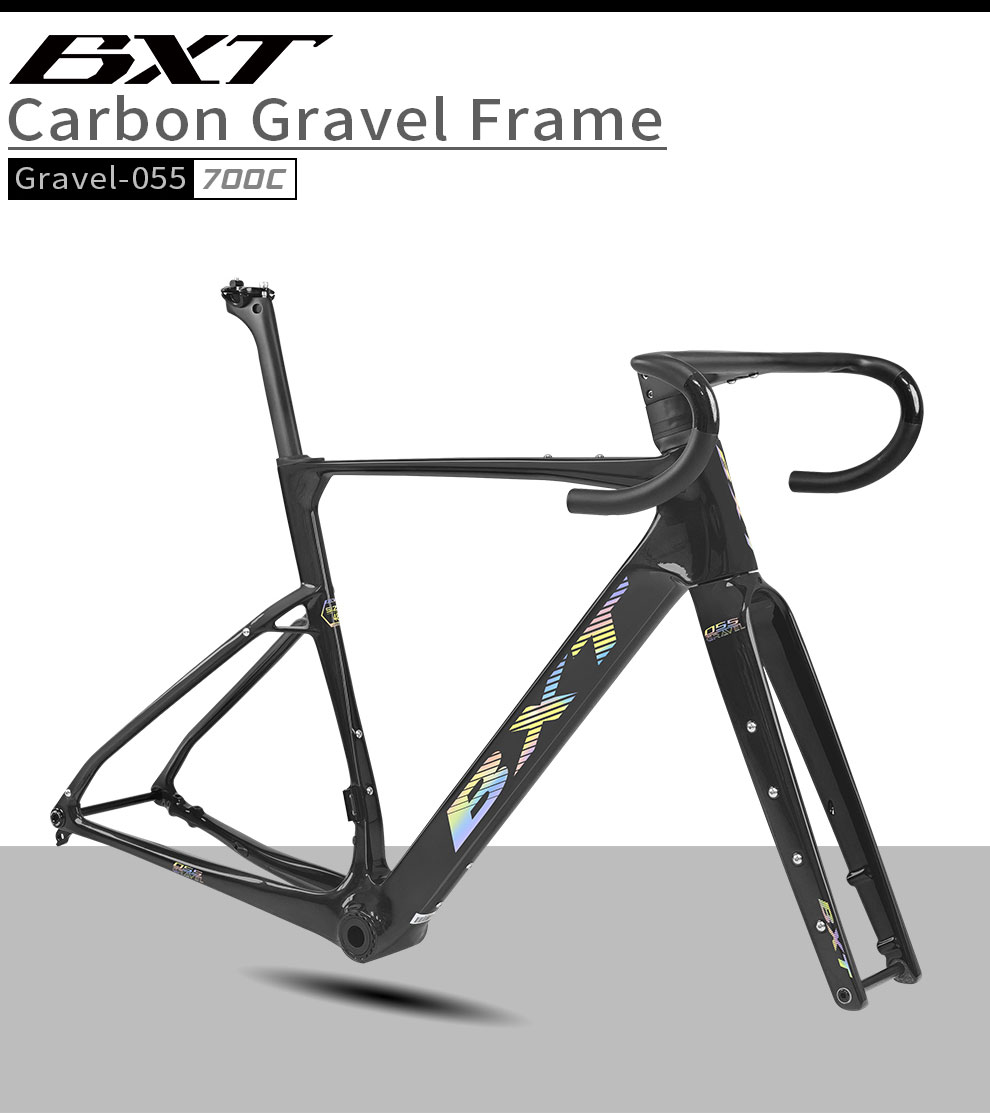

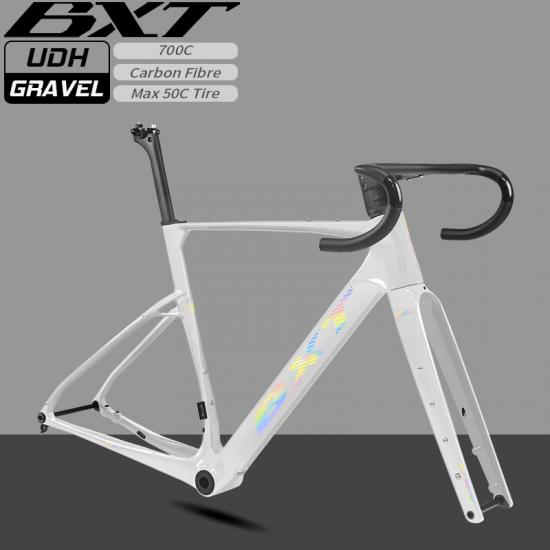

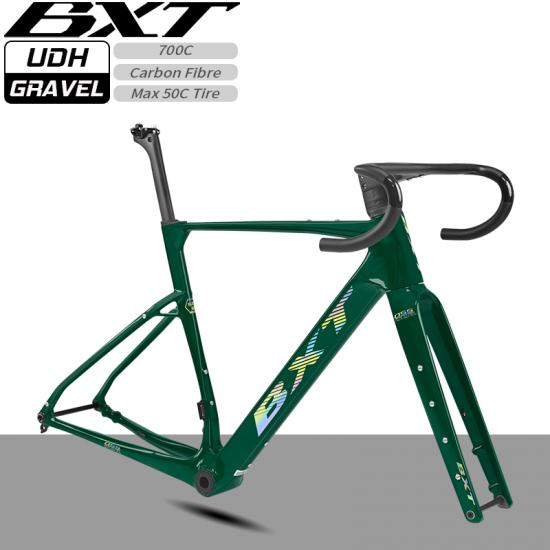

BXT-055 Gravel frameset New T1000 Carbon Disc Brake UDH Hanger 700x50C T47 Thread BB Endurance Road Bicycle 27.5er

BXT-055 Gravel frameset New T1000 Carbon Disc Brake UDH Hanger 700x50C T47 Thread BB Endurance Road Bicycle 27.5er

Click the link to buy now：

https://bxtbikes.com/collections/gravel-frame

Item NO.:
BXT-055 Gravel Frameset
Order(MOQ):
1

Product Detail

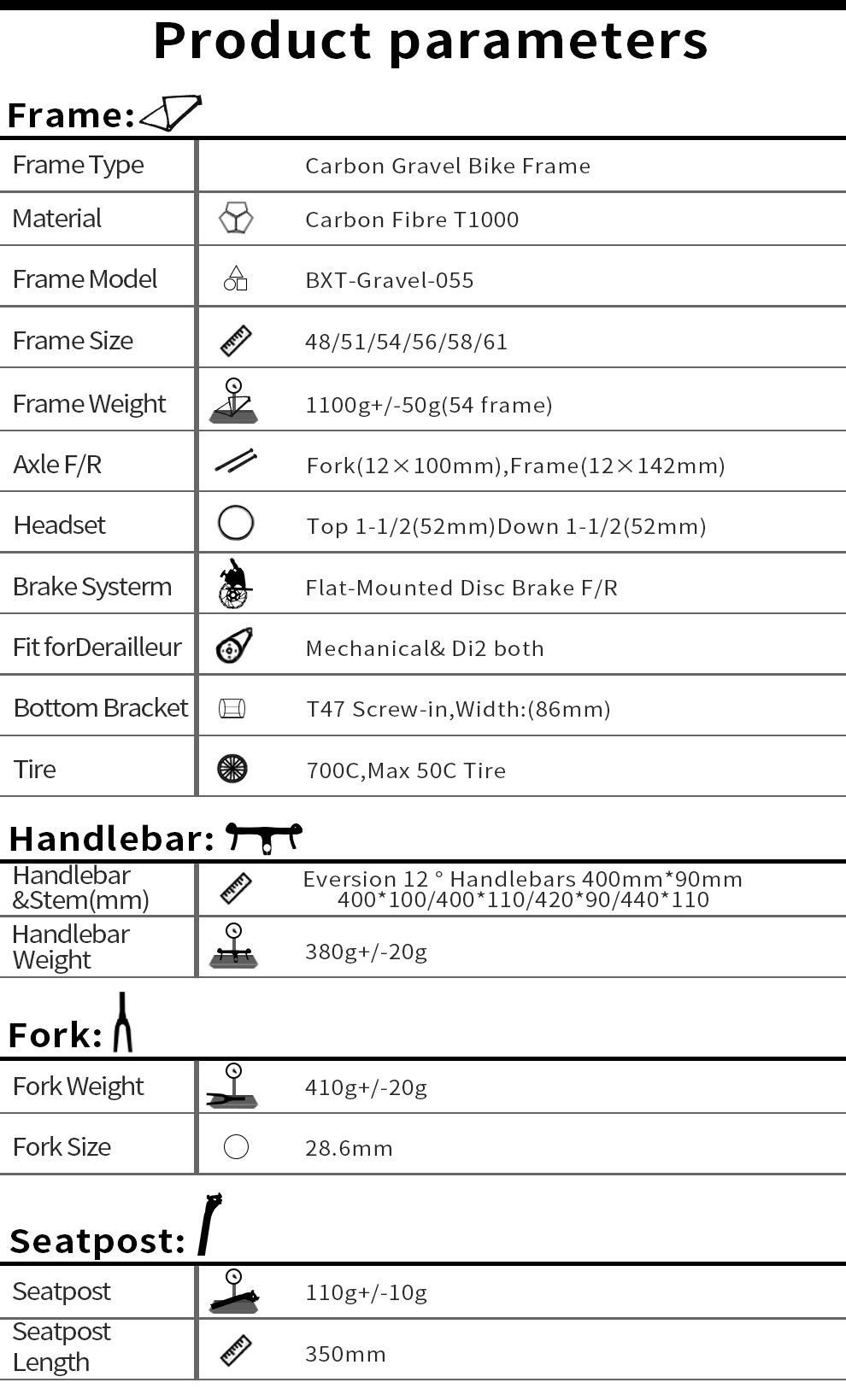

Product parameters

Frame:

Frame Type: Carbon Gravel Bike Frame BXT Brand

Material: Carbon Fibre T1000

Frame Model: BXT-Gravel-055

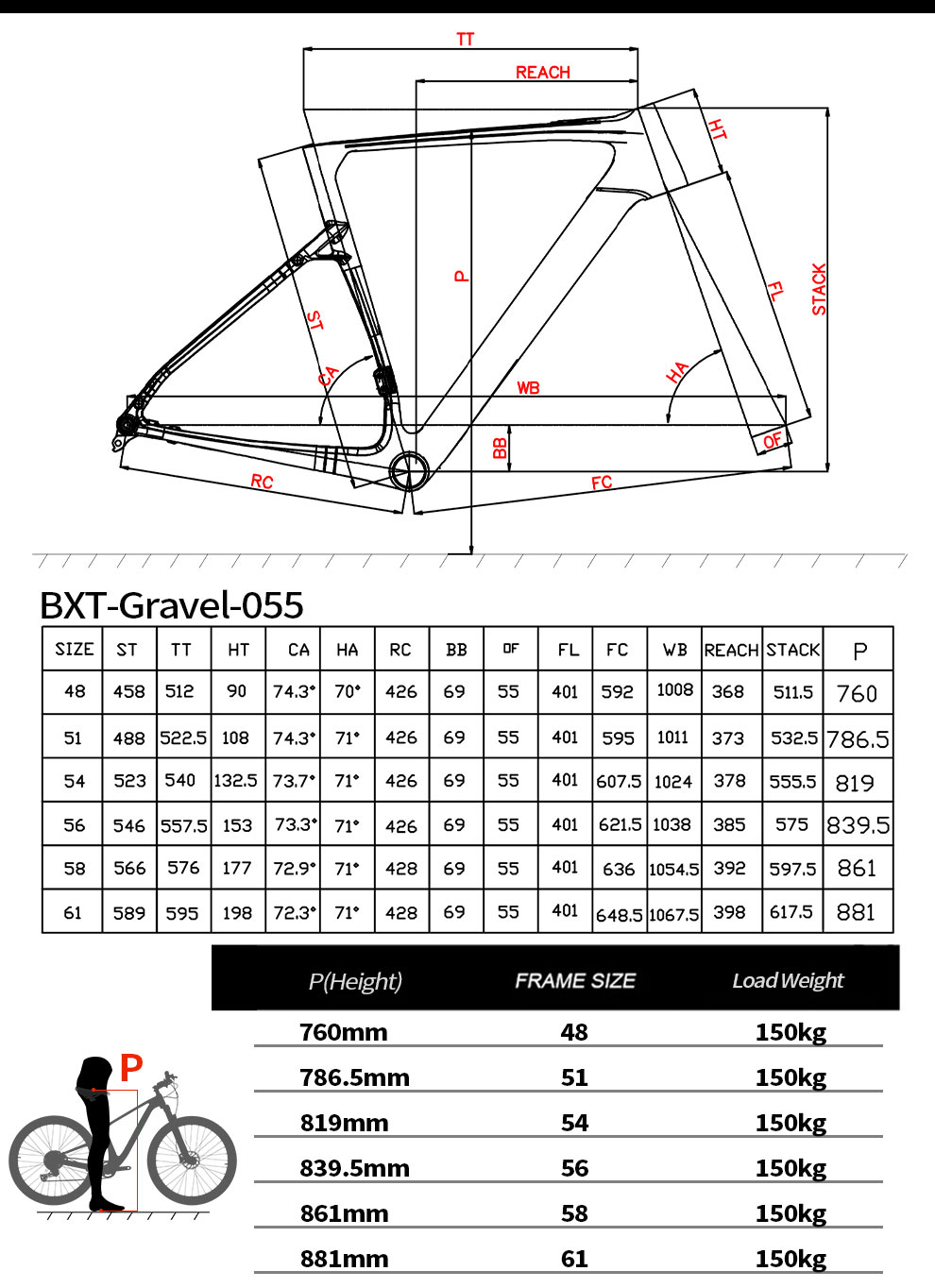

Frame Size: 48/51/54/56/58/61

Frame Weight: 1100g+/-50g(54 frame)

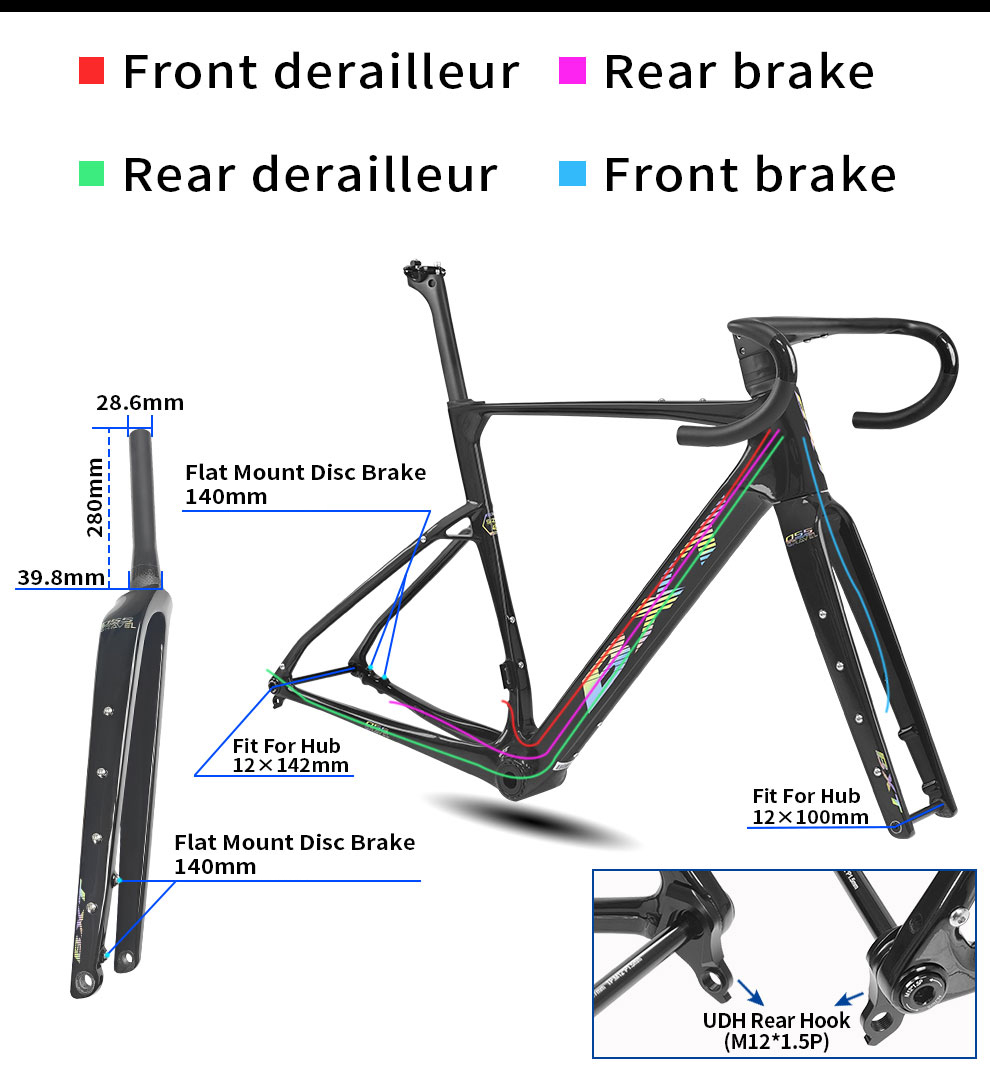

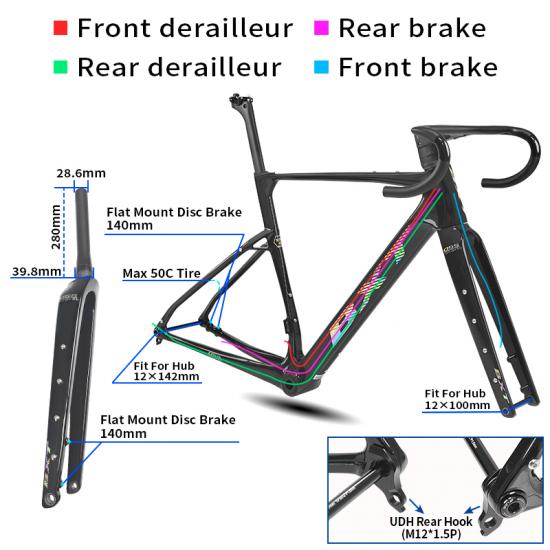

Axle F/R: Fork(12x100mm),Frame(12x142mm)

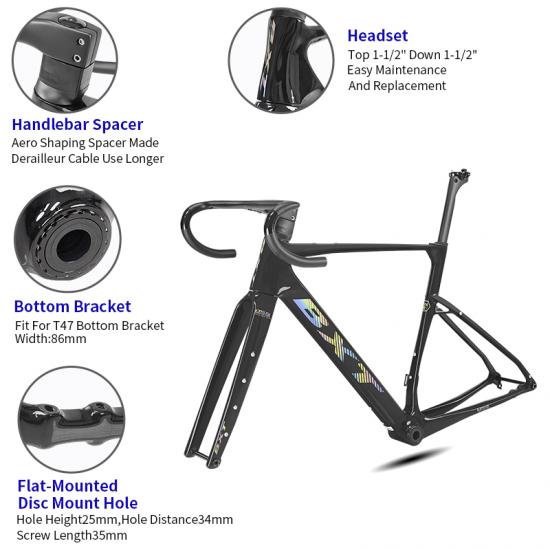

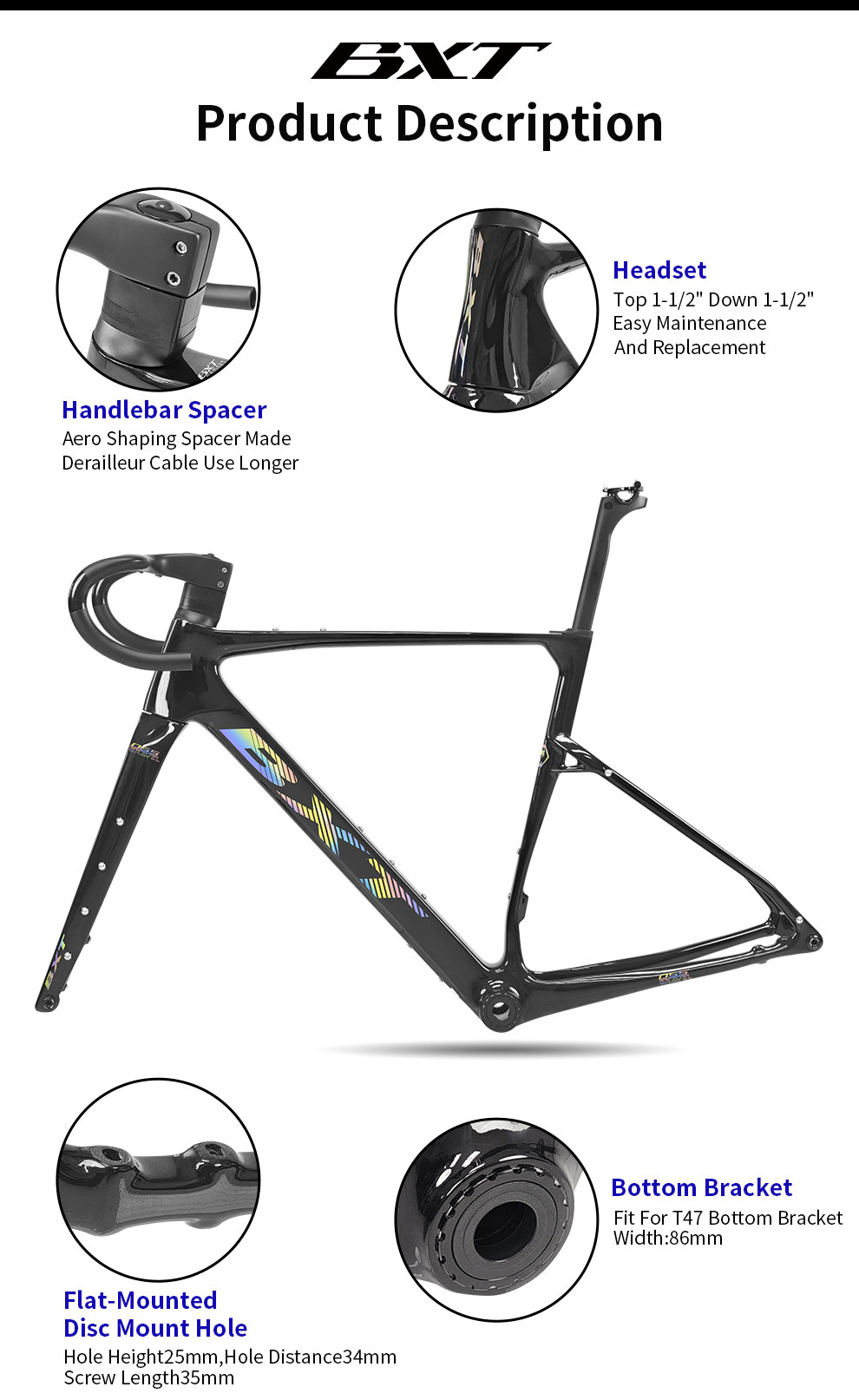

Headset: Top 1-1/2(52mm)Down 1-1/2(52mm)

Brake Systerm: Flat-Mounted Disc Brake F/R

FitforDerailleur: Mechanical& Di2 both

Bottom Bracket: T47 Screw-in,Width:(86mm)

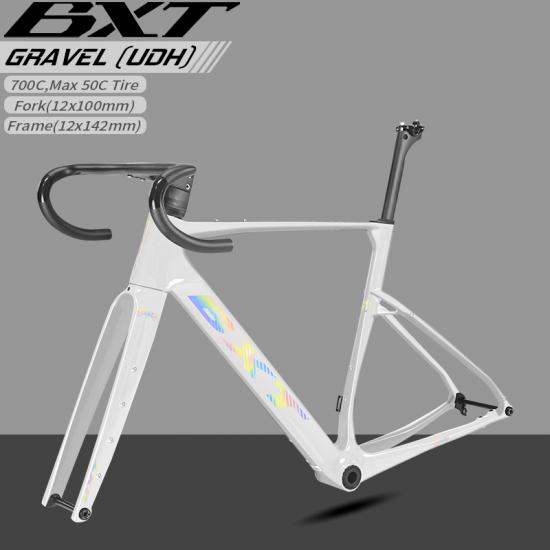

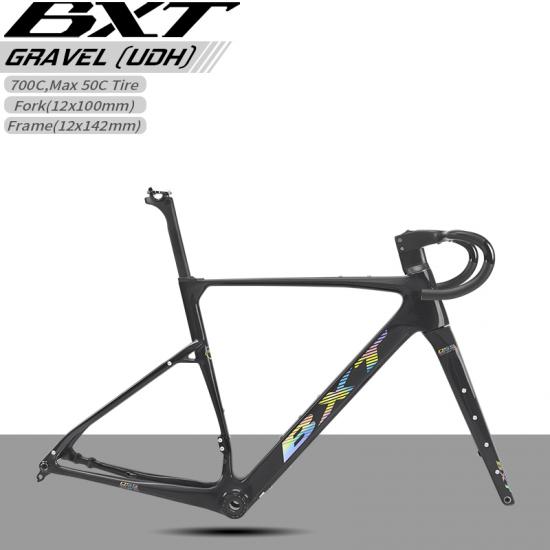

Tire: 700C,Max 50C Tire

Brake rotor:140mm

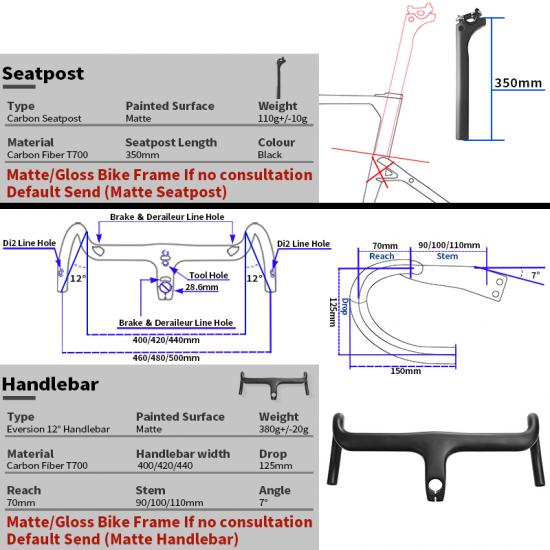

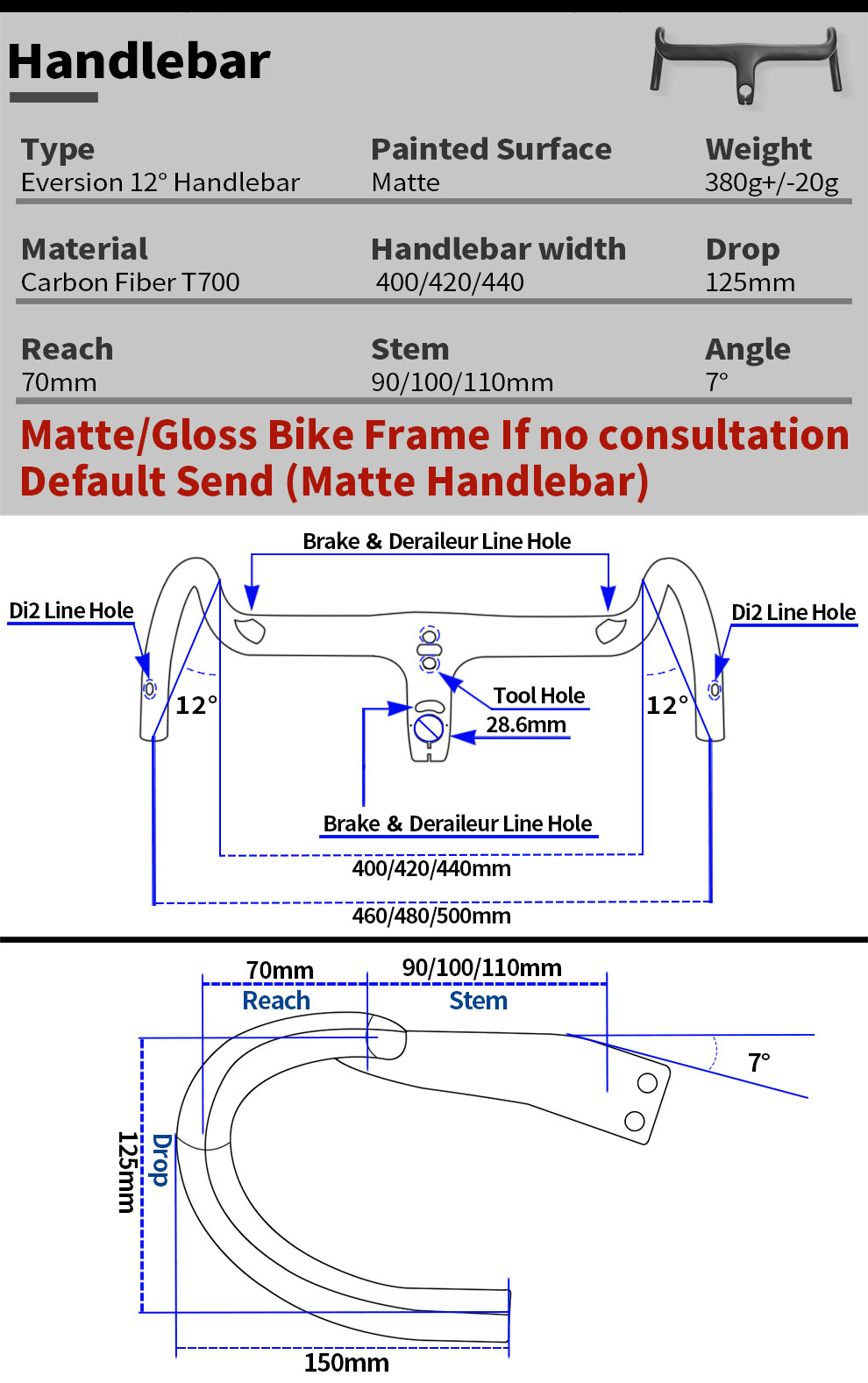

Handlebar:

Handlebar&Stem(mm): 400*80/400*90/420*80/420*90/420*100/440*90/440*100/440*110/440*120mm

HandlebarWeight: 390g+/-20g

**The default handlebar color and size are Eversion 12° Black Matte, 420*90mm.
Note: If you require other sizes,Please specify the handlebar dimensions in the order notes when submitting your order.**

Fork:

Fork Weight： 410g+/-20g

Fork Size：28.6mm

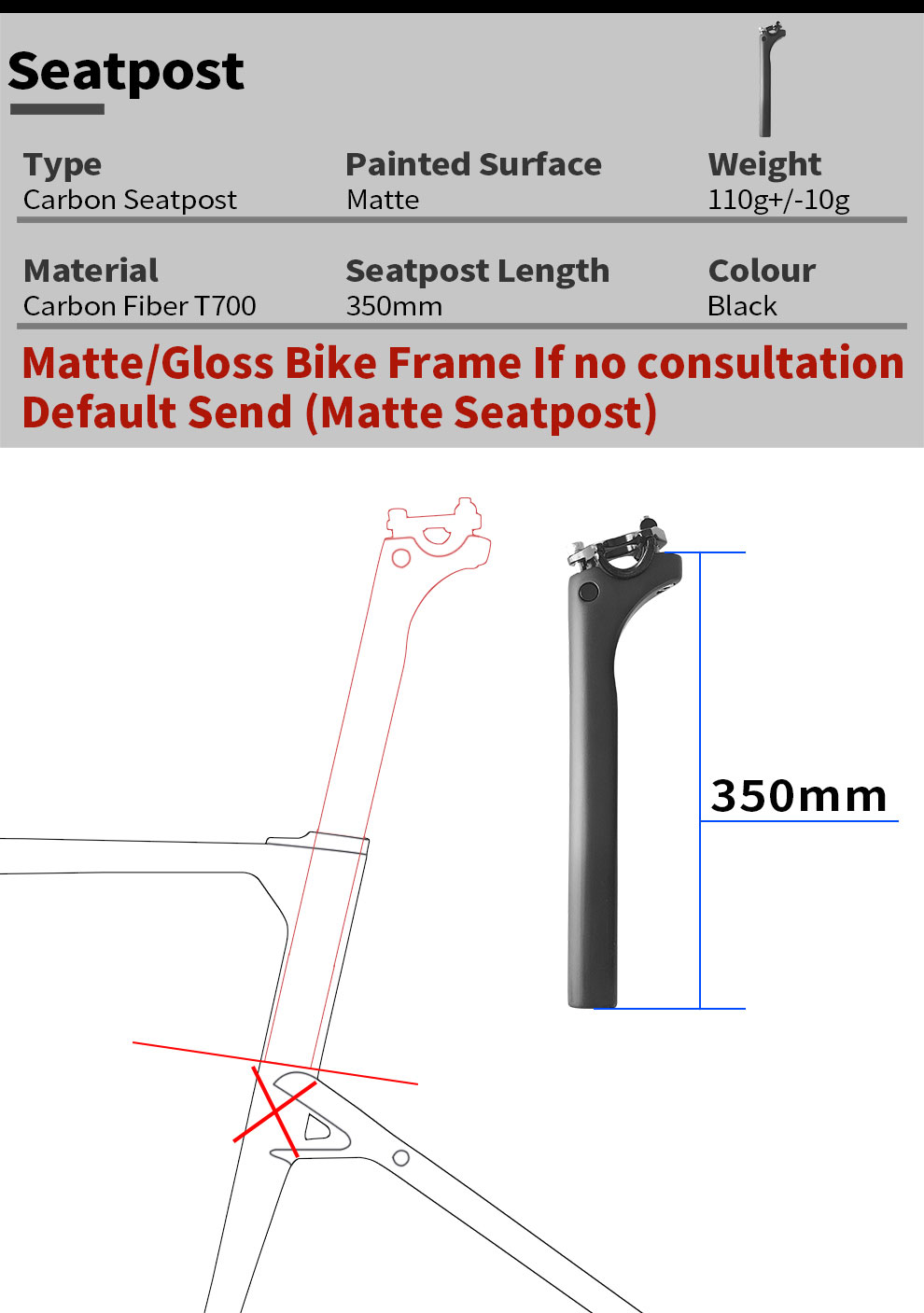

Seatpost:

Seatpost：110g+/-10g

Seatpost Length： 350mm

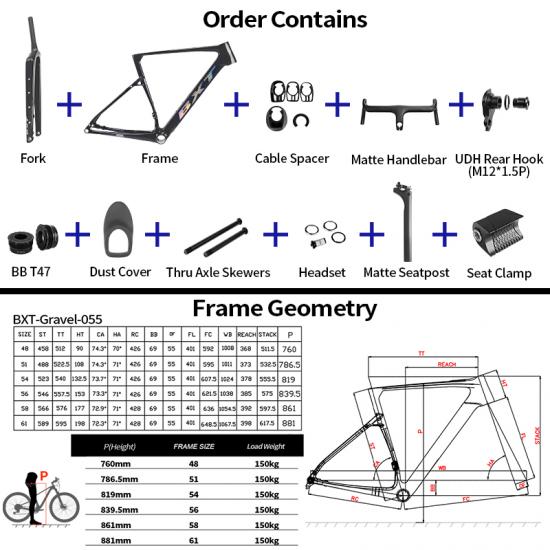

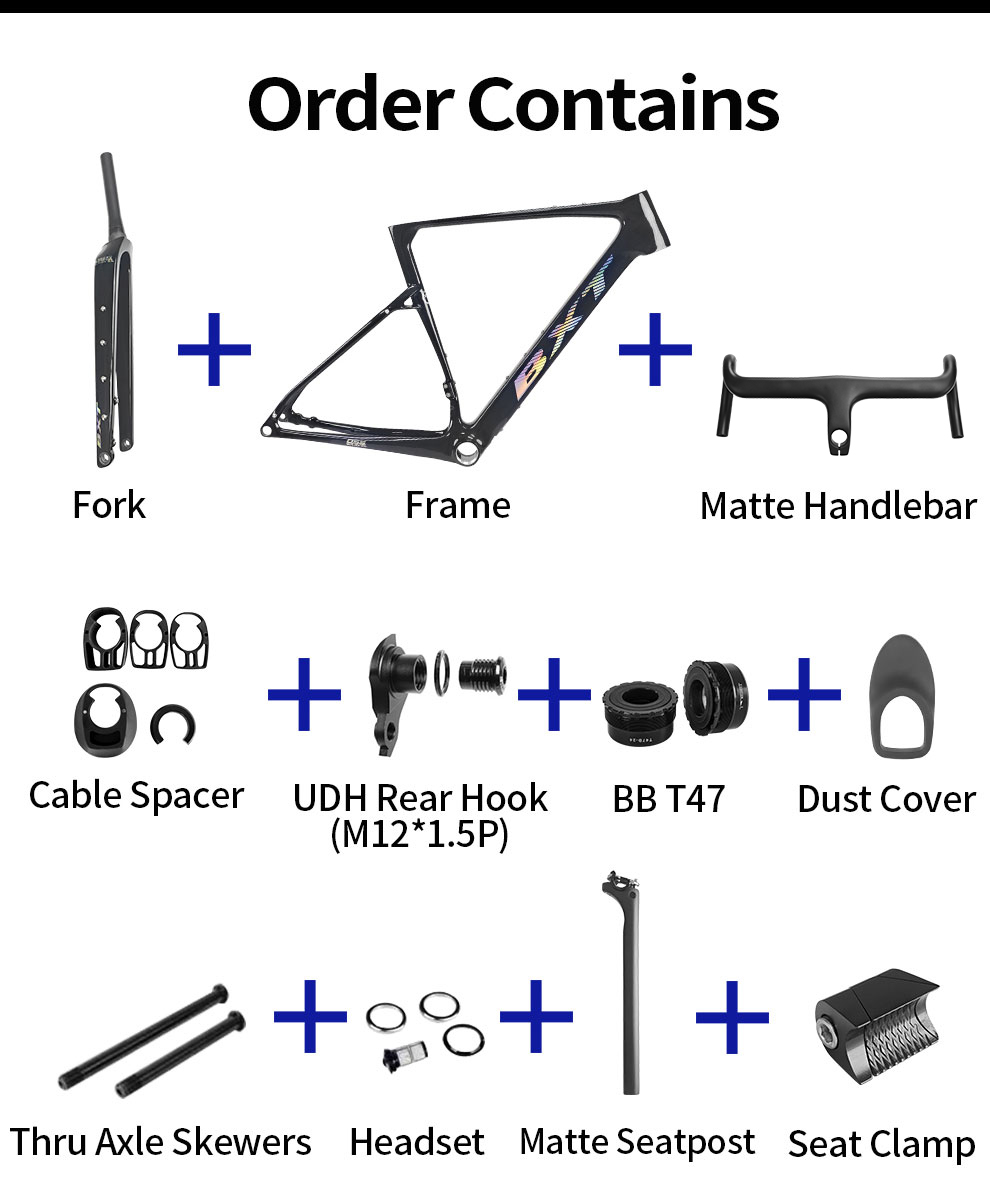

Order Contains：Frame+Fork+Matt Handlebar+Cable Spacer+UDH Rear Hook(M12*1.5P) +BB T47+Dust Cover+ Thru Axle Skewers+Headset+Matt Seatpost(sp-055)+Seat Clamp

Click the link to buy now:https://bxtbikes.com/collections/gravel-frame

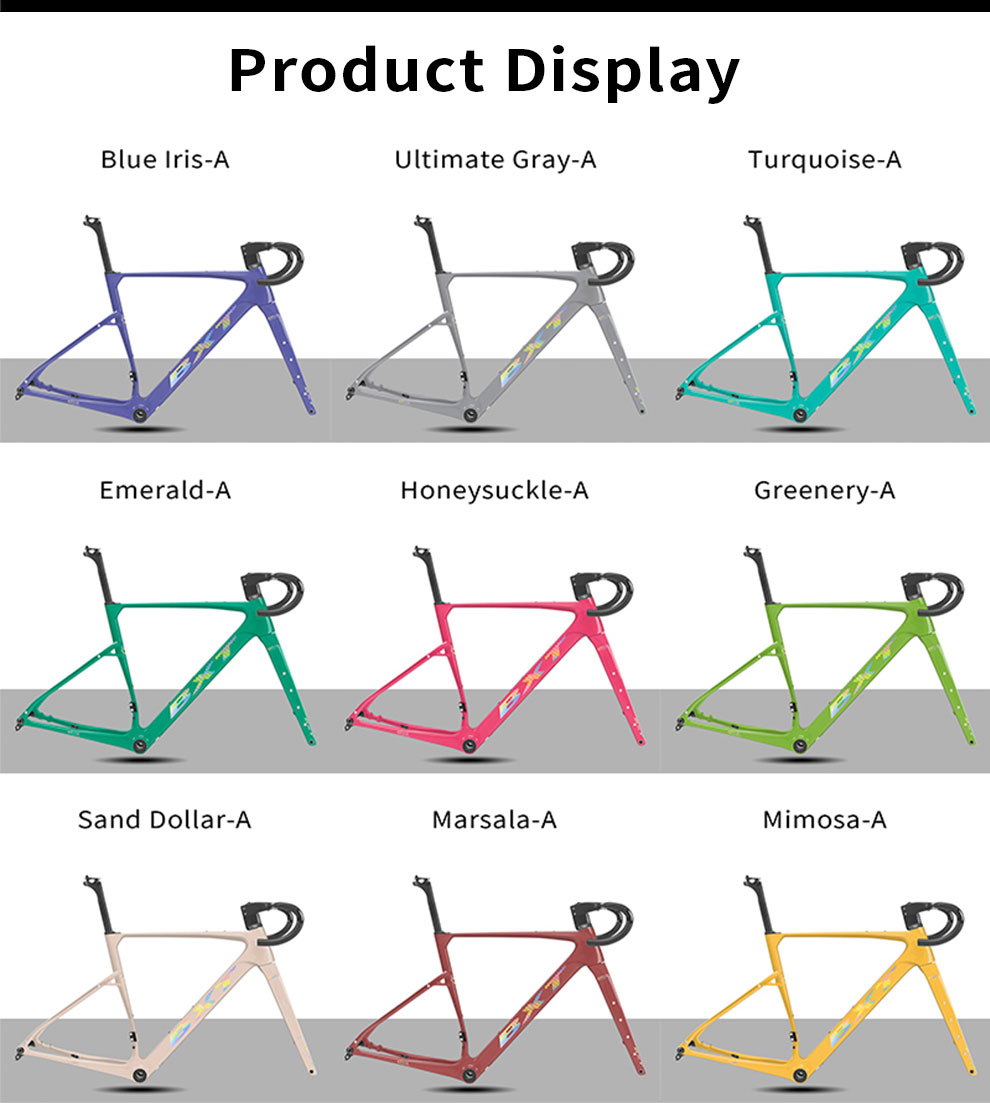

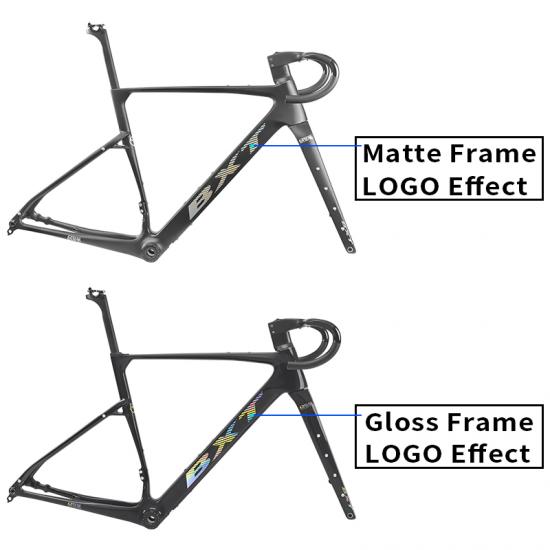

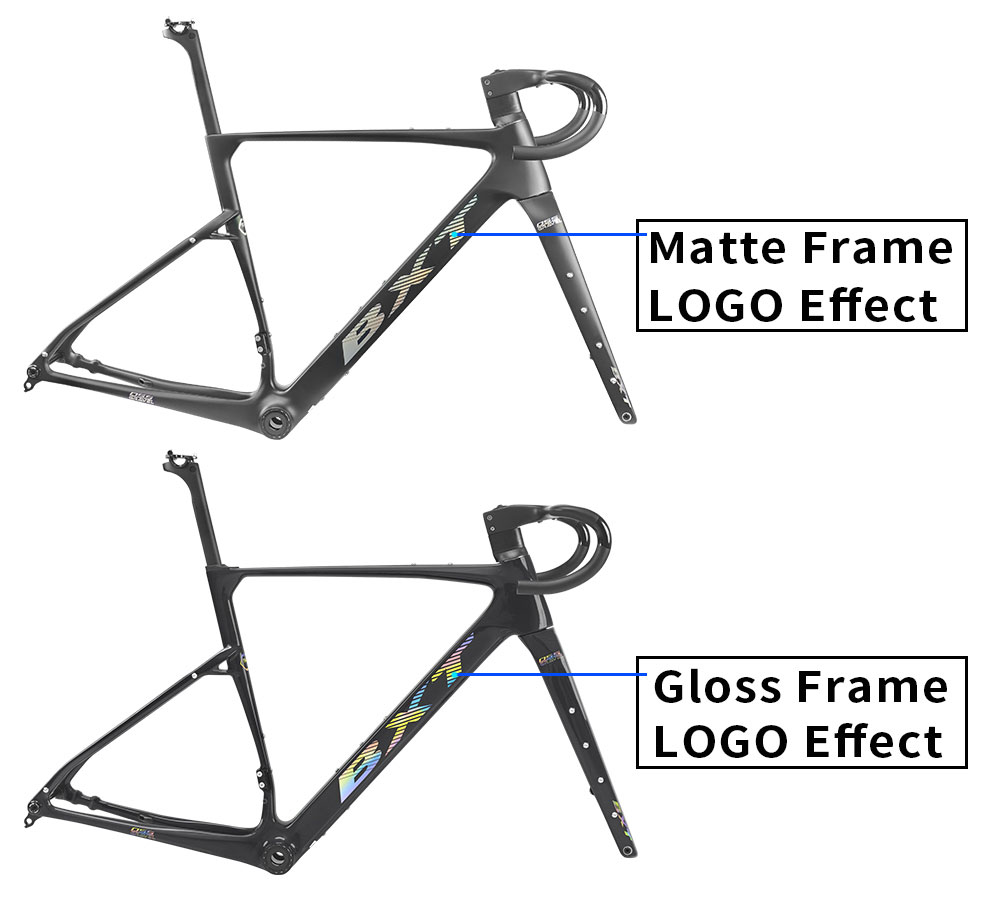

When purchasing, please note:

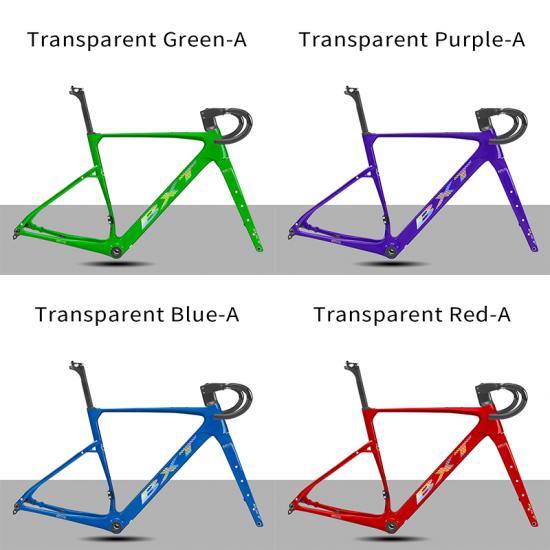

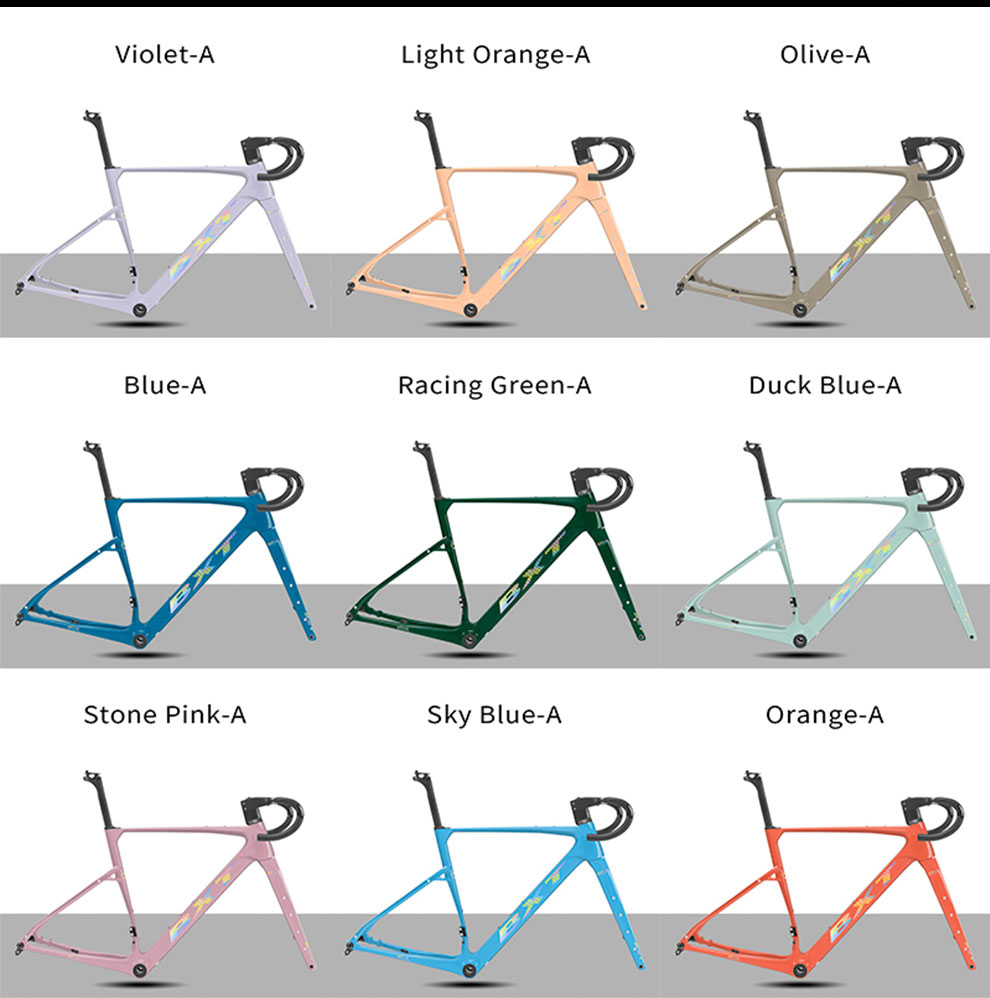

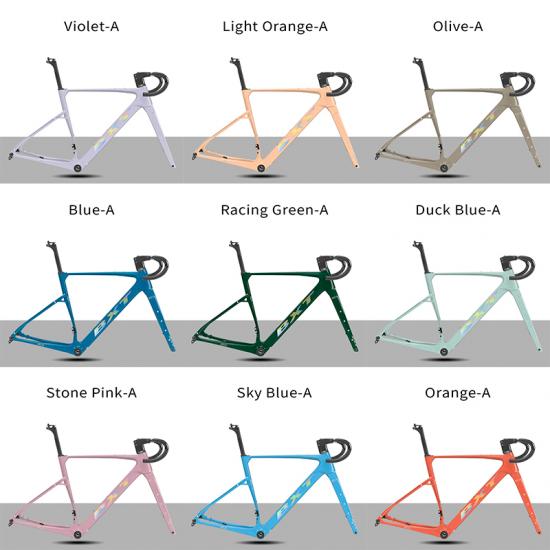

When you select Matte, the BXT logo will appear in silver.
When you select Gloss, the BXT logo will appear in vibrant colors.
(See image below for reference)
