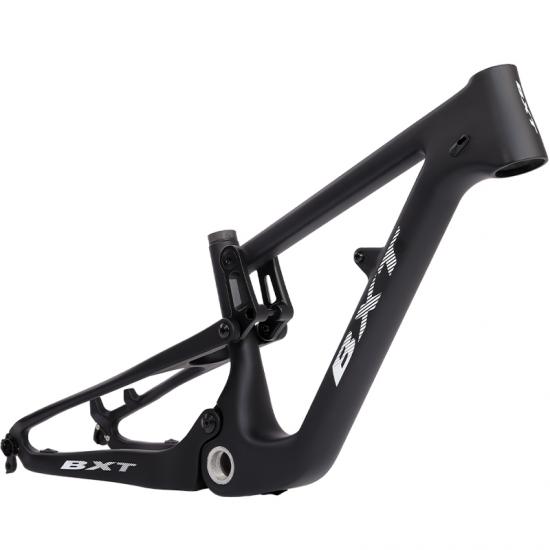

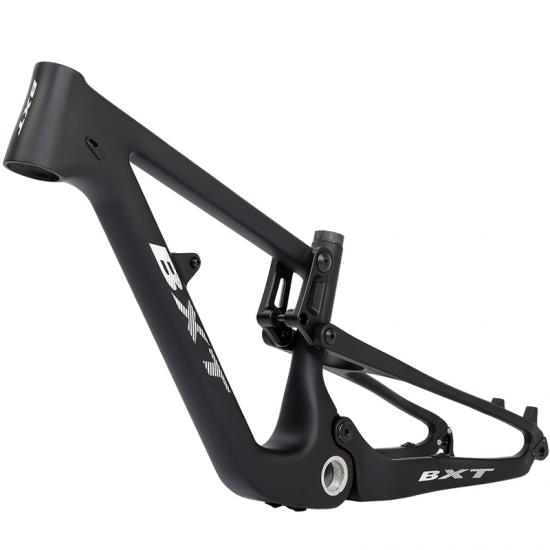

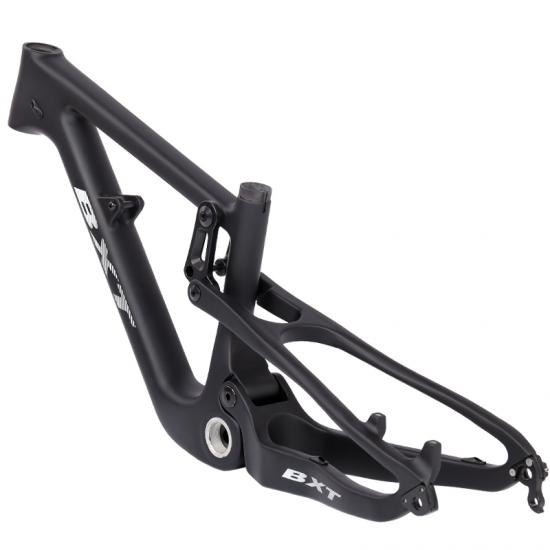

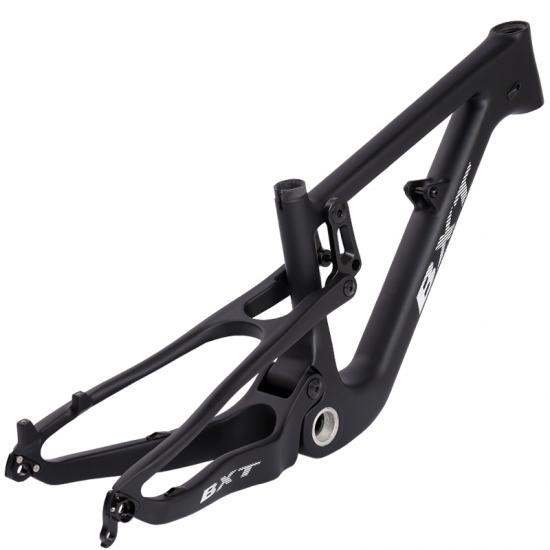

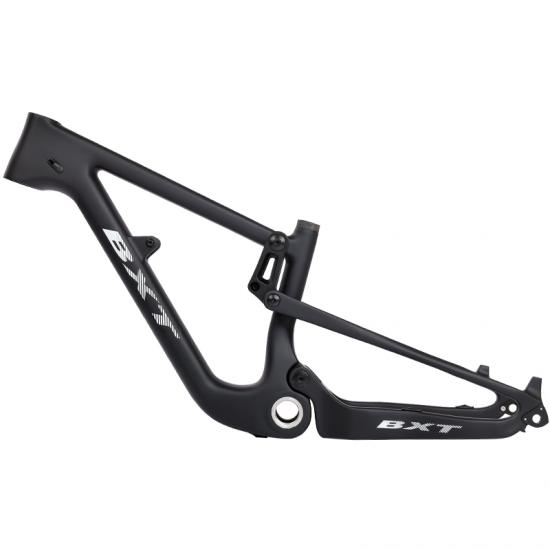

XC FullSuspension Carbon Frame 20er

High modulus carbon fiber T1000Cross Countryfull suspension frame. 80mm frame travel. BOOST 148x12mm rear wheel specifications. Can use tires up to 2.4 inches wide.

  • Item NO.:

    BXT-MTB-127
  • Payment:

    FOB/EXW
  • Product Origin:

    China
  • Lead Time:

    1-2 Week
  • Product Detail

Cross Country Carbon MTB Frame 20er

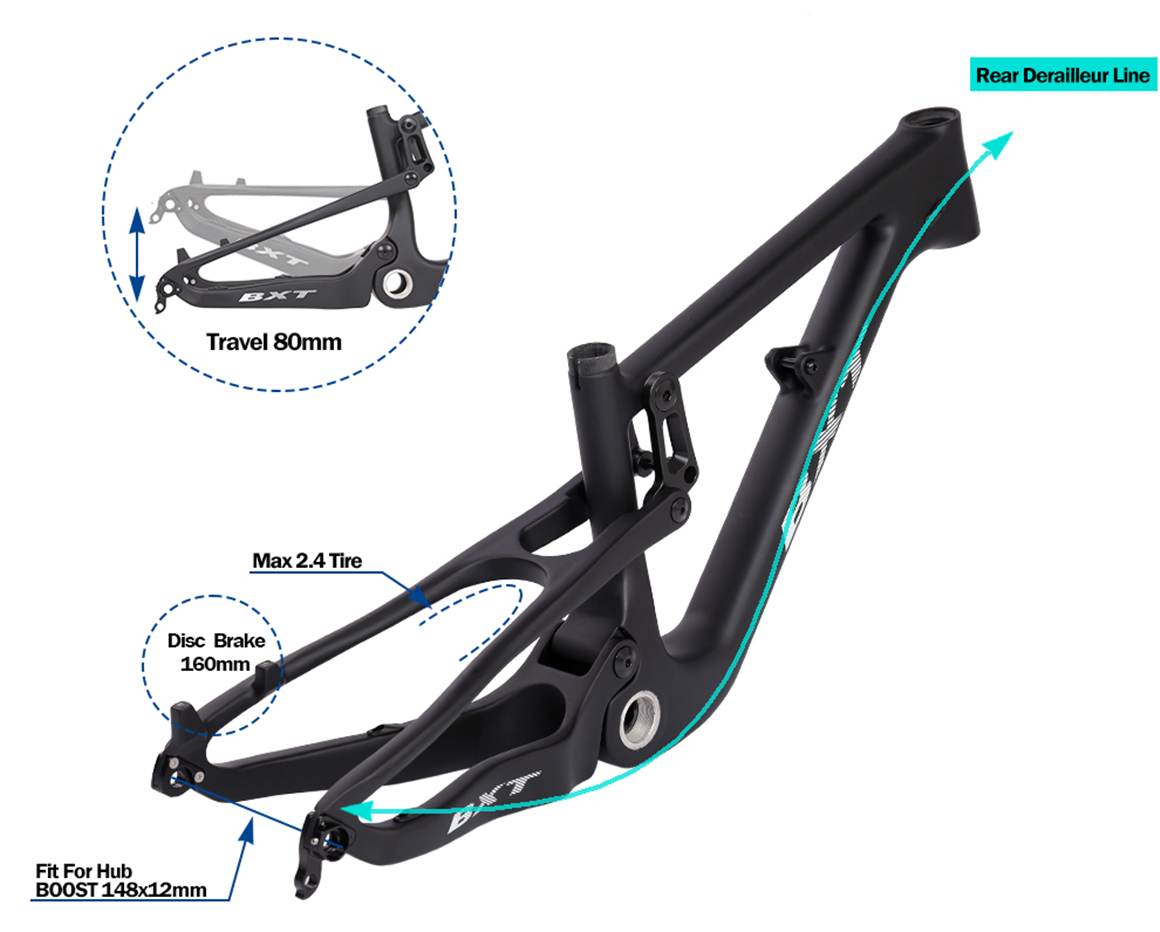

High modulus carbon fiber T1000 cross country full suspension frame. 80mm frame travel. BOOST 148x12mm rear wheel specifications. Can use tires up to 2.4 inches wide.

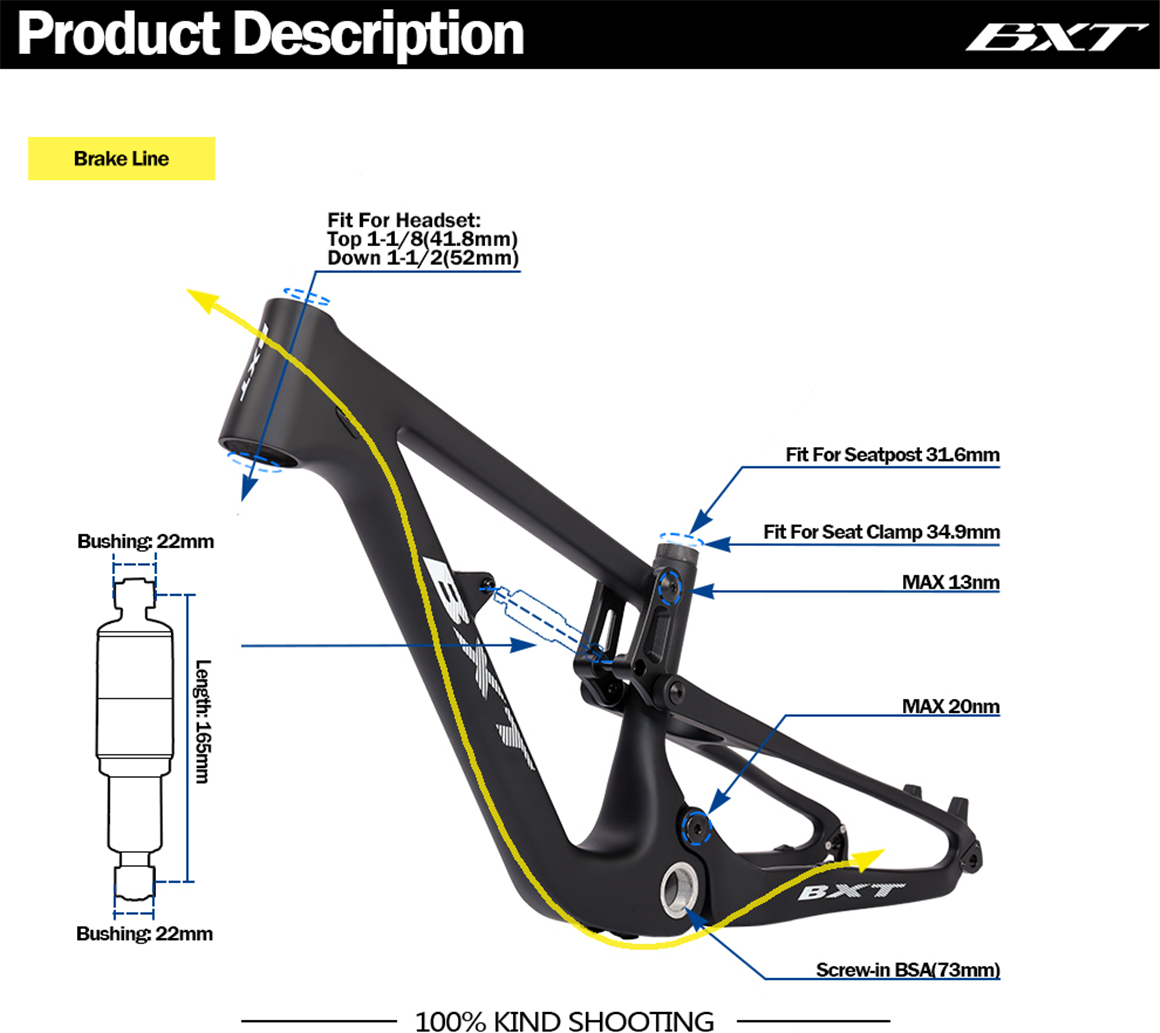

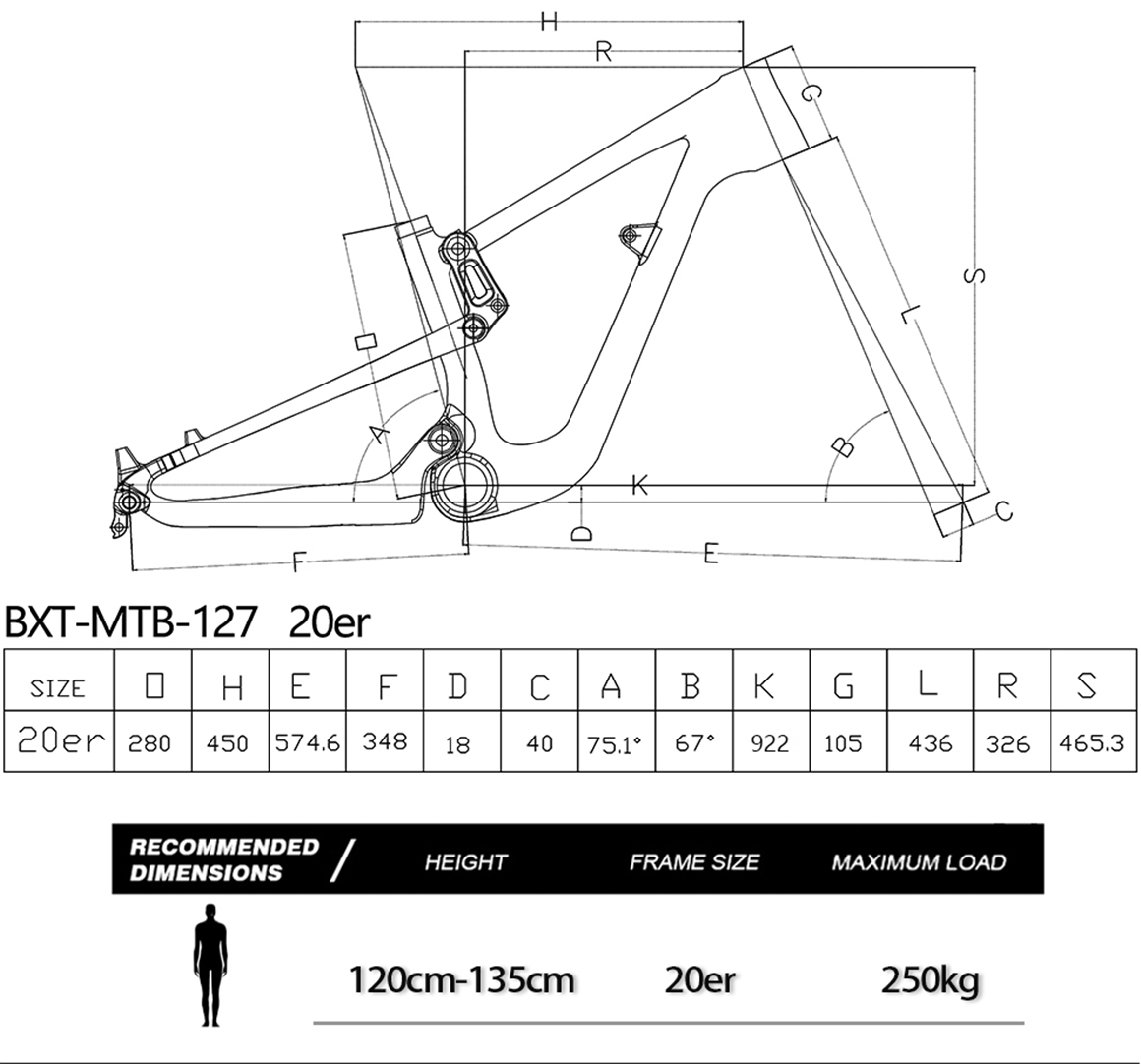

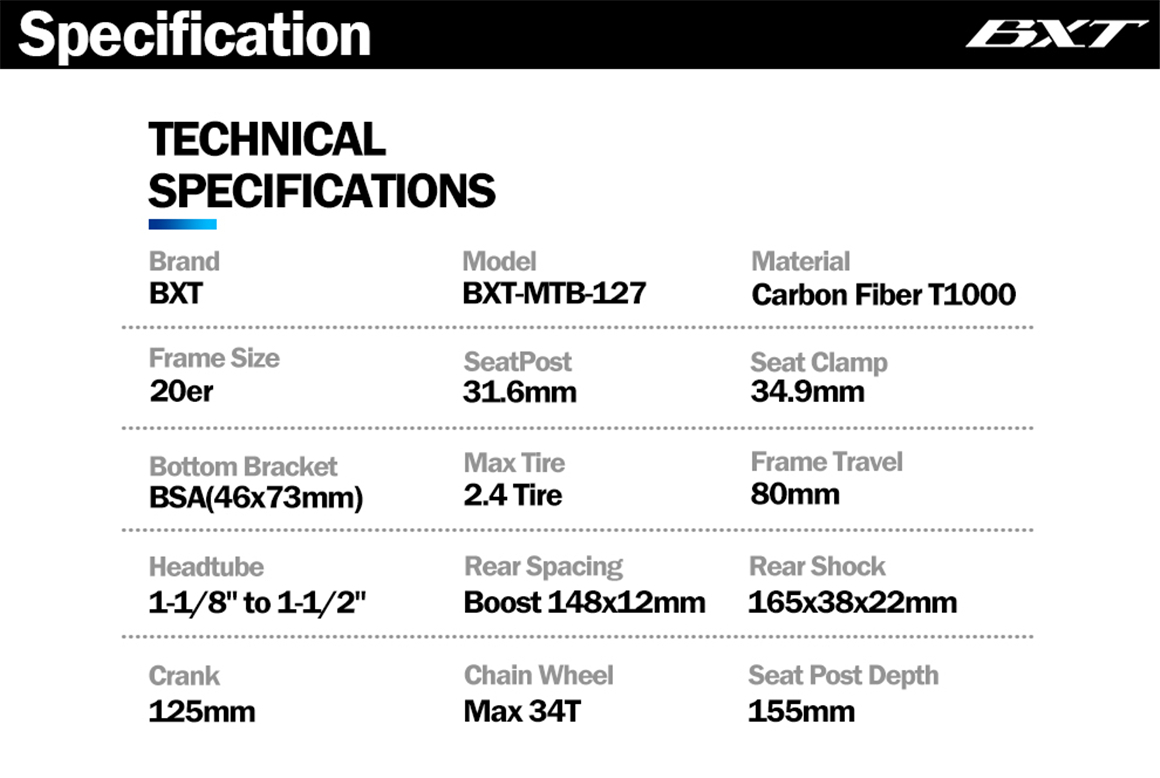

Product Description

Type
Full Carbon Suspension MTB Frame 20er
Material
T1000 Carbon Fiber
Frame Travel
80mm
Fit for Rear Shock
Length 165mm,Bushing 22mm
Fit for Seat Clamp
34.9mm
Fit for Seat Post
31.6mm
Fit for Crank
125mm
Fit for Chain Wheel
Max 34T
Seat Post Depth
155mm
Fit for Disc Brake
160mm
Fit For Bottom Bracket
Screw-in BSA(73mm)
Fit for Headset
Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm)
Fit for Tire
20er.Max 2.4Tire
Rear Spacing Specification
Boost 148x12mm
Suitable Height
120cm-135cm
Max load
250kg
Recommend Fork Travel
80-120mm
Brake,Derailleur Cable
Frame Internal


Full Suspension Frame 20 inch CarbonBoost Full Carbon Suspension Frame 20inch20er Teenager Full Suspension Carbon FrameChildren Carbon MTB Full Suspension Frame 20 inchFrame Travel 80mm Suspension MTB
