BXT NEW 2026 Carbon Disc Road Bike Frameset XXXS/XXS/XS/S/M/L/XL

Item NO.:
BXT-Road-275
Payment:
FOB/EXW
Product Origin:
China
Lead Time:
2-3 Week
Order(MOQ):
1

Product Detail

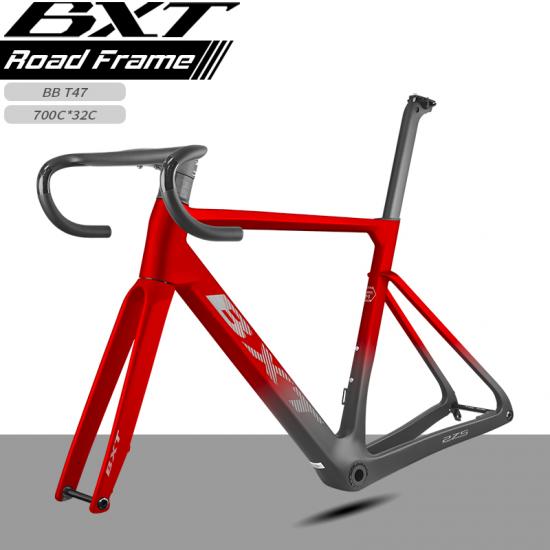

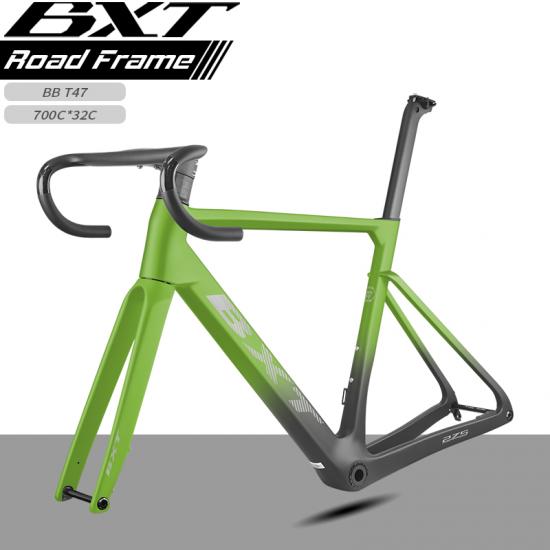

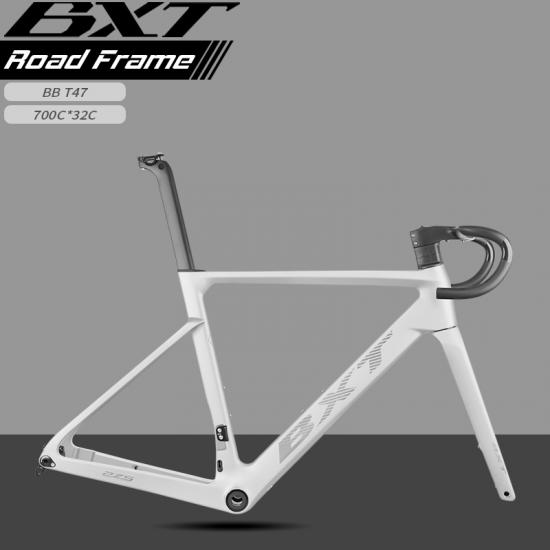

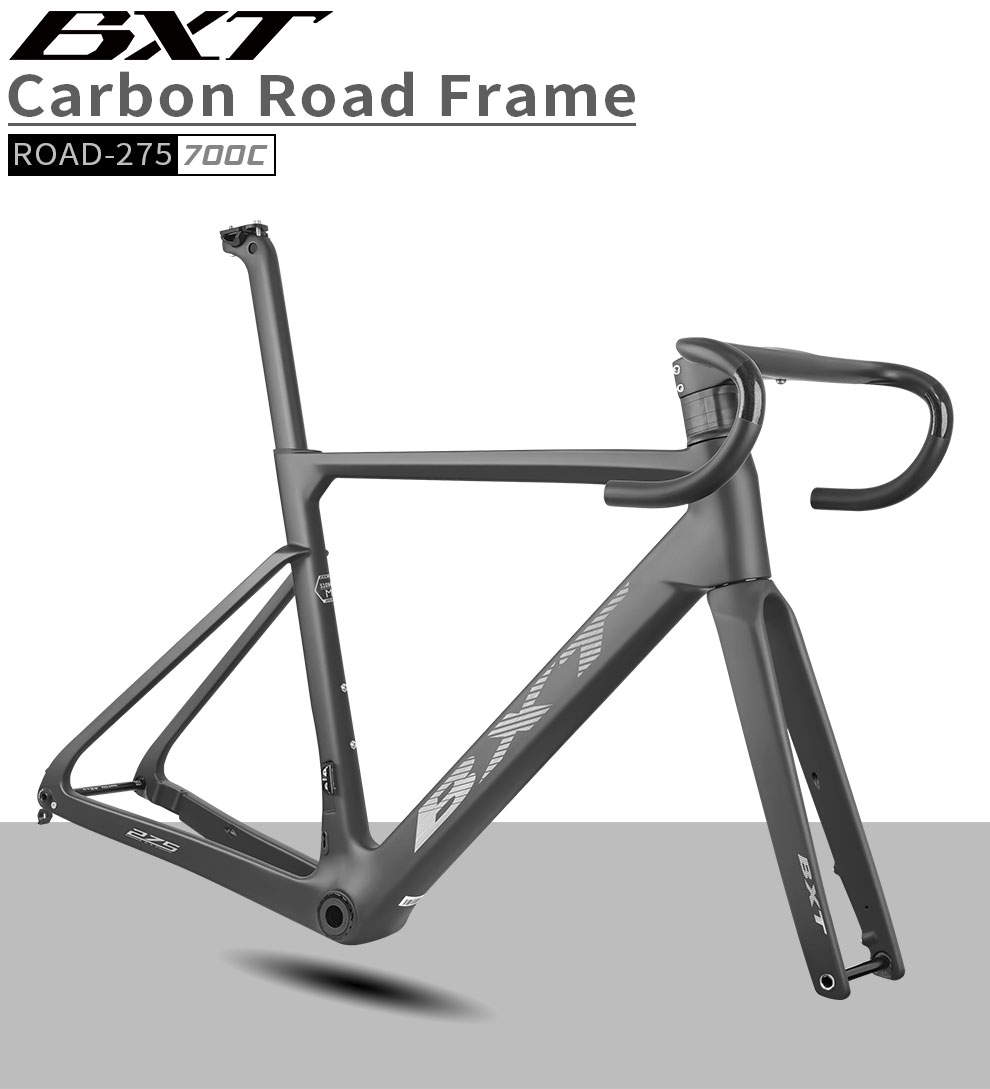

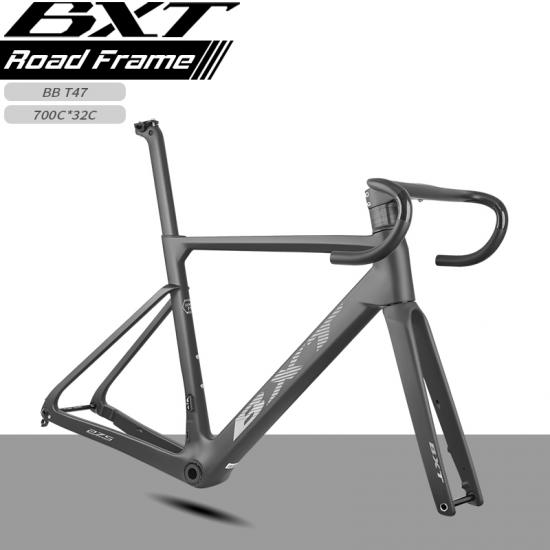

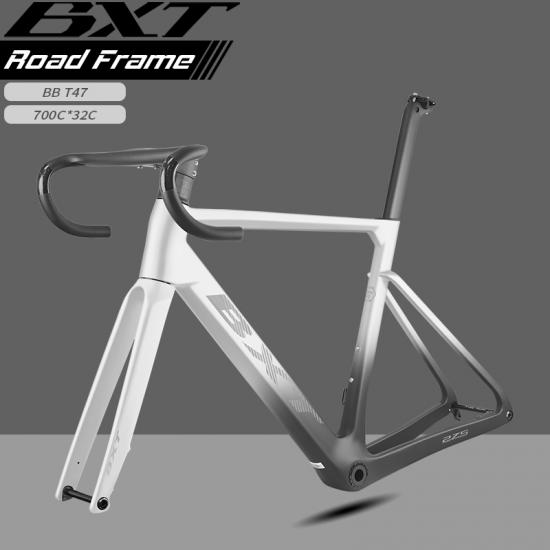

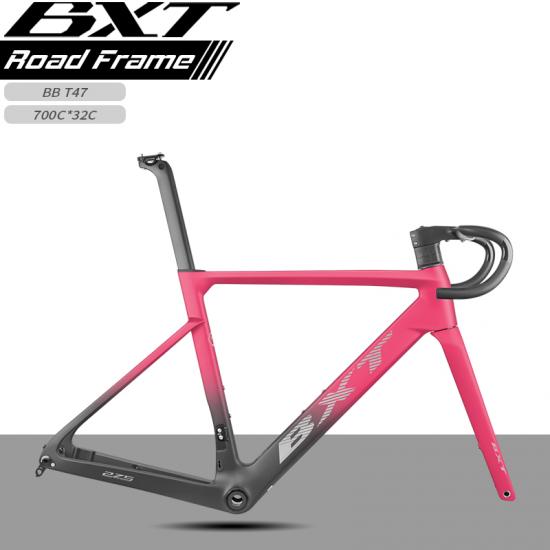

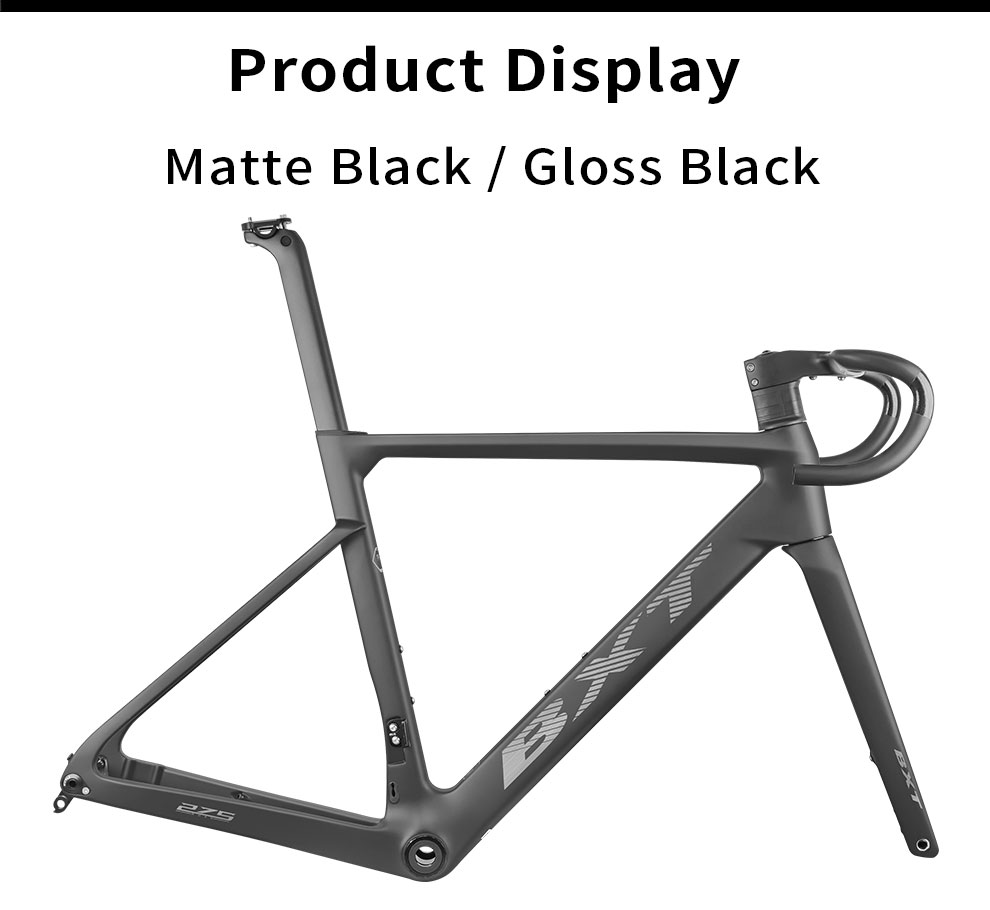

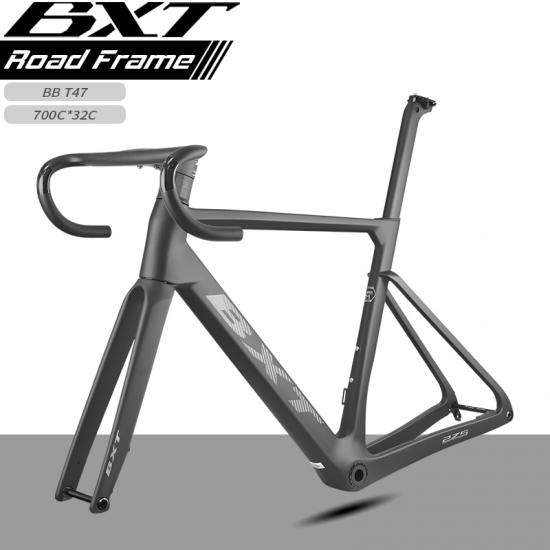

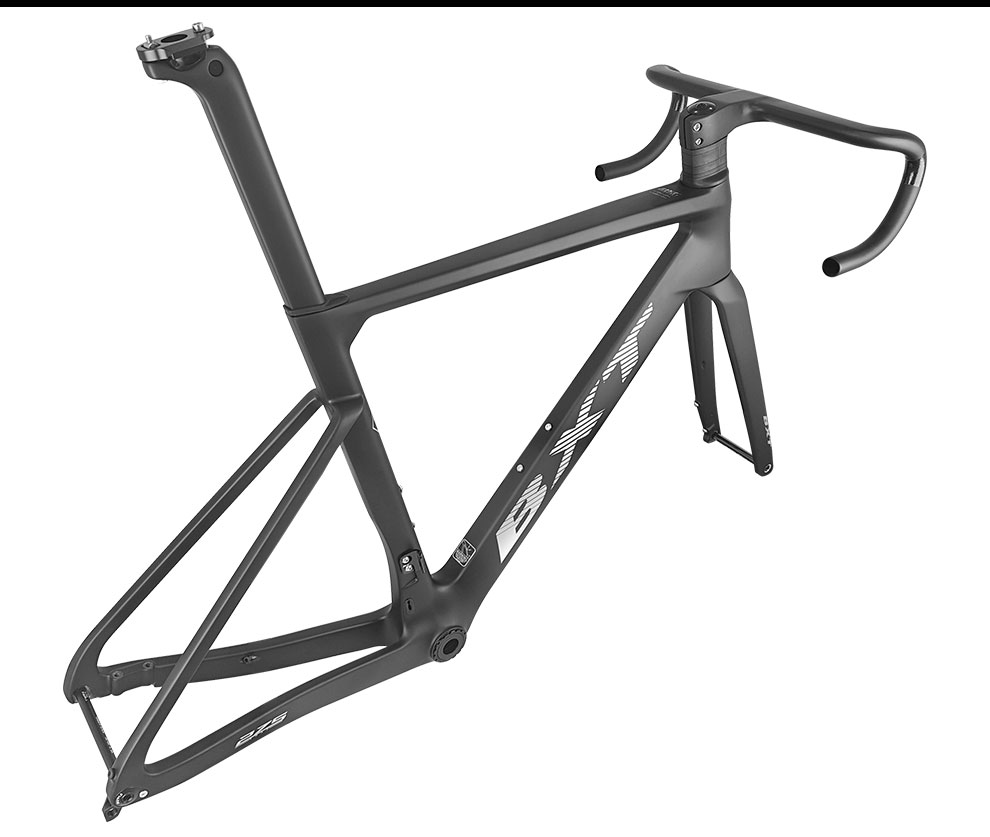

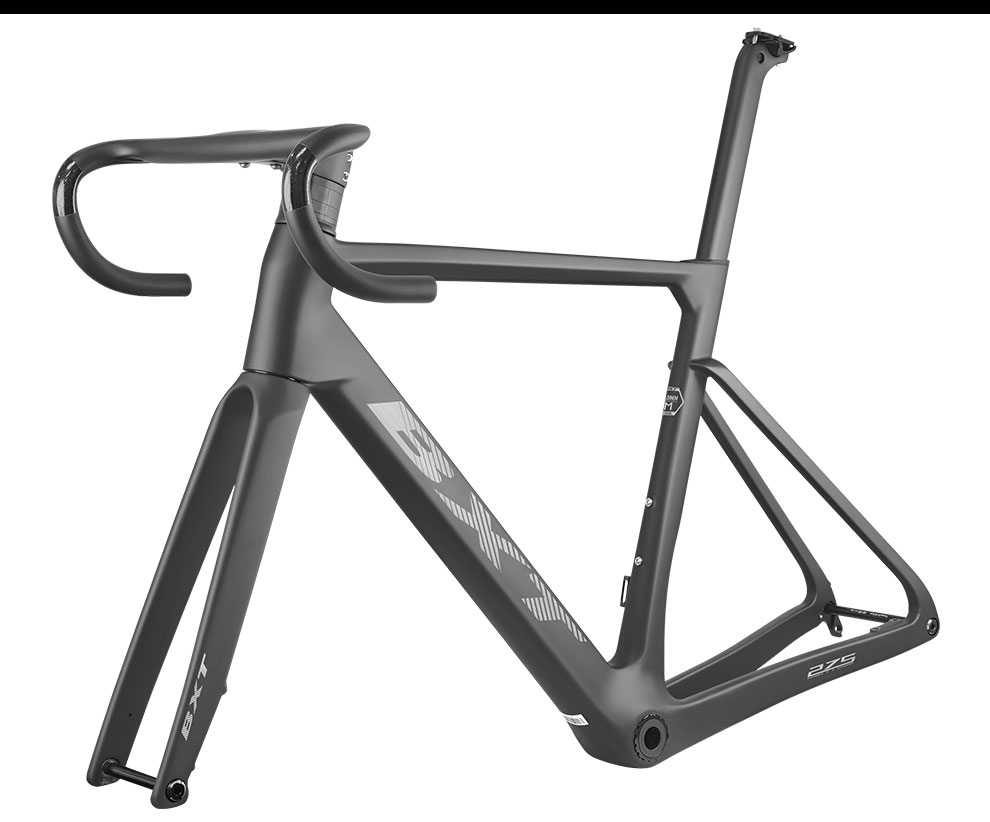

Carbon Racing Road Bike Frame

The all-new BXT-ROAD-275 Disc Road Bike Frame gives you the lightweight performance. Advanced-grade composite that boasts an outstanding stiff-to-weight ratio, along with new aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions.

Hello, friend,

Welcome to the BXT official store. I am Jun, the store manager.
If you like this frameset, you can click the link to purchase it directly: https://bxtbikes.com/products/bxt-155-evo-new-carbon-disc-road-bike-frame-1050g-super-light-road-bicycle-carbon-frame-fully-hidden-%E5%89%AF%E6%9C%AC

If you have any questions, you can add me on WhatsApp: +86 13428991904

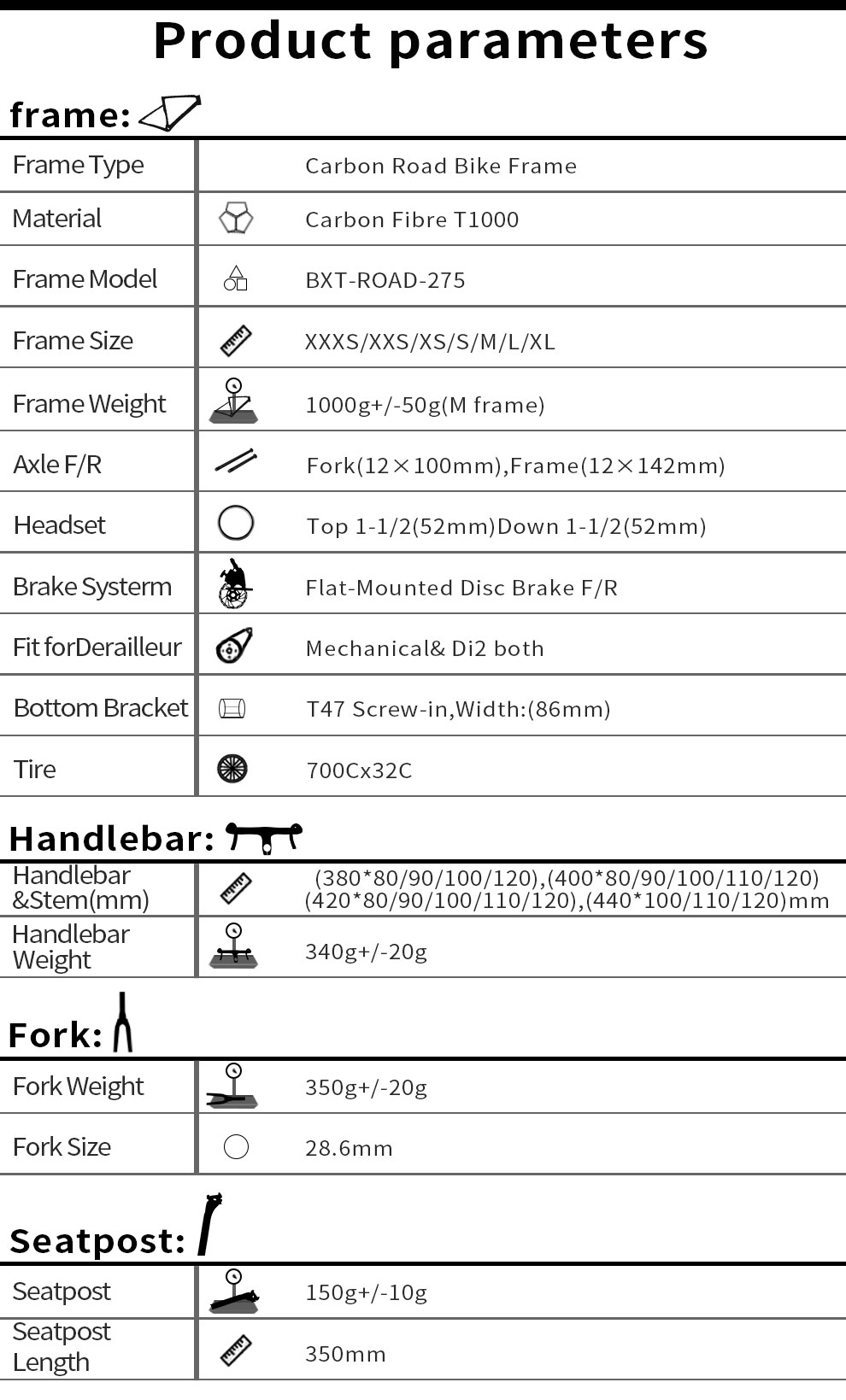

Product Information

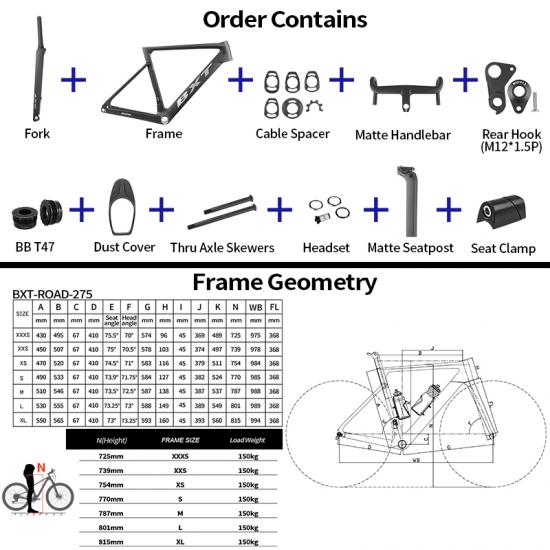

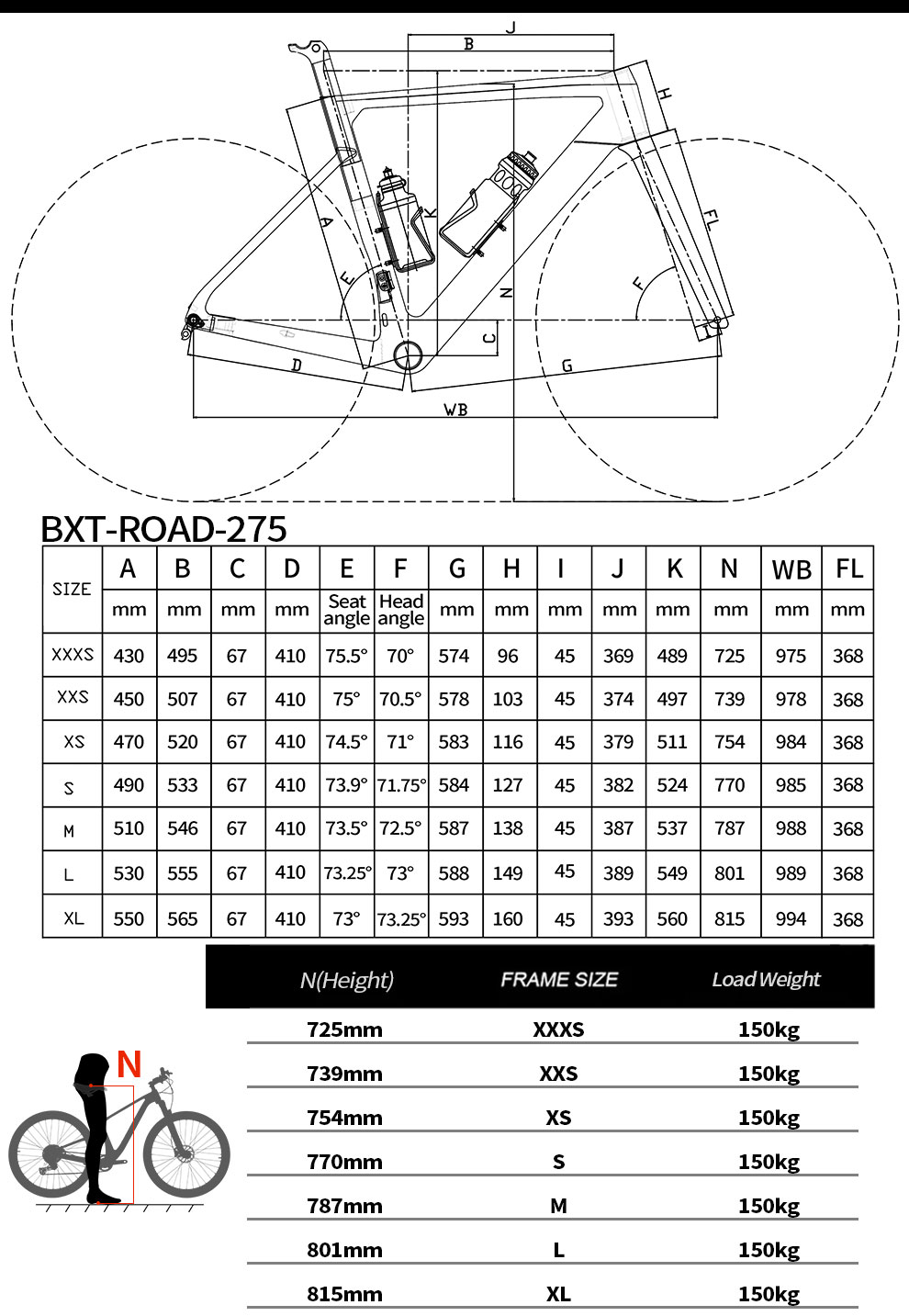

Product parameters
Frame Type:Carbon Road Bike Frame
Material:Carbon Fibre T1000
Frame Model:BXT-ROAD-275
Frame Size:XXXS/XXS/XS/S/M/L/XL
Frame Weight:1000g+/-50g(M frame)

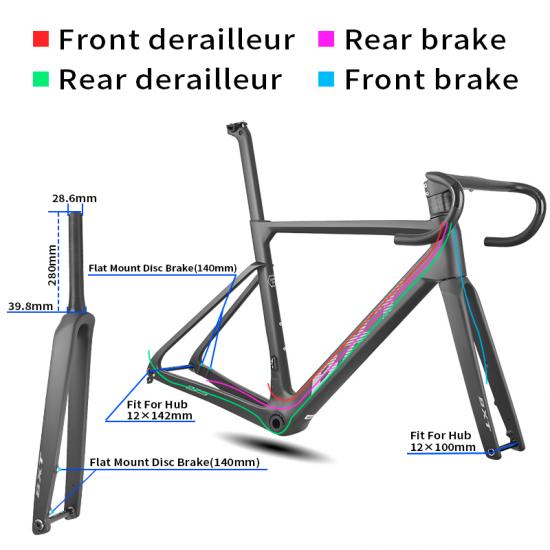

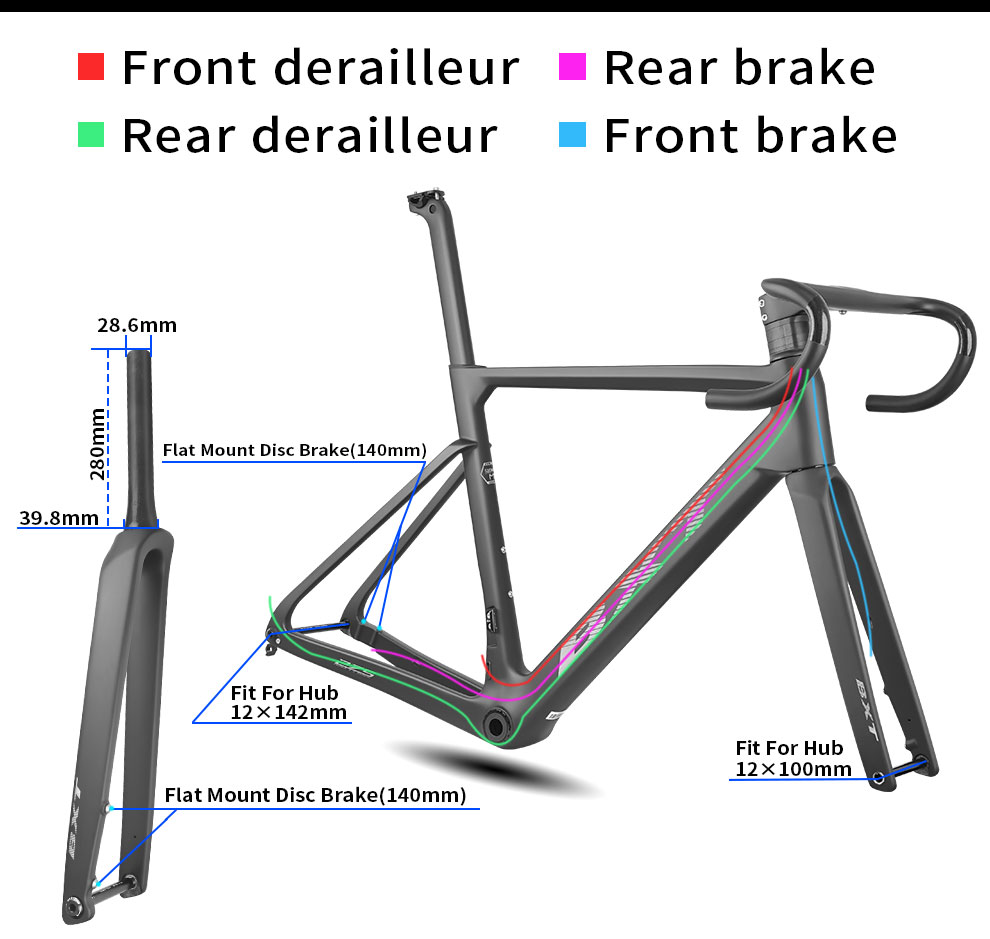

Axle F/R:Fork(12x100mm),Frame(12x142mm)

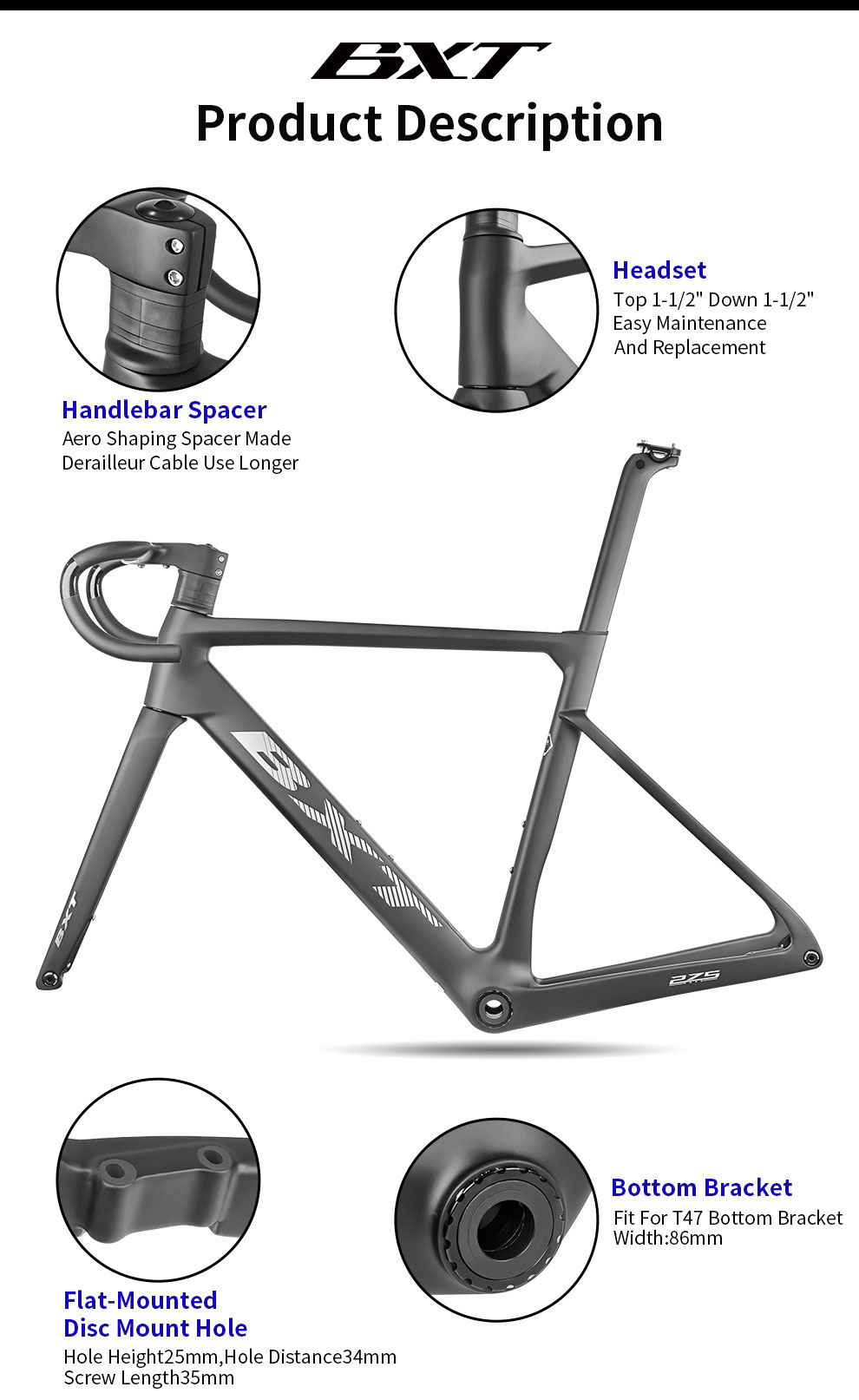

Headset:Top 1-1/2(52mm)Down 1-1/2(52mm)
Brake Systerm:Flat-ounted Disc Brake F/R
Fit forDerailleur:Mechanical& Di2 both
Bottom Bracket:T47 Screw-in,Width:(86mm)
Tire:700Cx32C

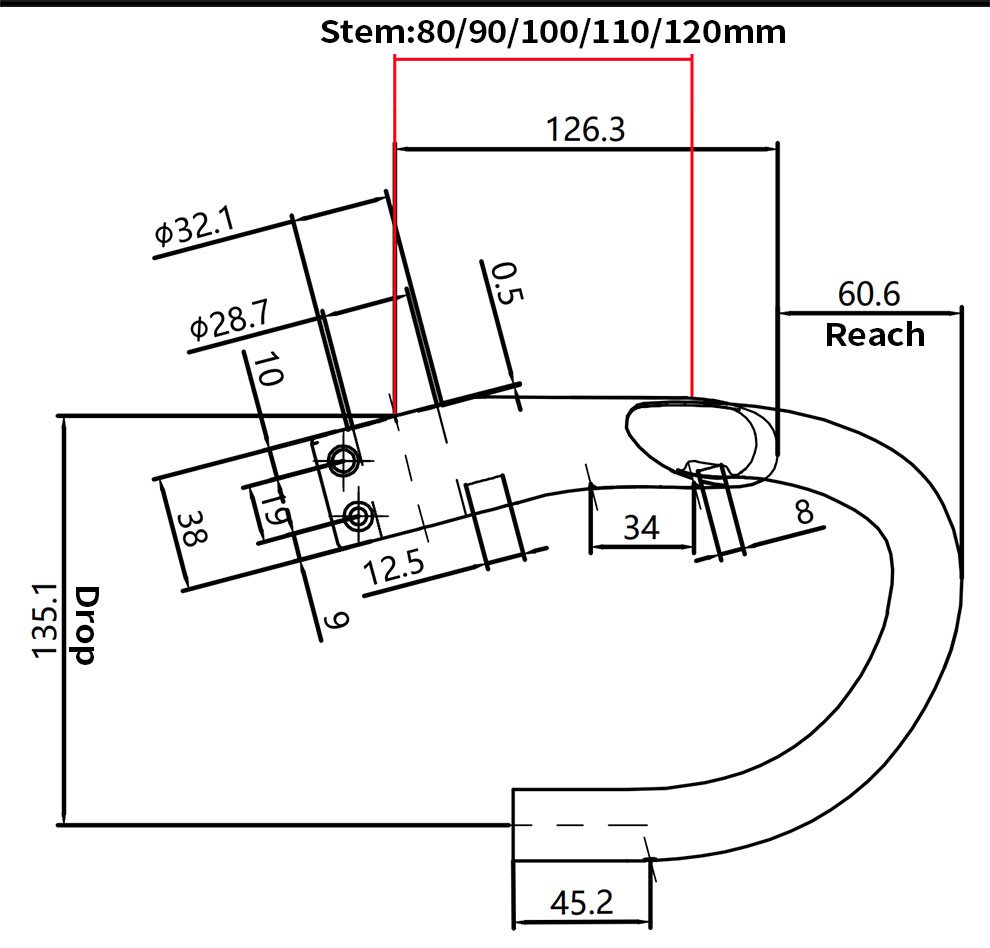

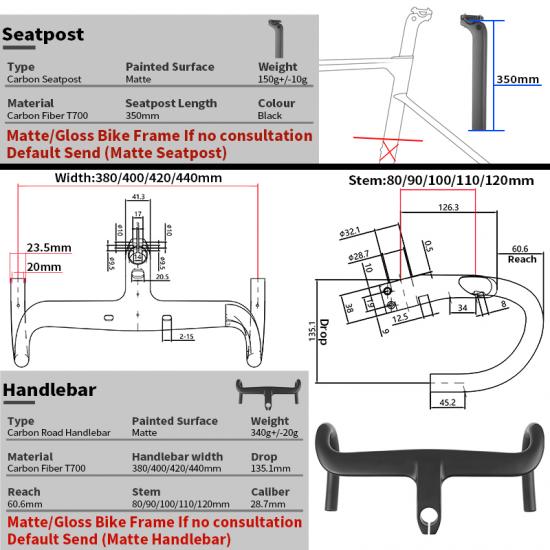

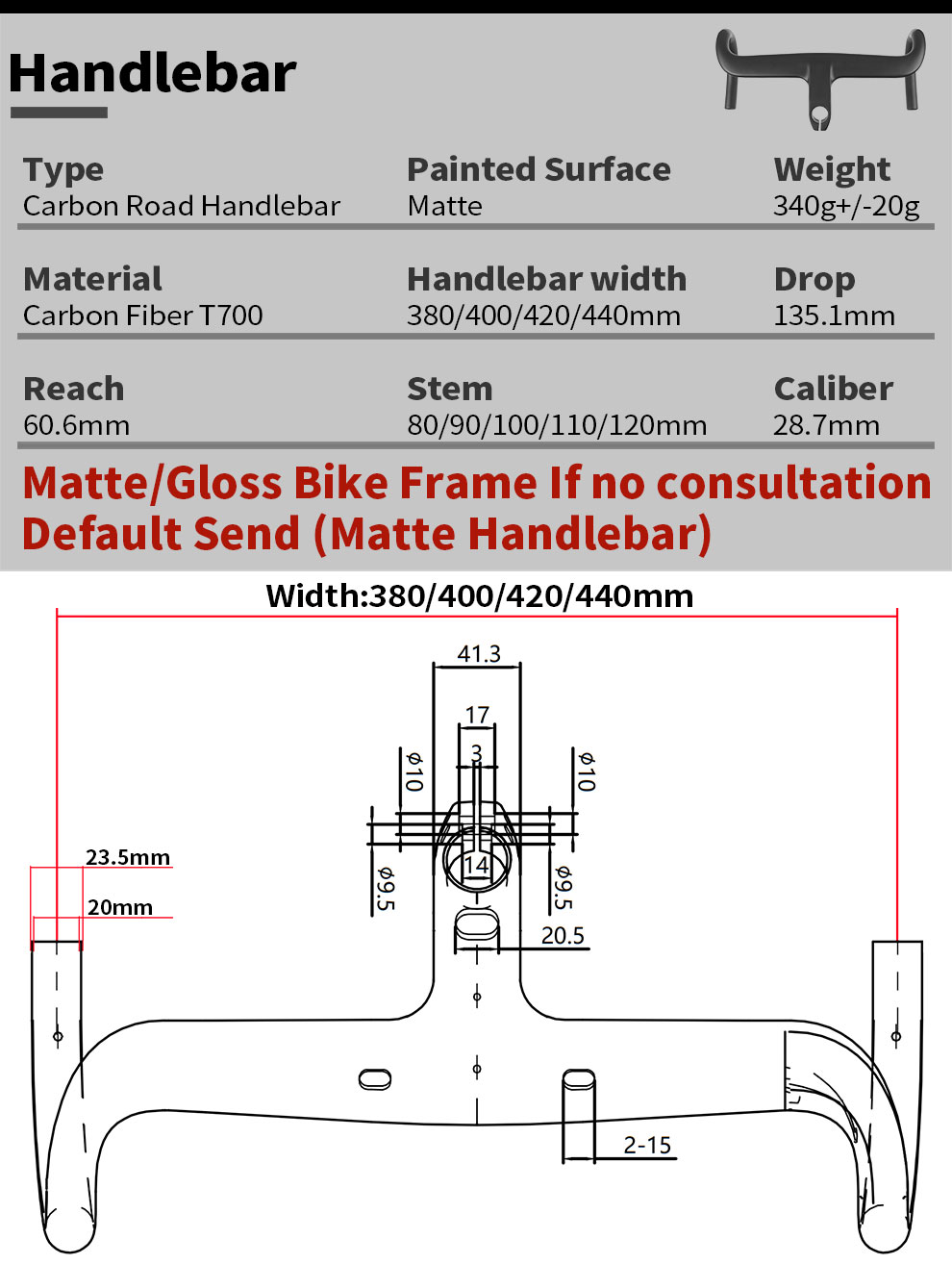

Handlebar&Stem(mm):(380*80/90/100/120),(400*80/90/100/110/120)(420*80/90/100/110/120),(440*100/110/120)mm
HandlebarWeight：340g+/-20g
Fork Weight：350g+/-20g
Fork Size：28.6mm

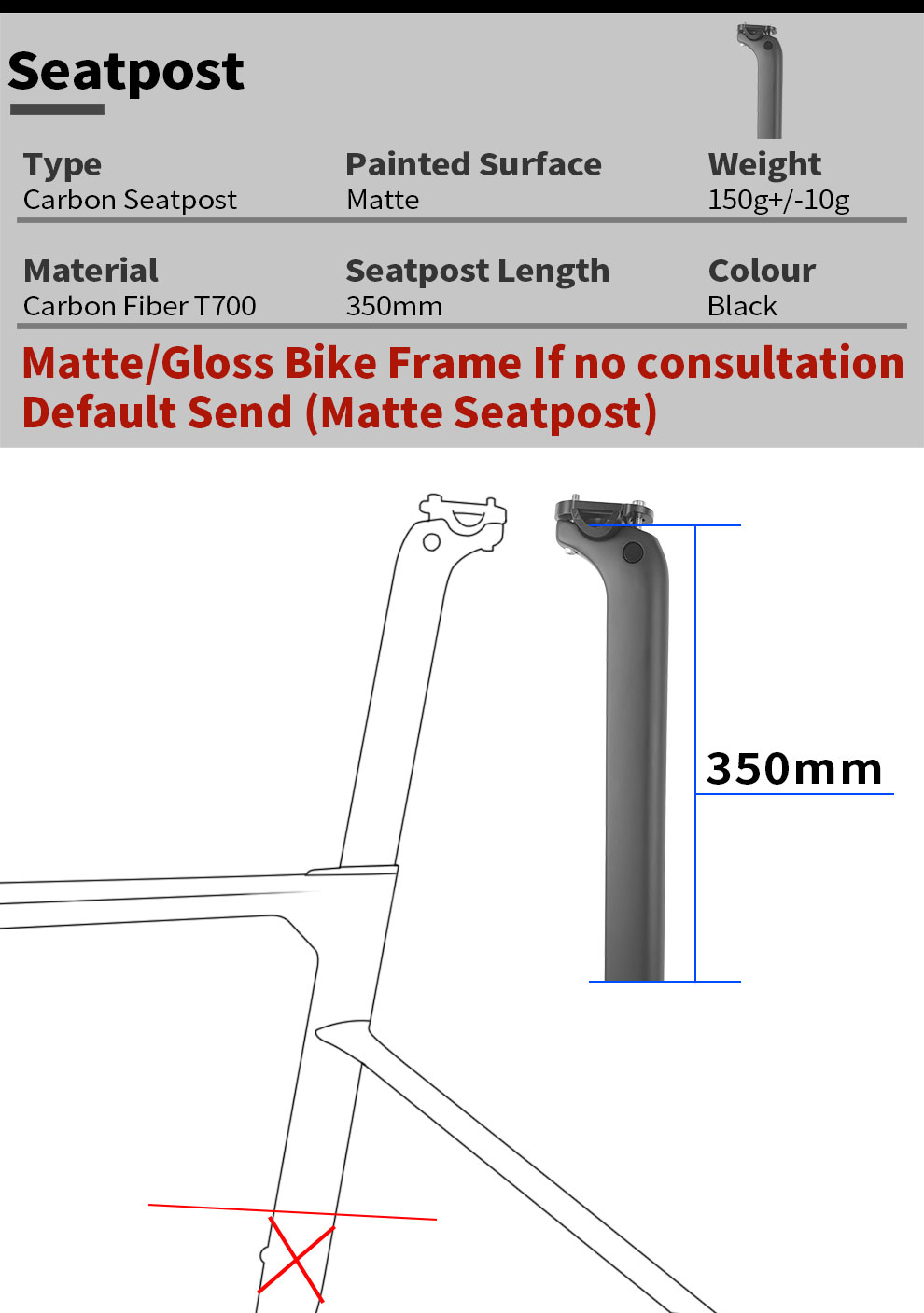

Seatpost：150g+/-10g

Seatpost Length：350mm
