Carbon Electric Full Suspension Frame

Carbon Bike Frame /Full Suspension Frame 29er/Ebike
Type: E-MTB Carbon Full Suspension Frame 29er;
Material: T1000 Carbon Fiber;
Frame Travel: 150mm;
Fit for Rear Shock: 210*55*24mm;

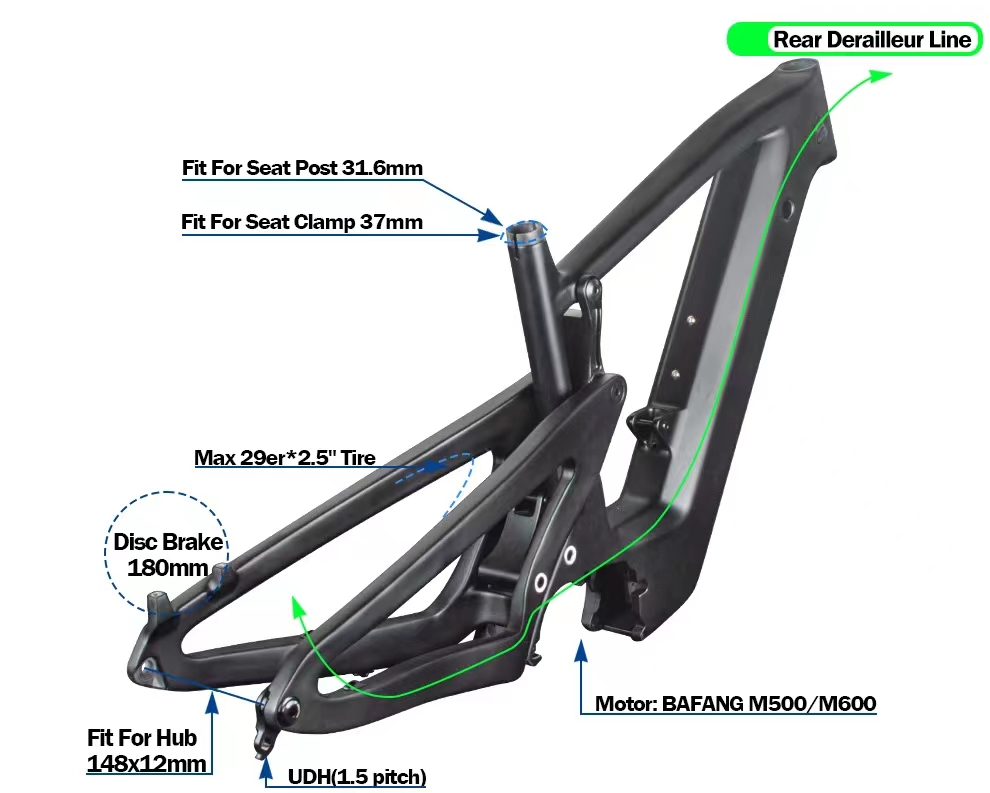

Fit for Seat Clamp: 37mm;
Fit for Seat Post: 31.6mm;
Fit for Disc Brake: 180mm;
Fit for Motor: BAFANG M500/M600;

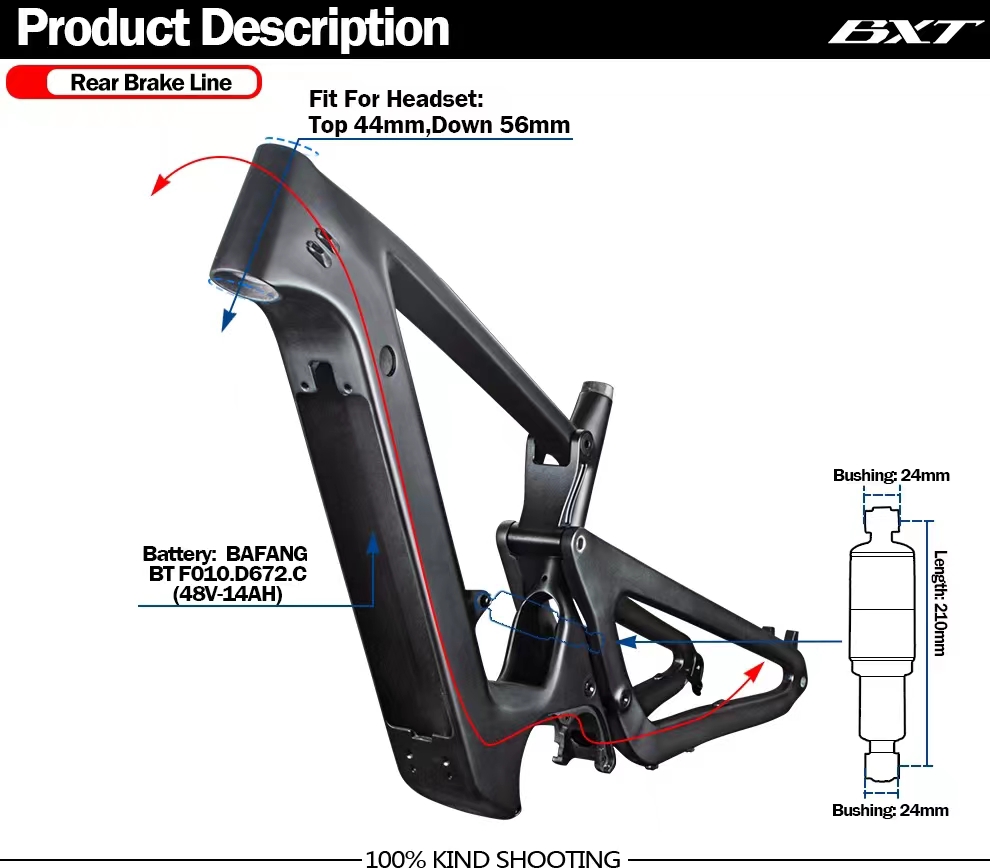

Fit for Battery: BAFANG BT F010.D672.C(48V-14AH);
Fit for Headset: Top 44mm, Down 56mm;
Fit for Tire: 29er.Max 2.5 Tire;
Rear Spacing Specification: Boost 148x12mm;
Rear Hook: UDH(1.5 pitch);
Max load: 150kg;
Order Contains: Frame+Thru Axle Quick+Seat Clamp+Rear Hook;


Our Online Shopwww.bxtbikes.com

  • Item NO.:

    BXT-EMTB-217
  • Payment:

    FOB/EXW
  • Market Price:

    $1599
  • price:

    $789
  • Price Range:

    769 - 750/$740
  • Price Range:

    1 - 5/$10
  • Product Origin:

    China
  • Color:

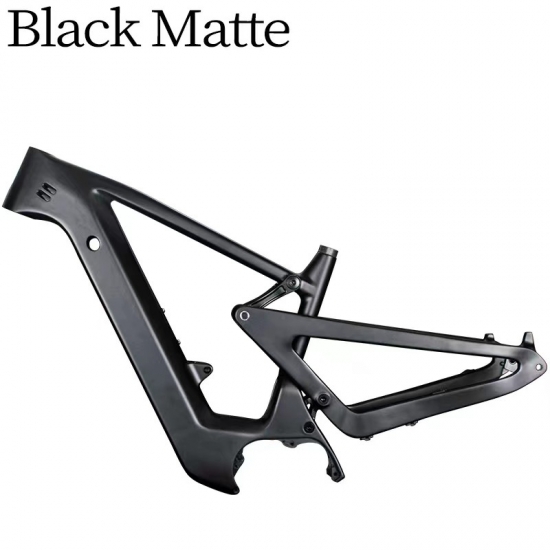

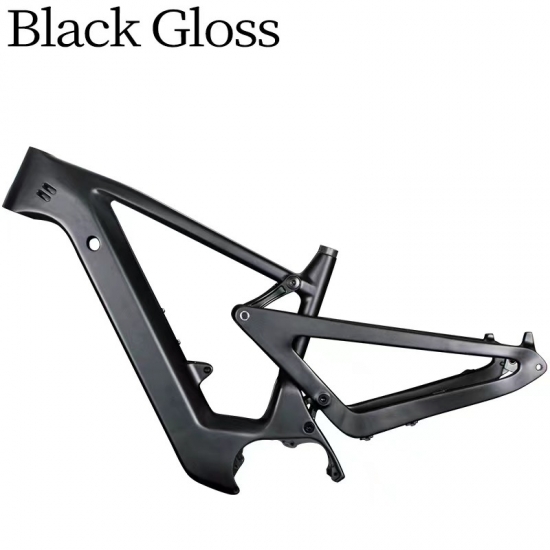

    Gloss/Matter/Customizable in various colors
  • Shipping Port:

    中国
  • Lead Time:

    1-2 Week
  • Order(MOQ):

    1
  • Product weight:

    3500g+/-200g(For M size)
  • Product Detail

Carbon Bike Frame /Full Suspension Frame 29er/Ebike
Type: E-MTB Carbon Full Suspension Frame 29er;
Material: T1000 Carbon Fiber;
Frame Travel: 150mm;
Fit for Rear Shock: 210*55*24mm;
Fit for Seat Clamp: 37mm;
Fit for Seat Post: 31.6mm;
Fit for Disc Brake: 180mm;
Fit for Motor: BAFANG M500/M600;
Fit for Battery: BAFANG BT F010.D672.C(48V-14AH);
Fit for Headset: Top 44mm, Down 56mm;
Fit for Tire: 29er.Max 2.5 Tire;
Rear Spacing Specification: Boost 148x12mm;
Rear Hook: UDH(1.5 pitch);
Max load: 150kg;

Order Contains: Frame+Thru Axle Quick+Seat Clamp+Rear Hook;
