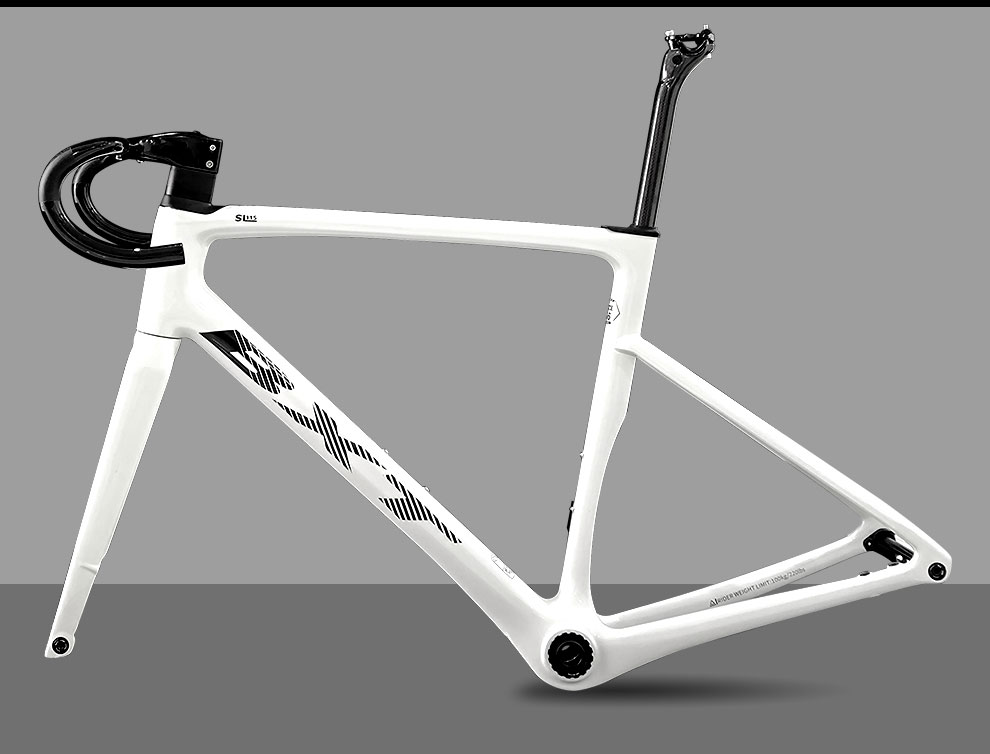

Carbon Disc Road Bike Frame

Climbs, corners, flat-out sprints—the BXT-ROAD-115 does it all.Available in 49cm,52cm,54cm,56cm sizes.

  • Item NO.:

    BXT-ROAD-115
  • Payment:

    FOB/EXW
  • Product Origin:

    China
  • Lead Time:

    1-2 Week
  • Product weight:

    1200g
  • Product Detail

Disc Brake Carbon Road Bike Frame


The all-new BXT-ROAD-115 Disc Road Bike Frame gives you the lightweight performance. Advanced-grade composite that boasts an outstanding stiff-to-weight ratio, along with new aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions.

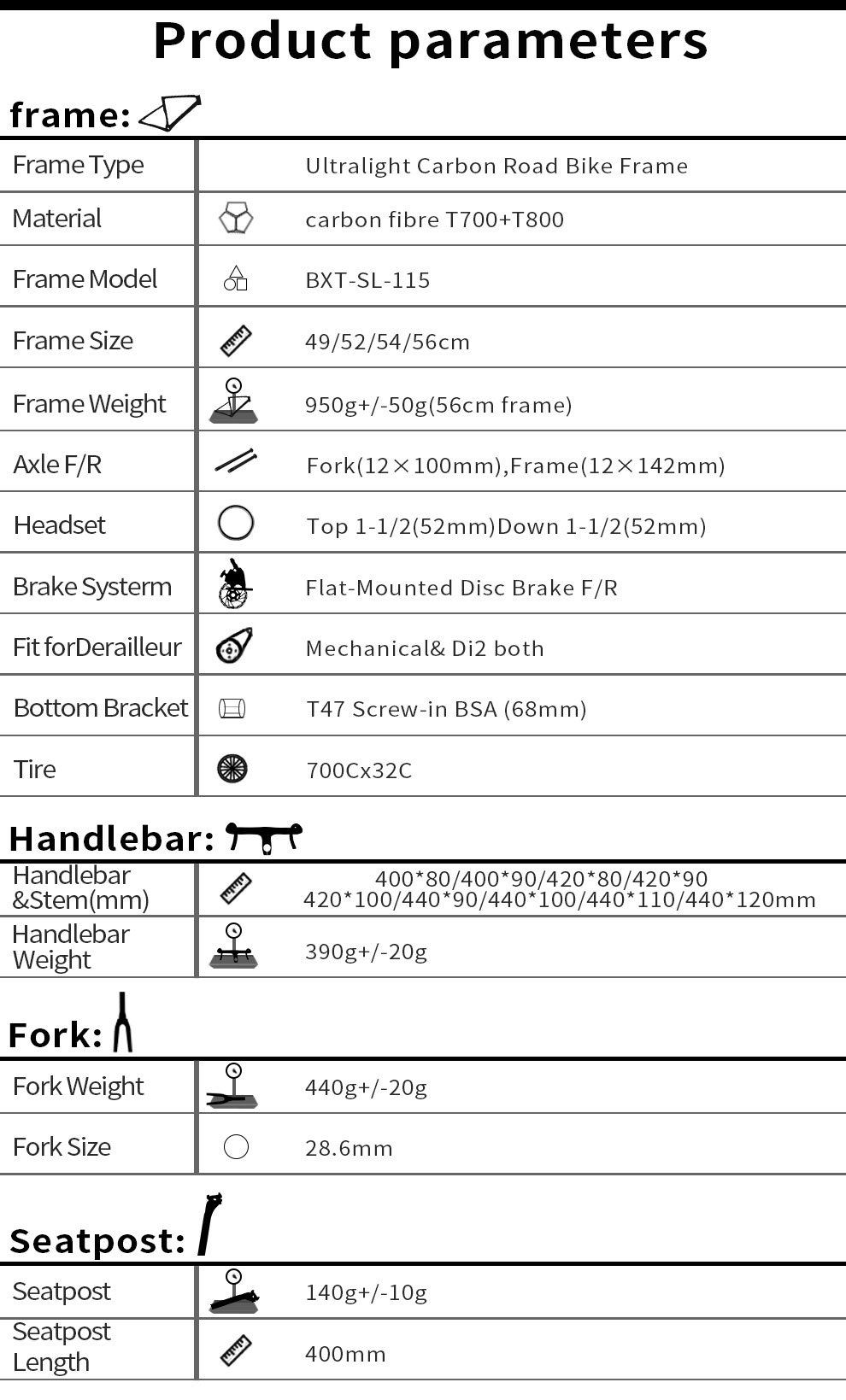

Product Information

Type
Carbon Fiber Disc Bicycle Road Frame
Brand
BXT
Model
BXT-ROAD-115
Material
T1000 Carbon Fiber
Available Size
49cm/52cm/54cm/56cm
Max load
150kg

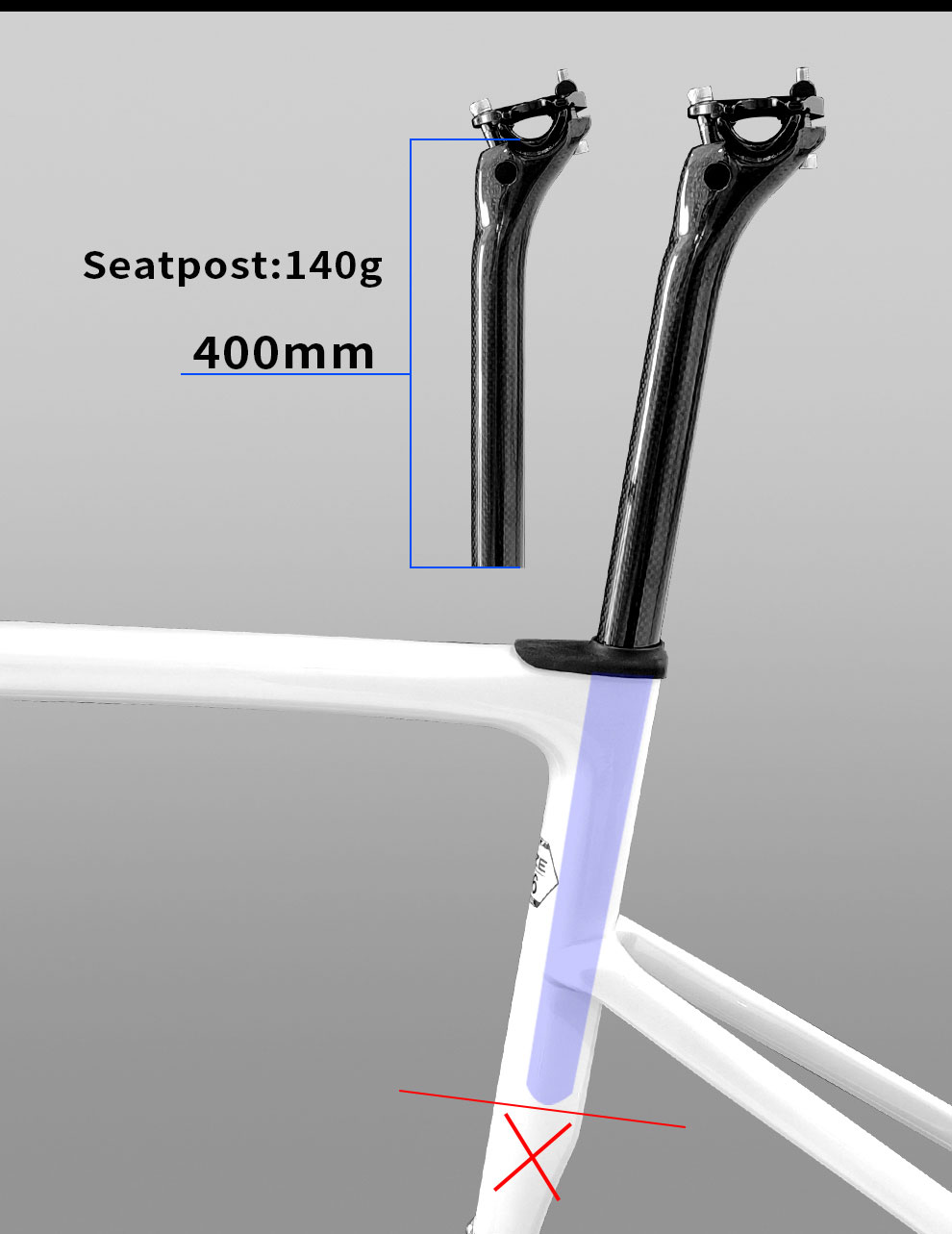

Seat Post Size
400x27.2mm

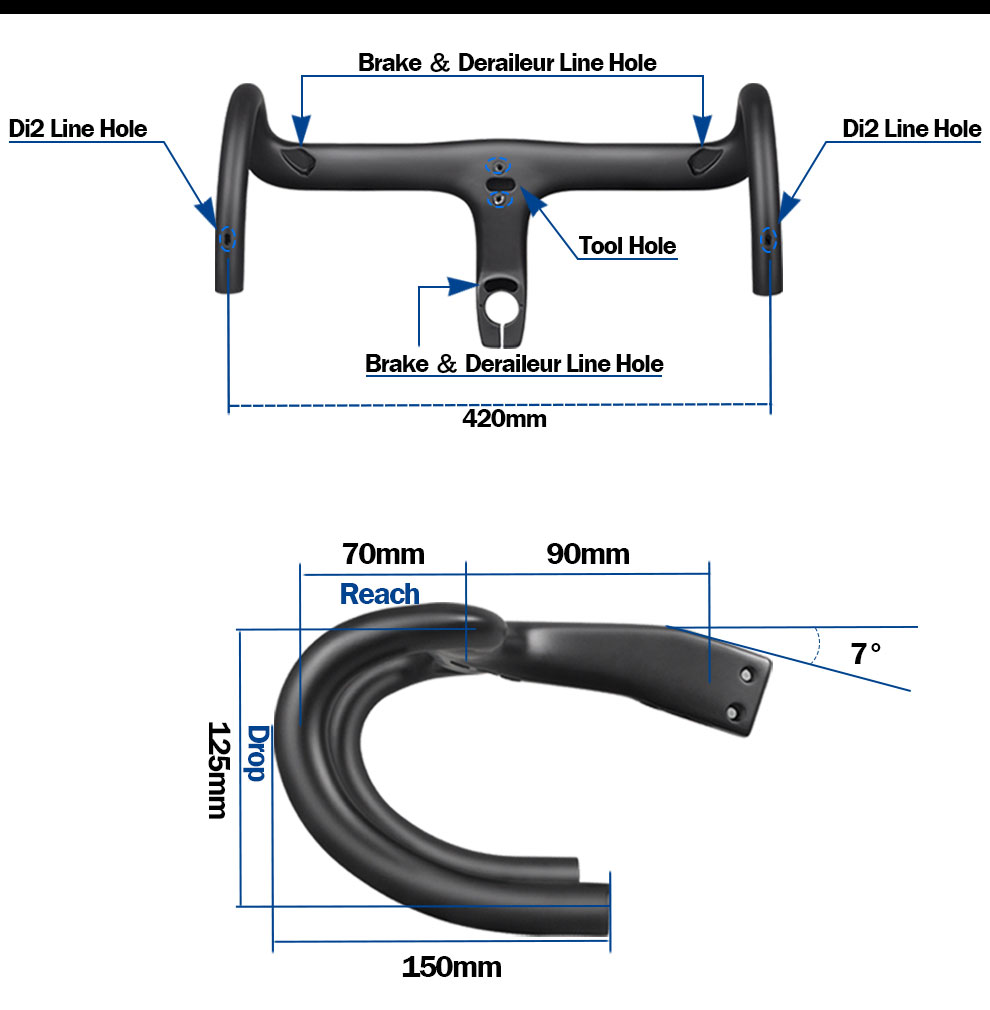

Handlebar Size
Wide 420mm,Length 90mm
Frame Weight
1200g+/-100g
Fork Weight
410g+/-20g
Handlebar Weight
380g+/-20g
Fit for Tire
700C,Max 32C Tire

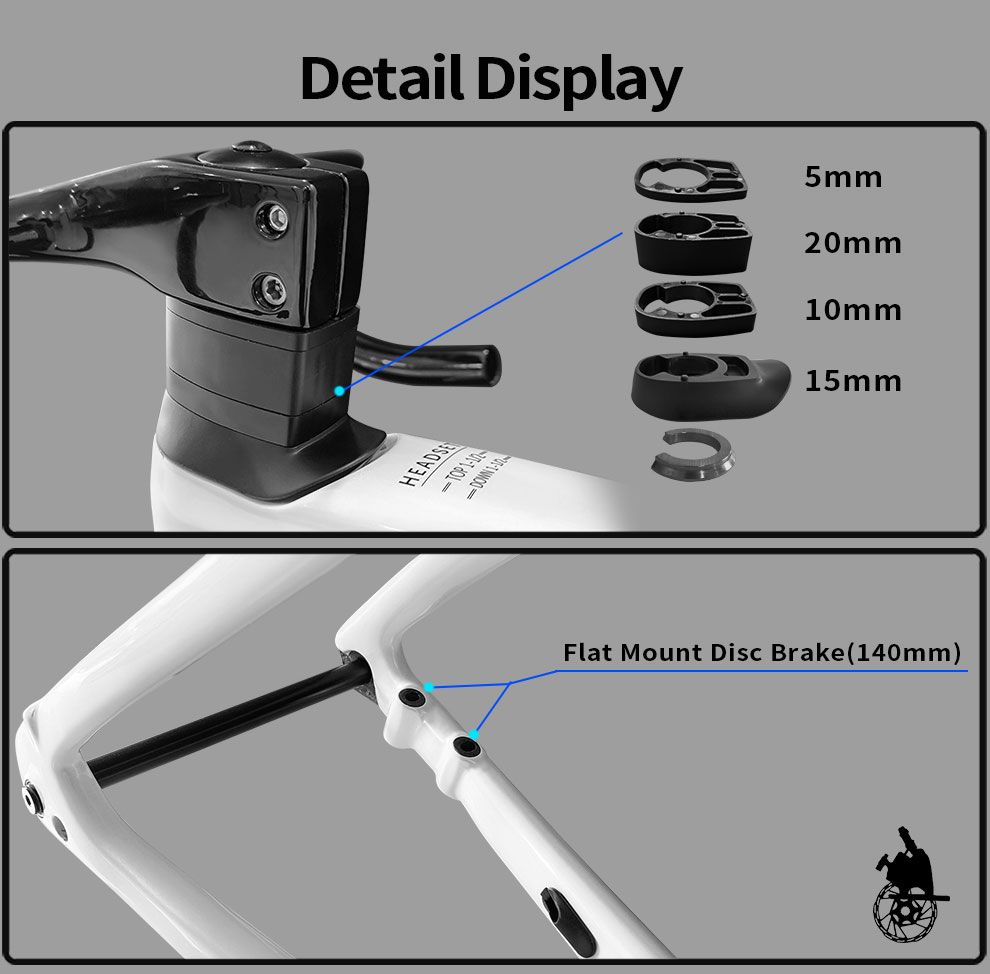

Brake System
Flat-Mounted Disc Brake

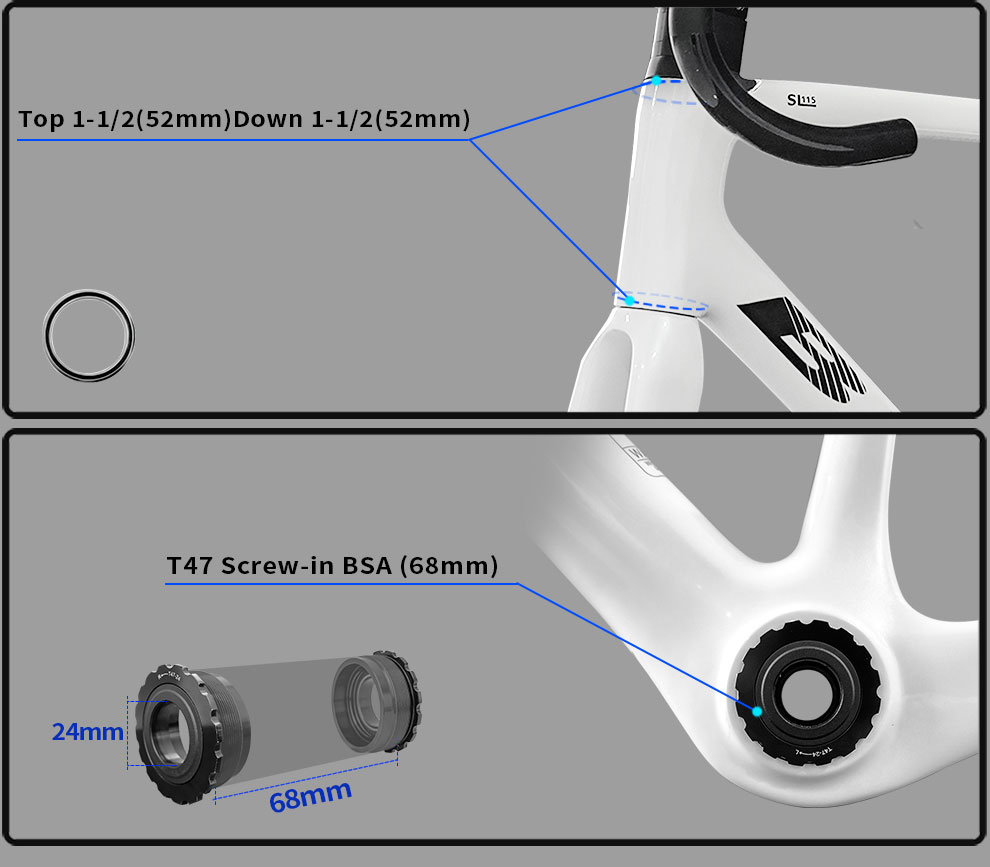

Fit For Bottom Bracket
Screw-in BSA(68mm)
Fit for Wheel Hub
Fork(100x12mm),Frame(142x12mm)
Fit for Headset
Top 1-1/2(52mm),Down 1-1/2(52mm)
Fit for Derailleur
Di2 And Mechanical Both

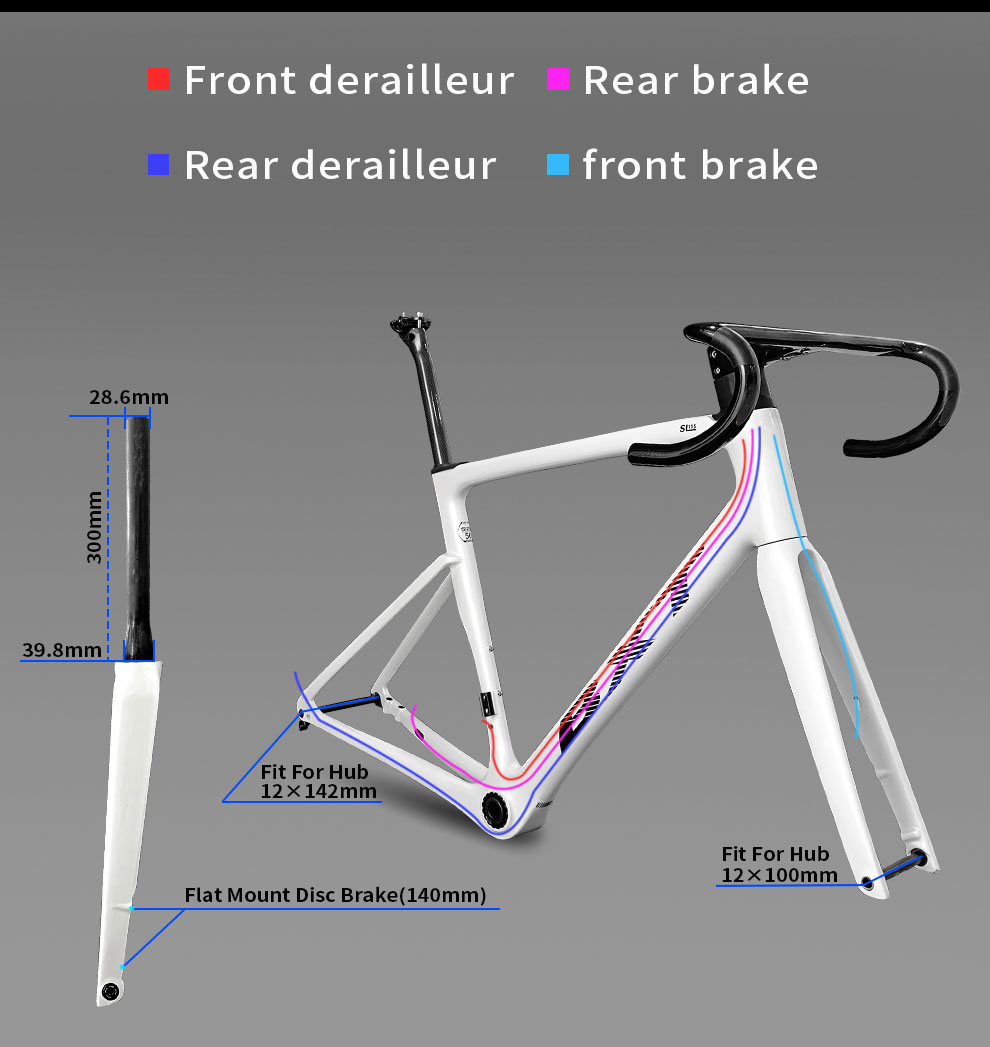

Brake,Derailleur Cable
Fully Hidden


disc carbon road bike frameroad disc carbon bicycle framefull carbon disc brake road bike framebicycle carbon road disc frameroad bicycle disc carbon framedisc road bike size chartcarbon fiber disc road bike frame
