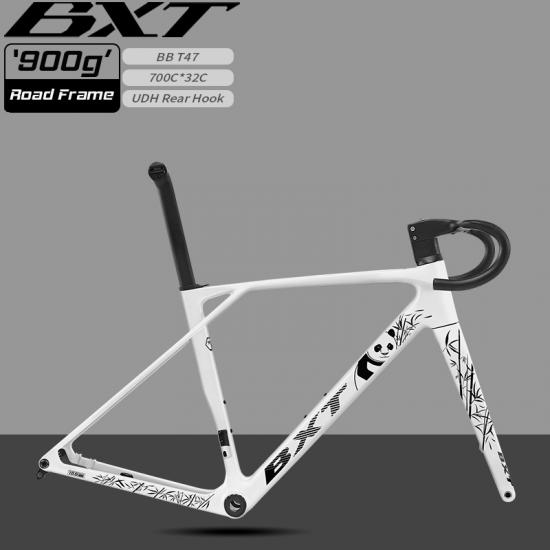

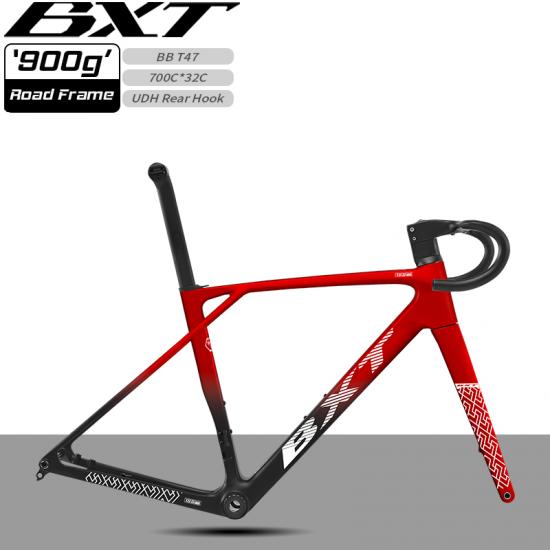

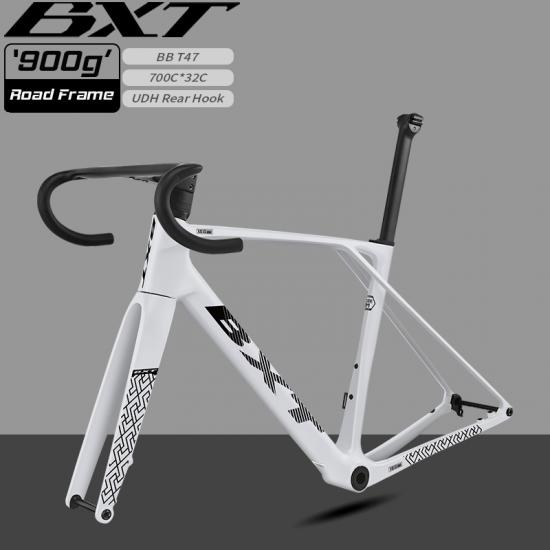

BXT NEW 2025 Carbon Disc Road Bike Frameset

Item NO.:
BXT-155-EVO
Payment:
FOB/EXW
Product Origin:
China
Lead Time:
1-2 Week

Product Detail

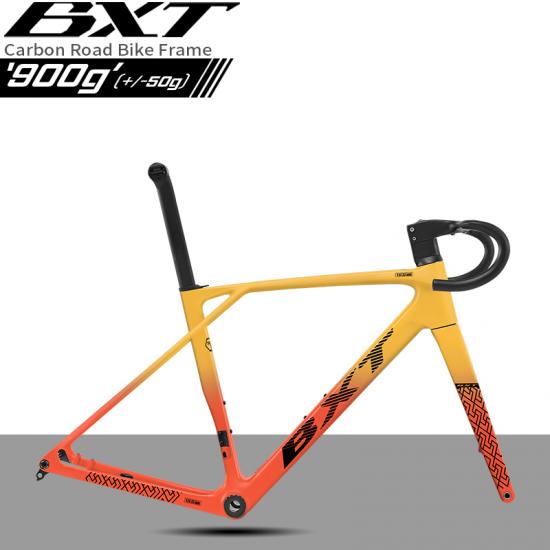

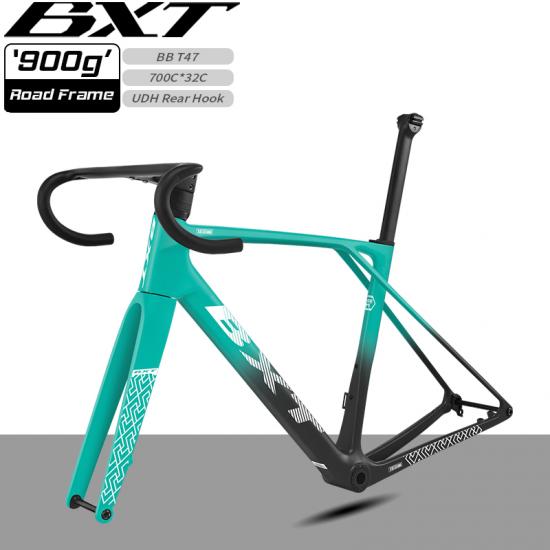

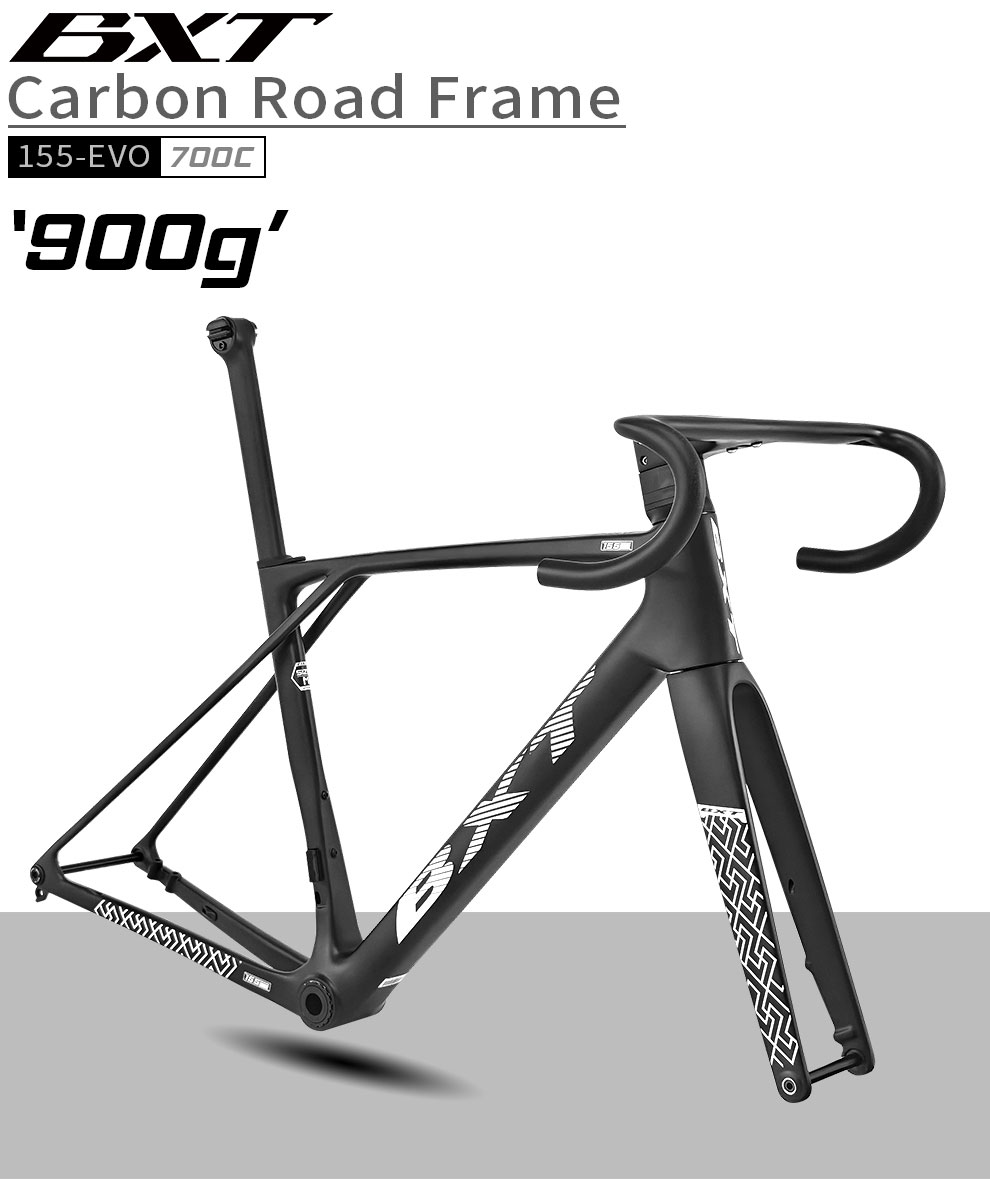

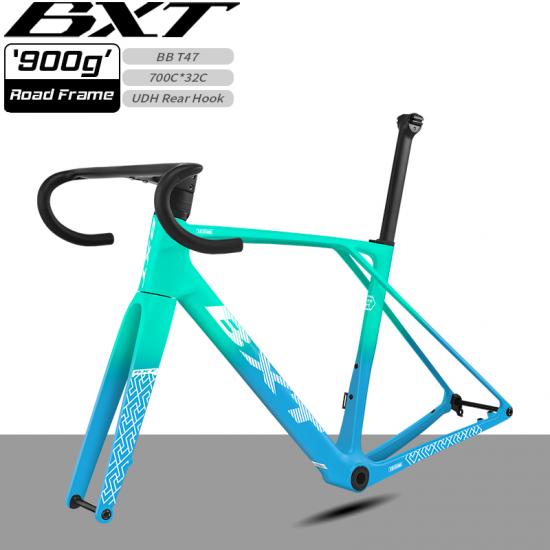

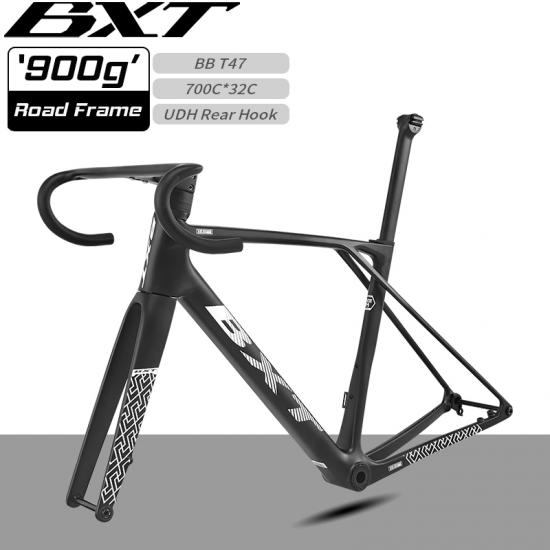

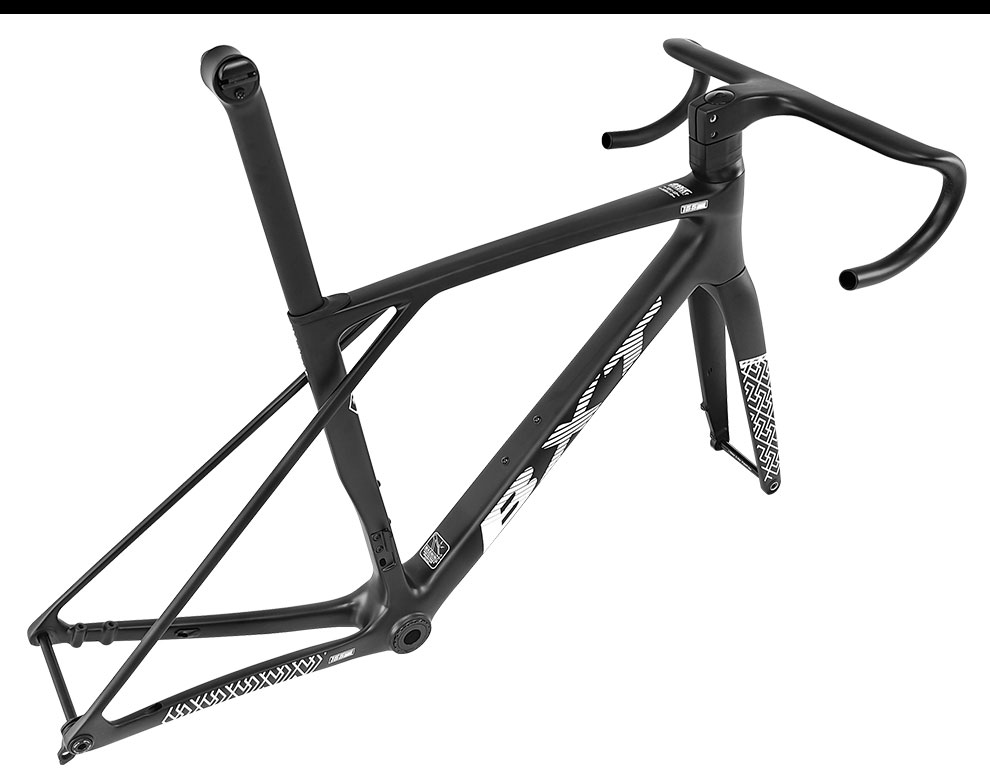

Carbon Racing Road Bike Frame

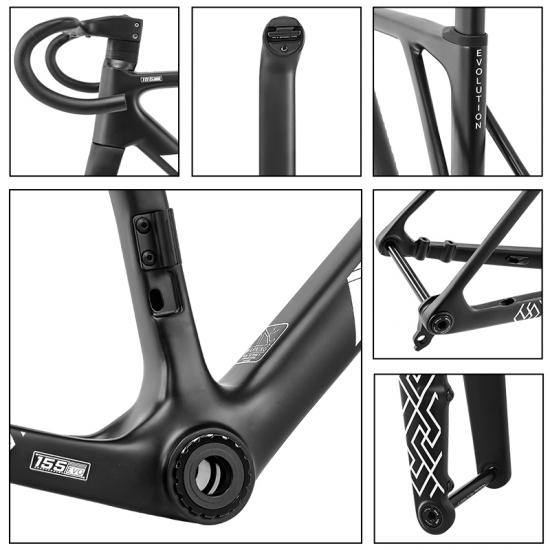

The all-new BXT-ROAD-155 Disc Road Bike Frame gives you the lightweight performance. Advanced-grade composite that boasts an outstanding stiff-to-weight ratio, along with new aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions.

Our Online Shop：www.bxtbikes.com

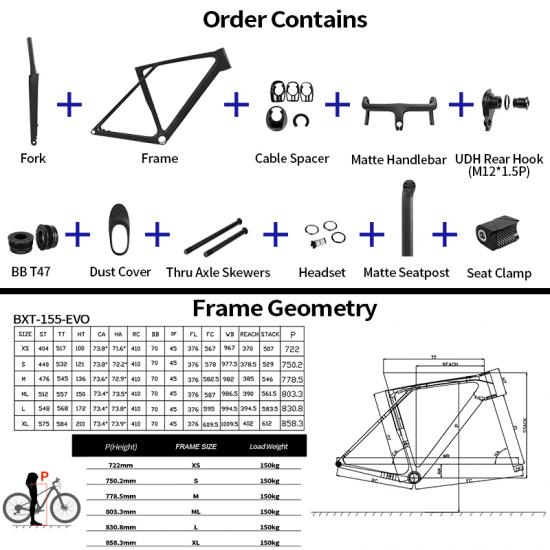

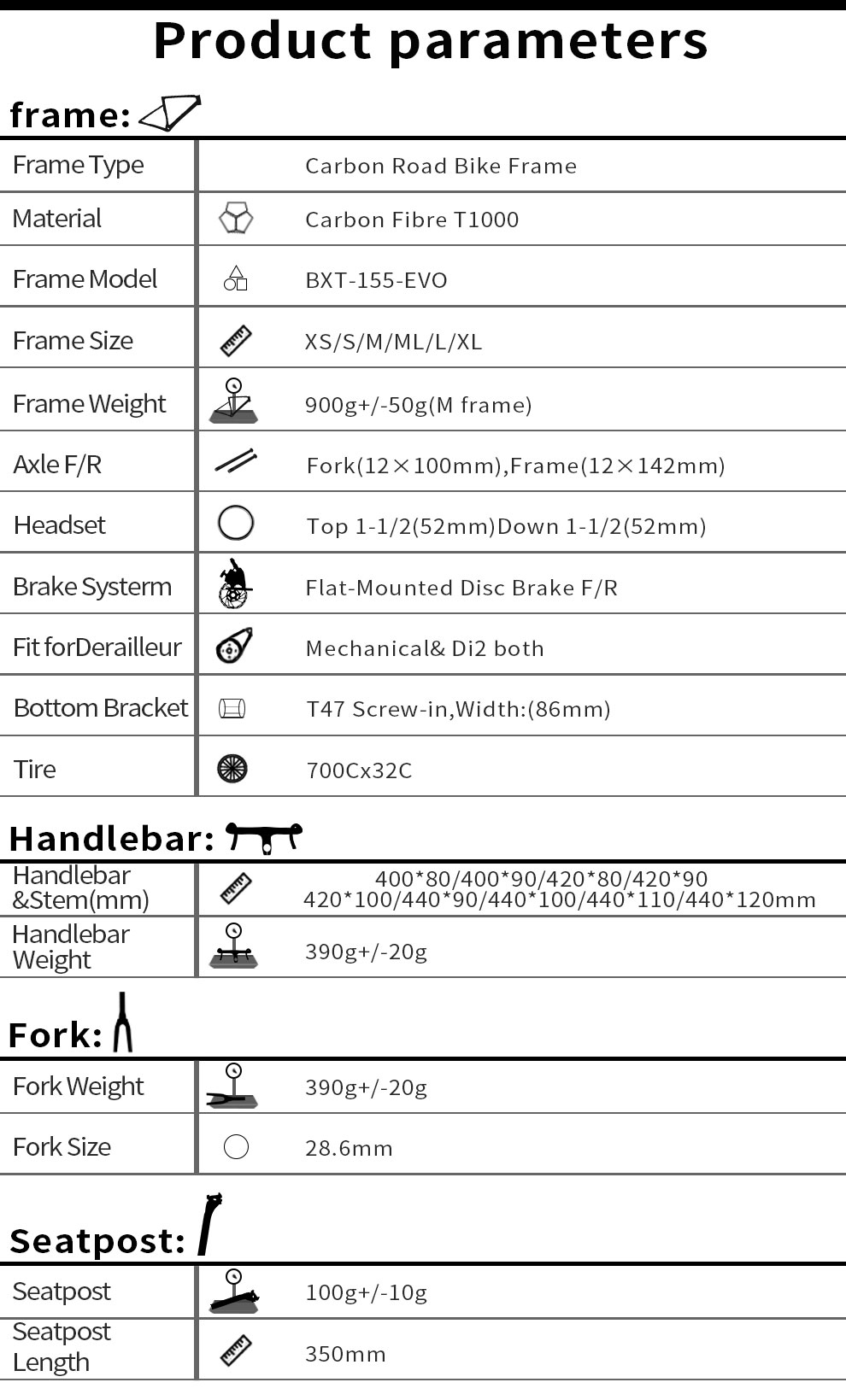

Product Information

frame:
FrameType：Carbon Road Bike Frame
Material：Carbon Fibre T1000
Frame Model：BXT-155-EVO

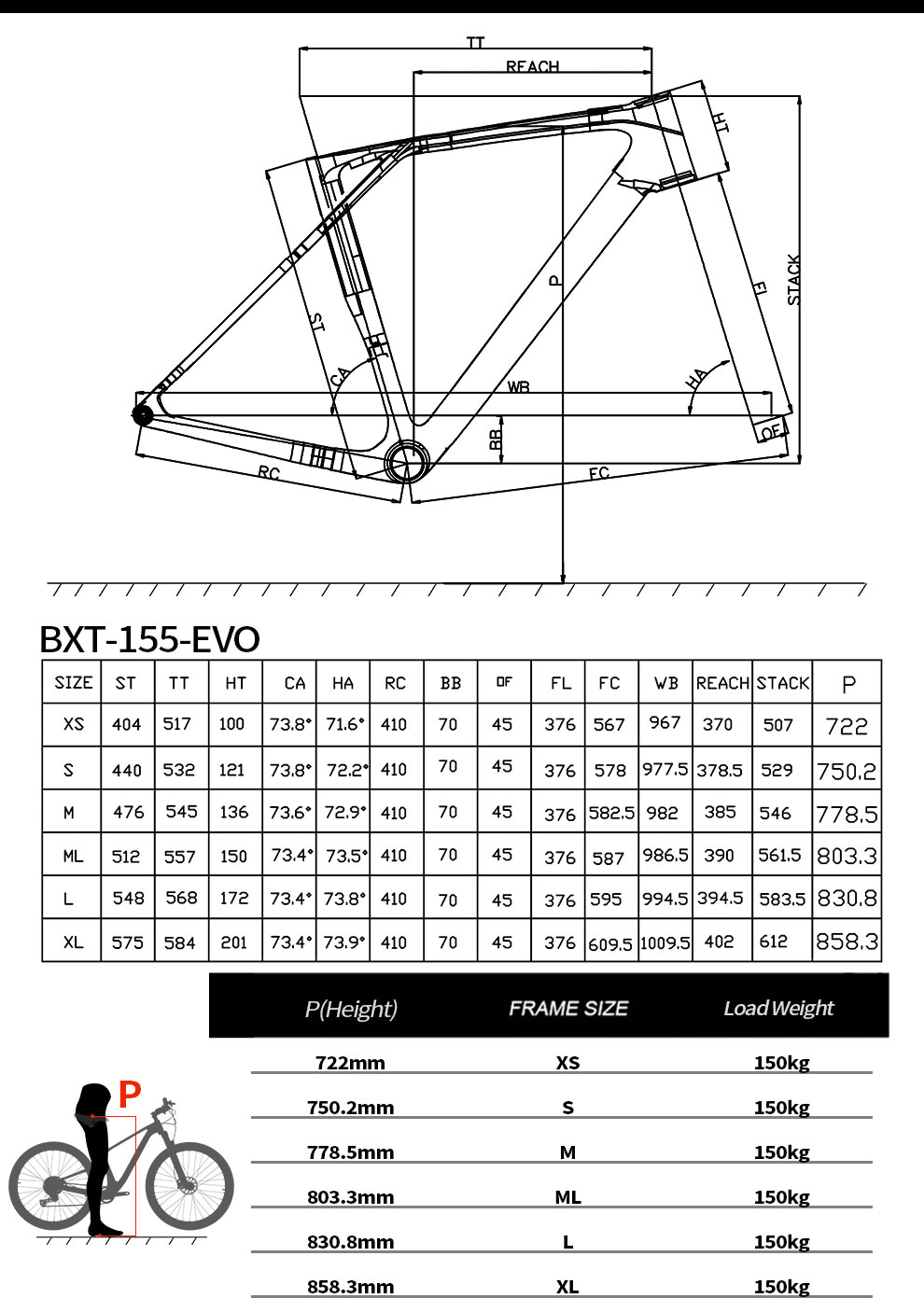

Frame Size：XS/S/M/ML/L/XL

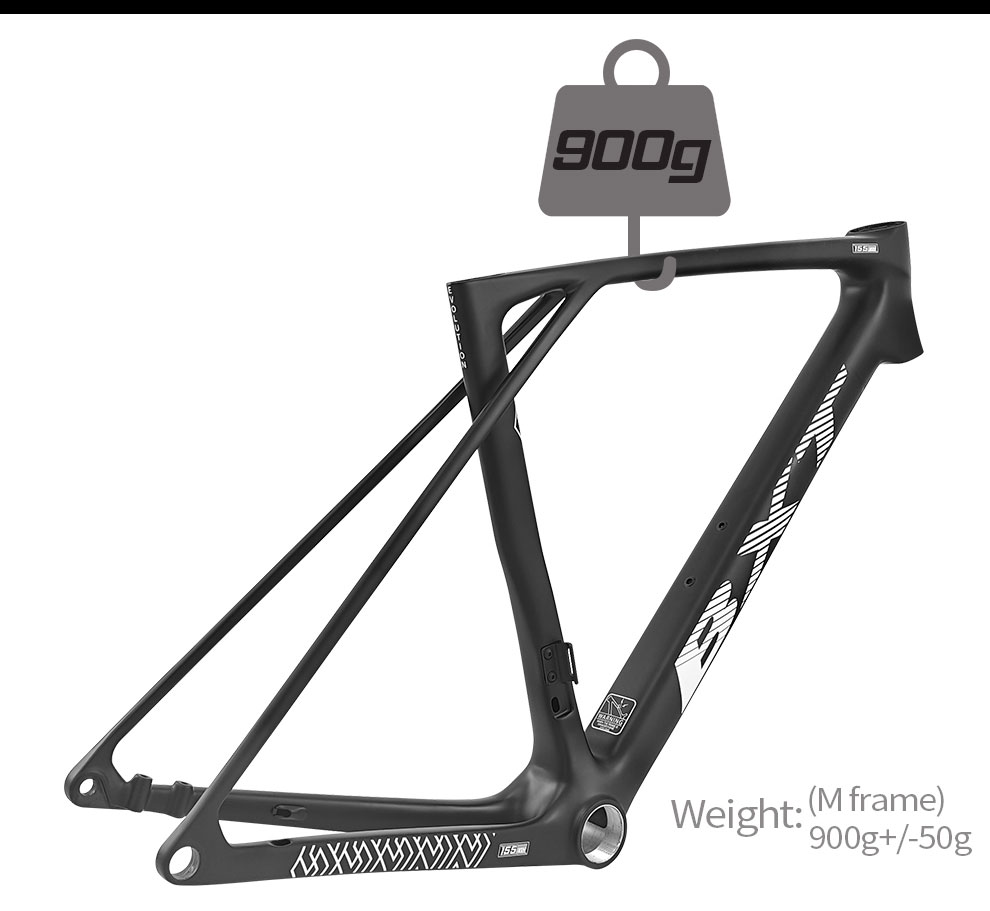

Frame Weight：900g+/-50g(M frame)

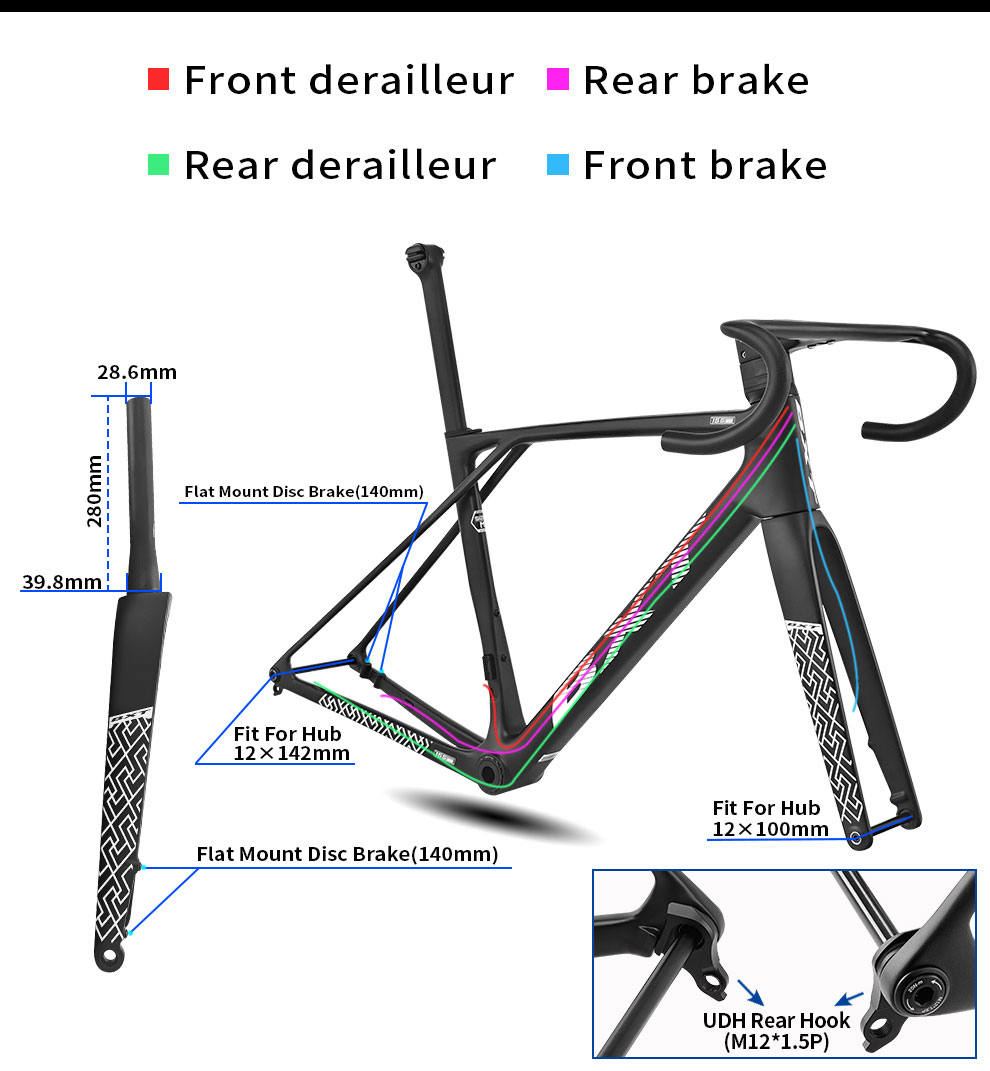

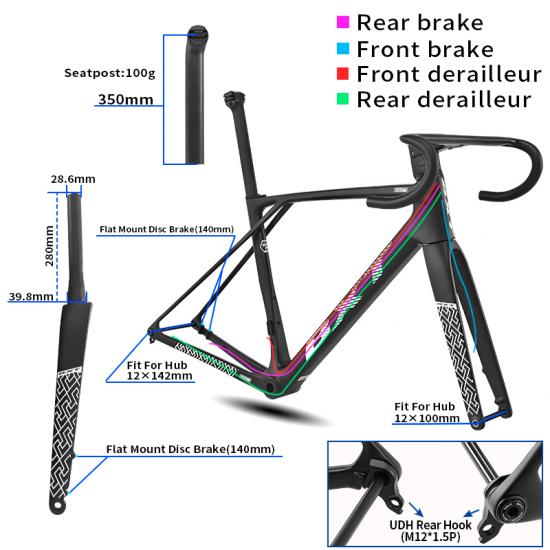

Axle F/R：Fork(12x100mm).Frame(12x142mm)

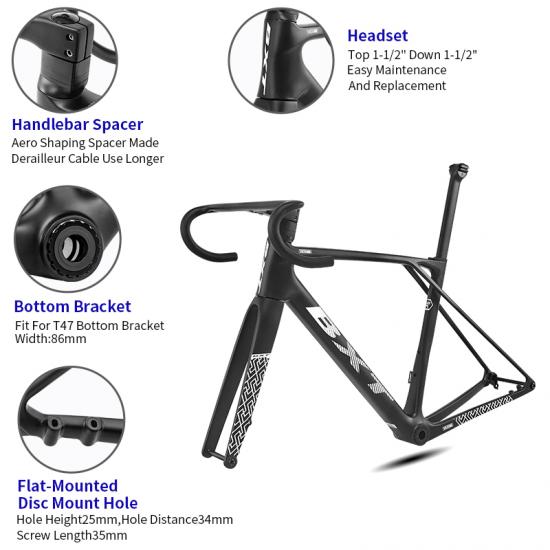

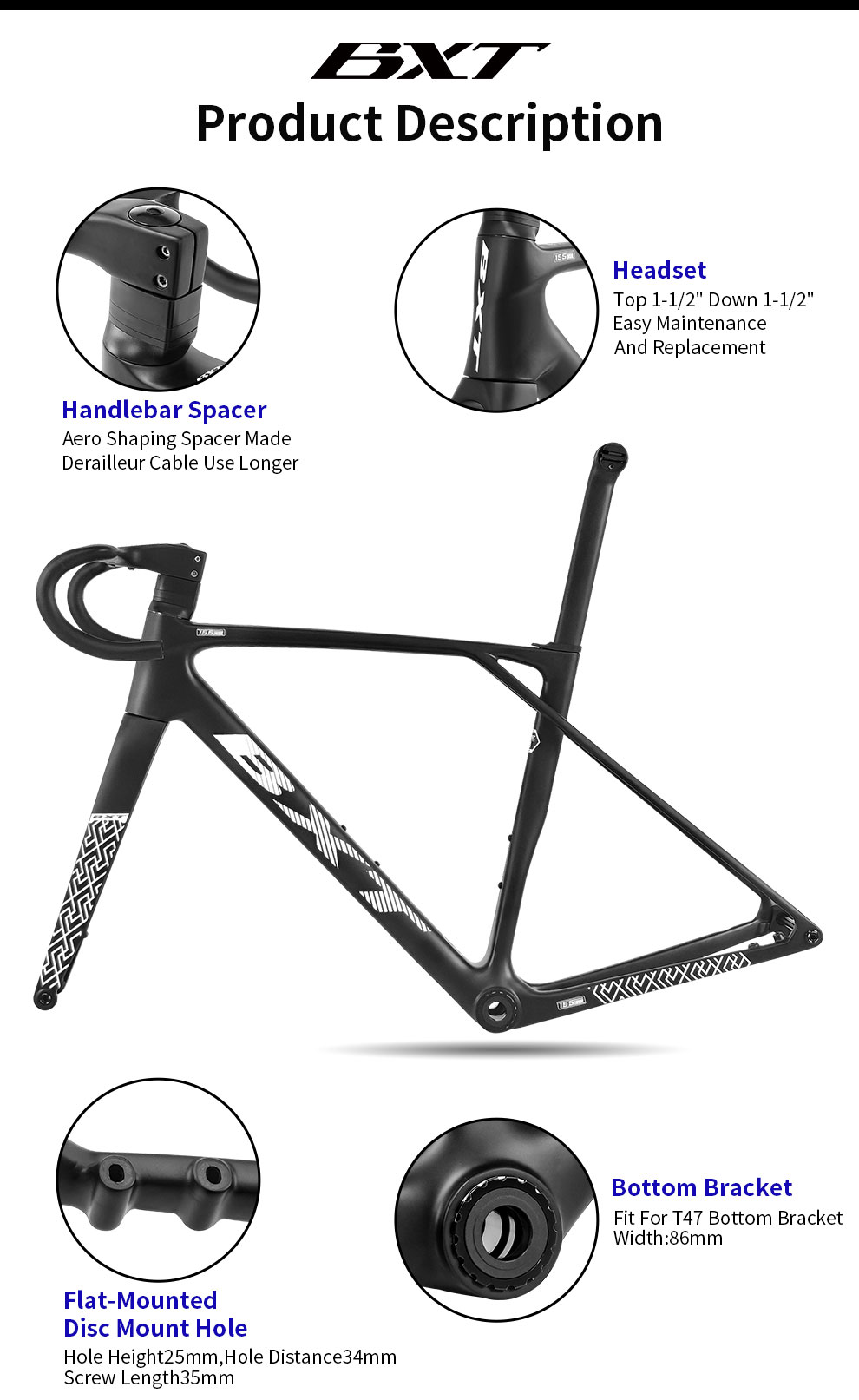

Headset：Top 1-1/2(52mm)Down 1-1/2(52mm)
Brake Systerm：Flat-Mounted Disc Brake F/R
Fit for Derailleur：Mechanical& Di2 both
Bottom Bracket：T47 Screw-in,Width:(86mm)
Tire：700Cx32C

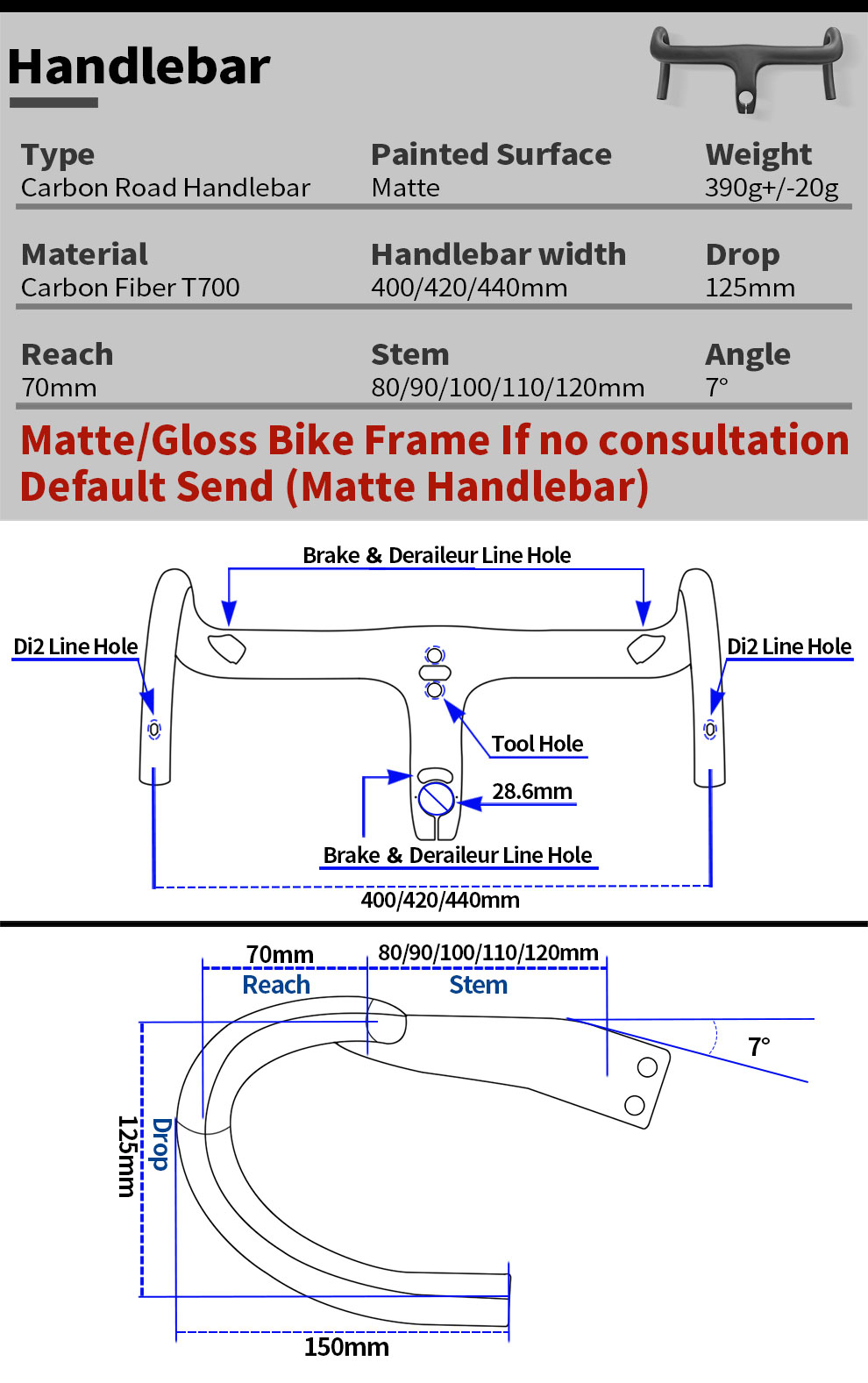

Handlebar:
Handlebar&Stem(mm)：400*80/400*90/420*80/420*90420*100/440*90/440*100/440*110/440*120mm
Handlebar Weight：390g+/-20g
Fork:
Fork Weight：390g+/-20g
Fork Size：28.6mm

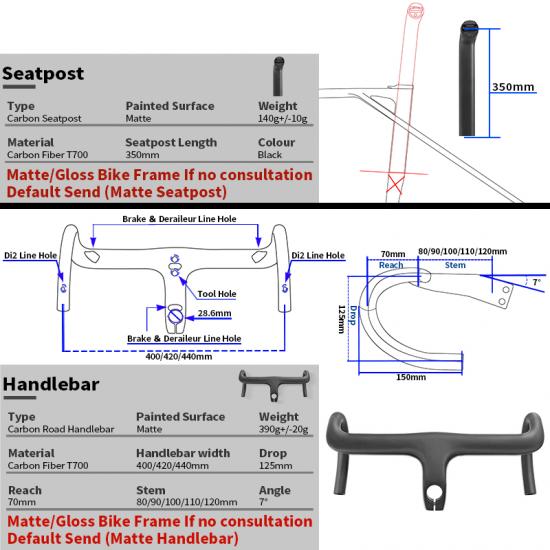

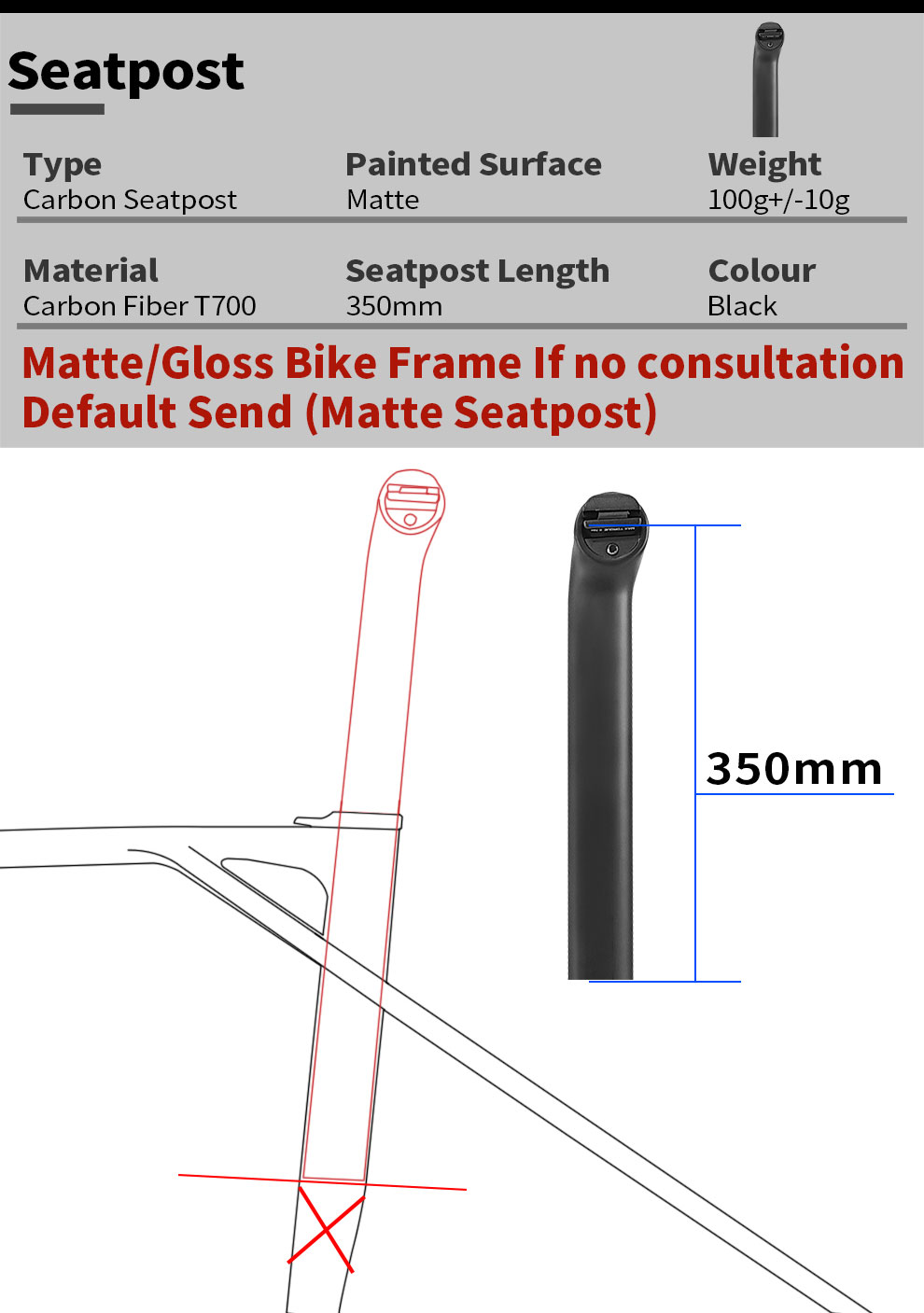

Seatpost:
Seatpost：100g+/-10g
Seatpost Length：350mm

Hot Tags :

Ultralight carbon fiber road frame T1000 Disc Brake Road Frame Carbon Racing Road Bike Frame disc
