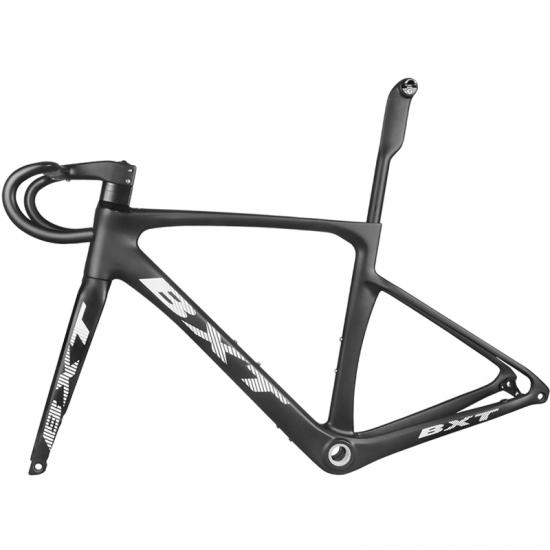

Carbon Disc Road Bike Frame

Climbs, corners, flat-out sprints—the BXT-ROAD-125 does it all.Available in 47cm,49cm,52cm,54cm,56cm sizes.

  • Item NO.:

    BXT-ROAD-125
  • Payment:

    FOB/EXW
  • Product Origin:

    China
  • Lead Time:

    1-2 Week
  • Product Detail

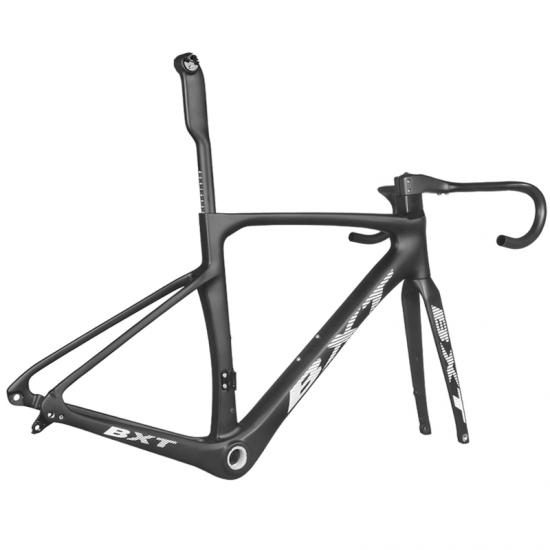

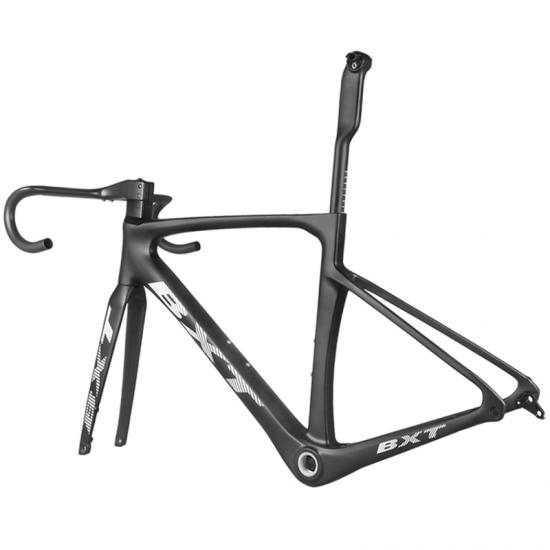

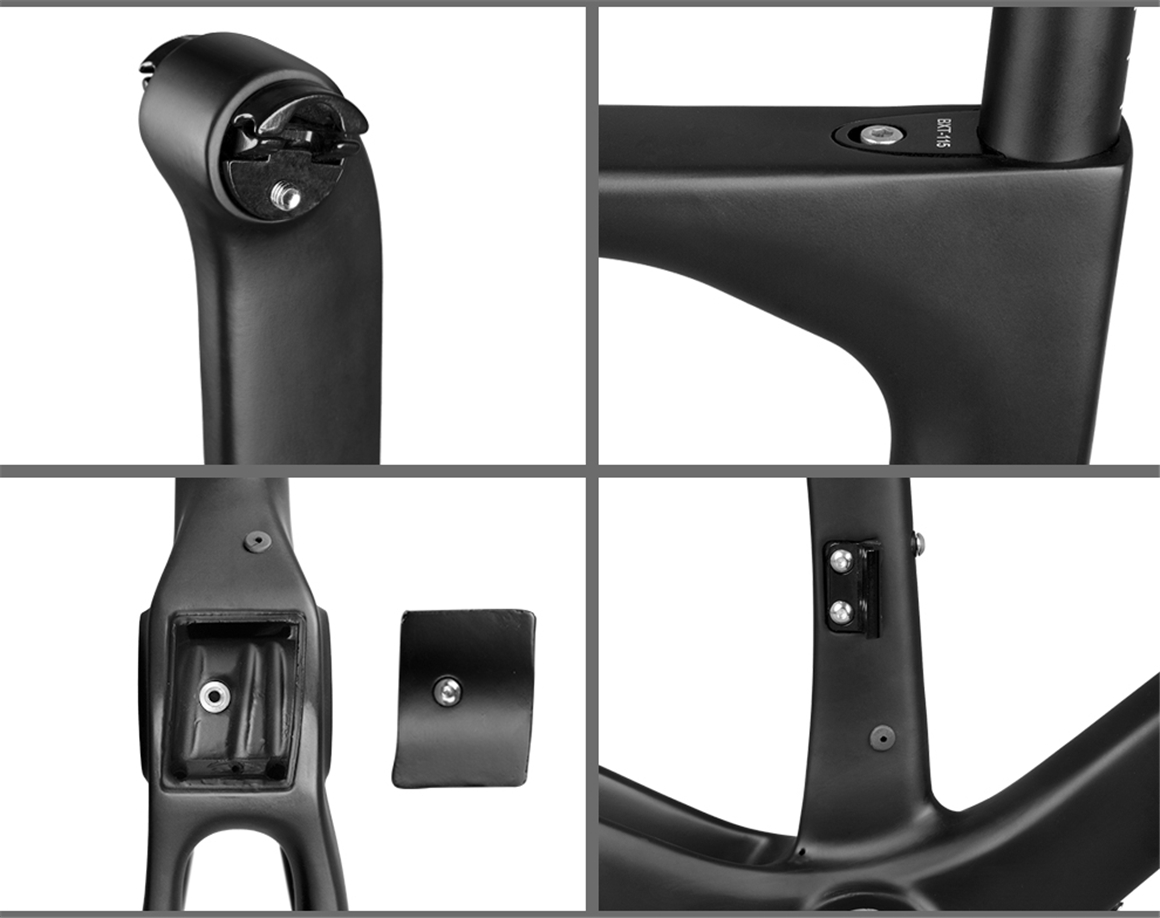

Carbon Racing Road Bike Frame


The all-new BXT-ROAD-125 Disc Road Bike Frame gives you the lightweight performance. Advanced-grade composite that boasts an outstanding stiff-to-weight ratio, along with new aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions.

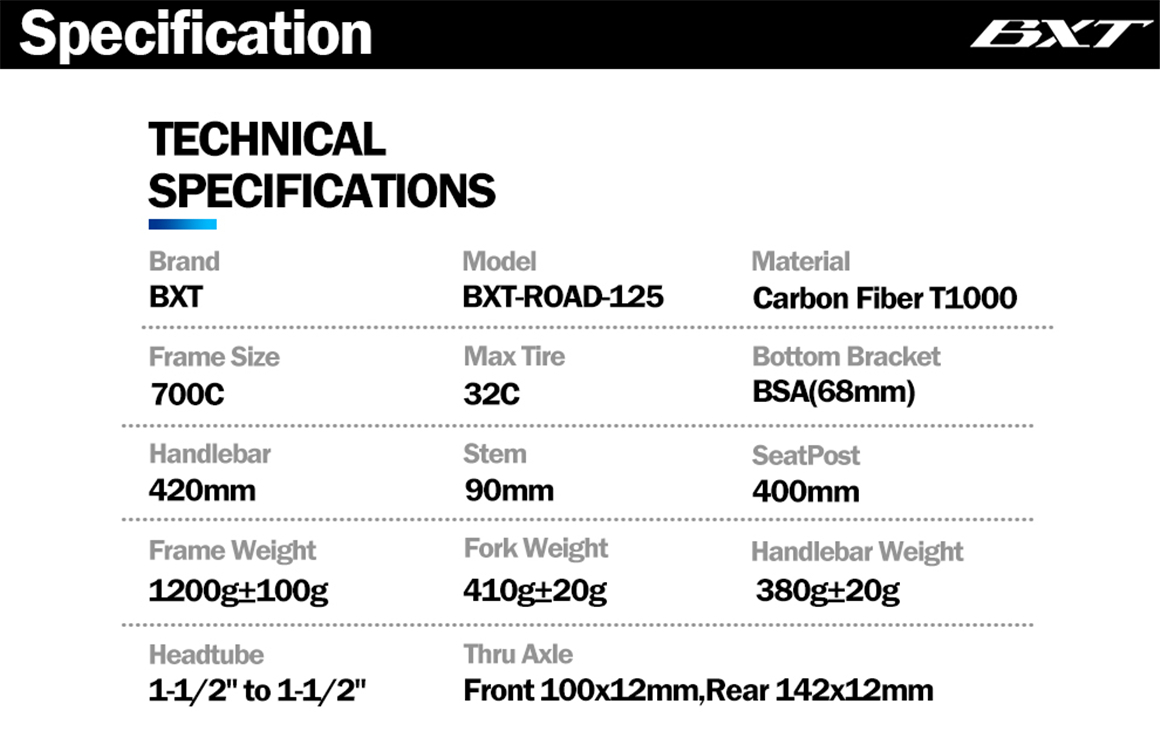

Product Information

Type
Performance Road Bike Frame
Model
BXT-ROAD-125
Material
T1000 Carbon Fiber

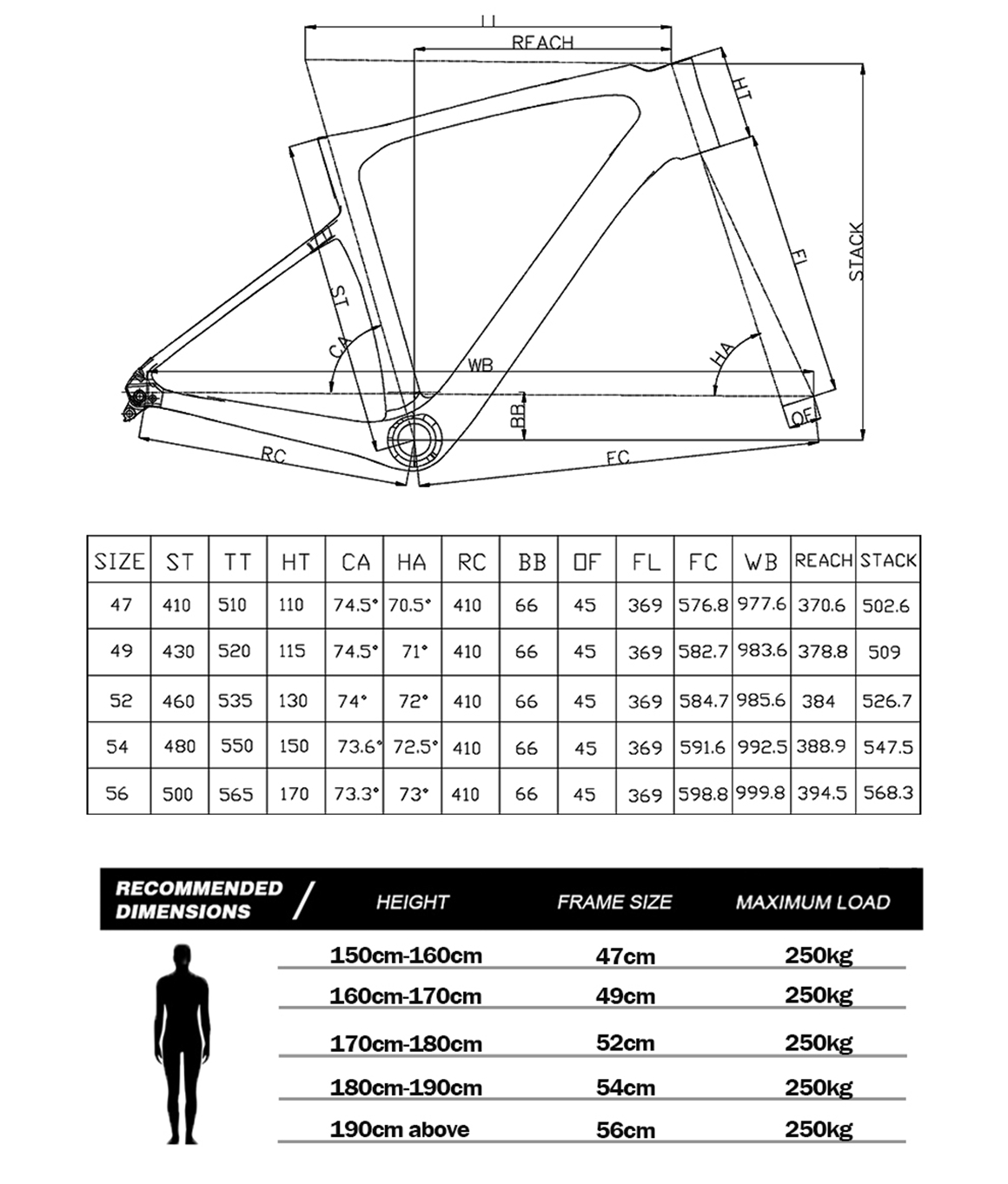

Available Size
47cm/49cm/52cm/54cm/56cm
Max load
250kg

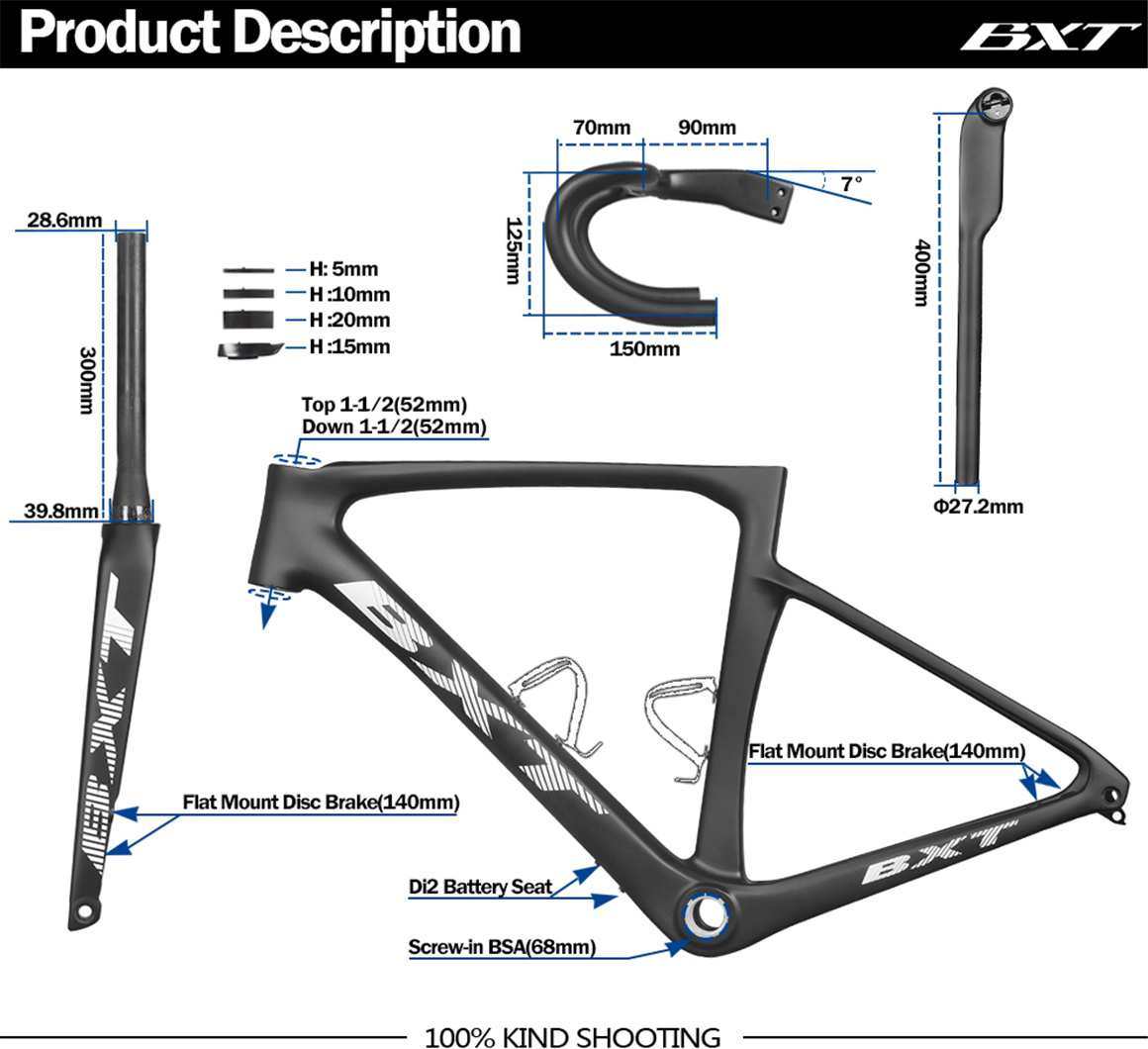

Seat Post Size
400x27.2mm
Handlebar Size
Wide 420mm,Length 90mm
Fit for Tire
700C,Max 32C Tire
Brake System
Flat-Mounted Disc Brake
Fit For Bottom Bracket
Screw-in BSA(68mm)
Fit for Wheel Hub
Fork(100x12mm),Frame(142x12mm)
Fit for Headset
Top 1-1/2(52mm),Down 1-1/2(52mm)
Fit for Derailleur
Di2 And Mechanical Both

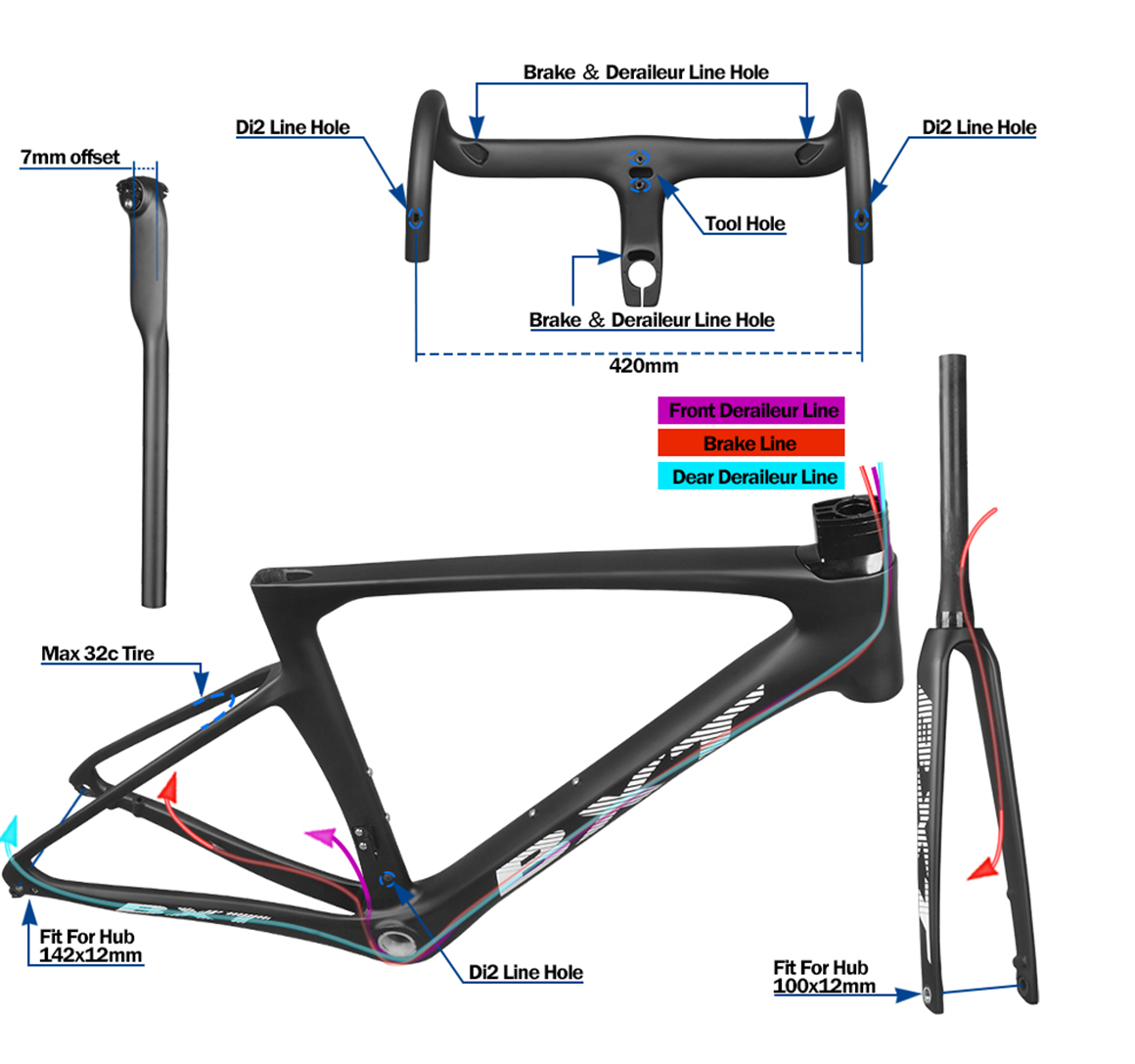

Brake,Derailleur Cable
Fully Hidden


disc road carbon bike frameroad carbon bike frame thru axlefull carbon road bicycle framefoil rc 20 road bicyclet1000 carbon fiber road bike framePerformance carbon road bike framecarbon road bike frameset
