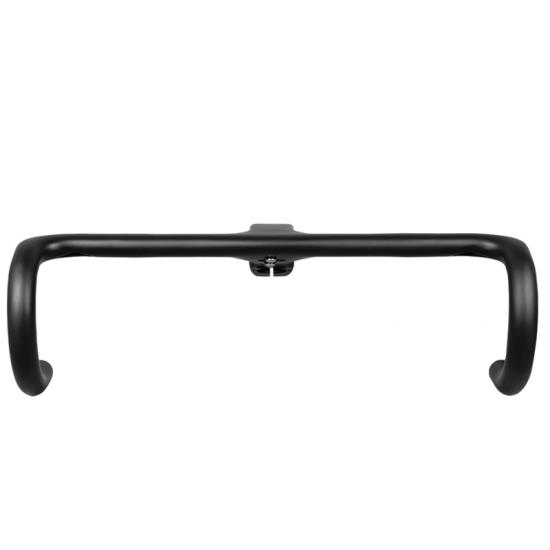

Carbon Road Bike Integrated Handlebar

The aerodynamic design cleverly hides the cables to achieve a neater appearance without affecting the riding performance.

  • Item NO.:

    BXT-HB-006
  • Payment:

    FOB/EXW
  • Product Origin:

    China
  • Lead Time:

    1-2 Week
  • Product Detail

Carbon Road Bicycle one-piece bar/stem combo


The aerodynamic design cleverly hides the cables to achieve a neater appearance without affecting the riding performance.The material is Toray carbon fiber T800 for a light overall weight, vibration absorption, and high rigidity.


Our Online Shopwww.bxtbikes.com


Product Information

Type
Carbon Road Integrated Handlebar
Model
BXT-HB-006
Material
T800 Carbon Fiber
Painted Surface
Matte

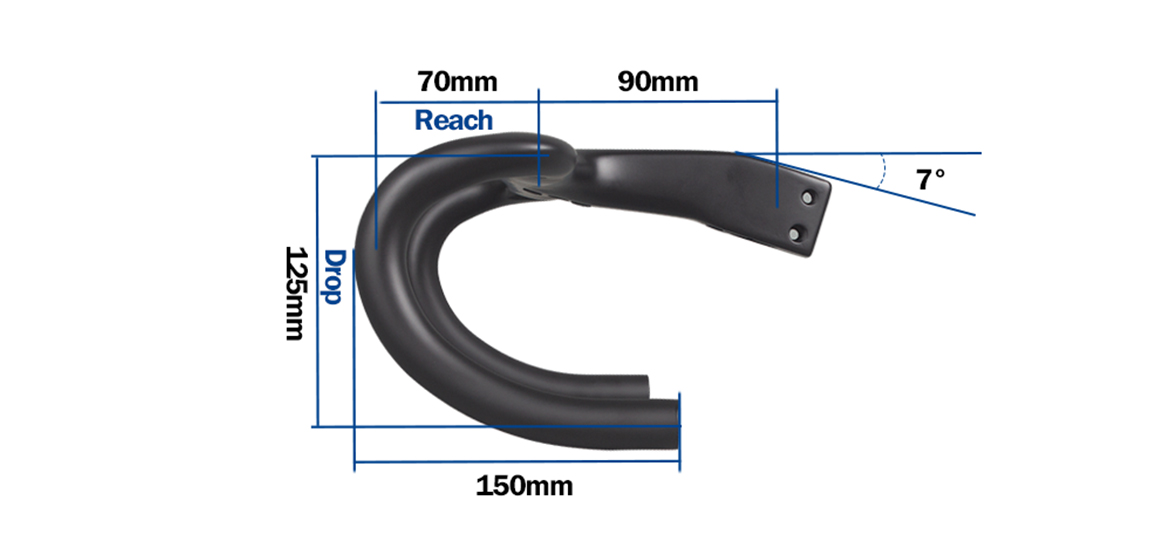

Stem Length
90mm
Stem Angle
7-Degree Rise

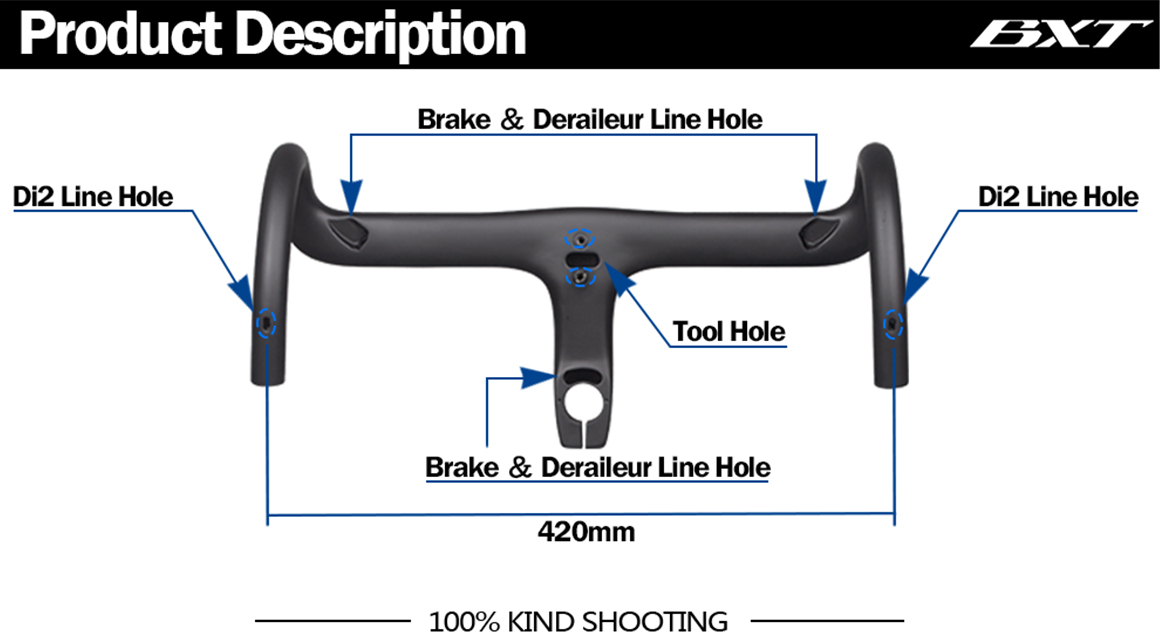

Bar Width(Centre-To-Centre)
420mm
Reach
70mm
Drop
125mm
Screw Torque
6N.m
Suitable Fork Tube Outer diameter
28.6mm
Weight
380g+/-20g


Carbon Road Bike Integrated HandlebarCarbon Road one-piece bar/stem comboCarbon Fiber Road HandlebarRoad Racing HandlebarRoad Biycle Carbon Handlebar
