Products
Home MTB FRAME Fat Wheel Carbon Fat Bike Frame

Carbon Fat Bike Frame

Supports 4.8inch tire, Thru Axle specification. 26er carbon T1000 fatbike frame. What brings you is better comfort, stability and safety. Available in 16inch or 18inch sizes.

  • Item NO.:

    BXT-MTB-078
  • Payment:

    FOB/EXW
  • Product Origin:

    China
  • Lead Time:

    1-2 Week
  • Product Detail

Carbon FatBike Frame 26er


The tapered head tube increases the cross-sectional area, and the light weight of carbon fiber improves riding control. The 197x12mm Thru axle rear fork and the wide 100mm bottom bracket enhance the safety of riding. 4.8inch tires improve riding stability and passability. The full carbon fiber T1000 fat tire bicycle frame will conquer the beach, snow, and muddy roads with you.


Our Online Shopwww.bxtbikes.com


Product Information

Type
Carbon FatBike Frame 26er
Brand
BXT
Model
BXT-MTB-078
Material
T1000 Carbon Fiber
Fit for Tire
26er;Max 4.8 tires
Fit for SeatPost
31.6mm
Fit for Seat Clamp
37mm
Fit for Bottom Bracket
BSA-100mm
Fit for Headset
Top 1-1/8(41.8mm) Down 1-1/2(52mm)
Fit for Brake
Disc Brake 160mm
Fit for Wheel Hub
190x9mm or 197x12mm
Available Size
16inch/18inch
Recommended Height
16inch(165-175cm),18inch(175-185cm)

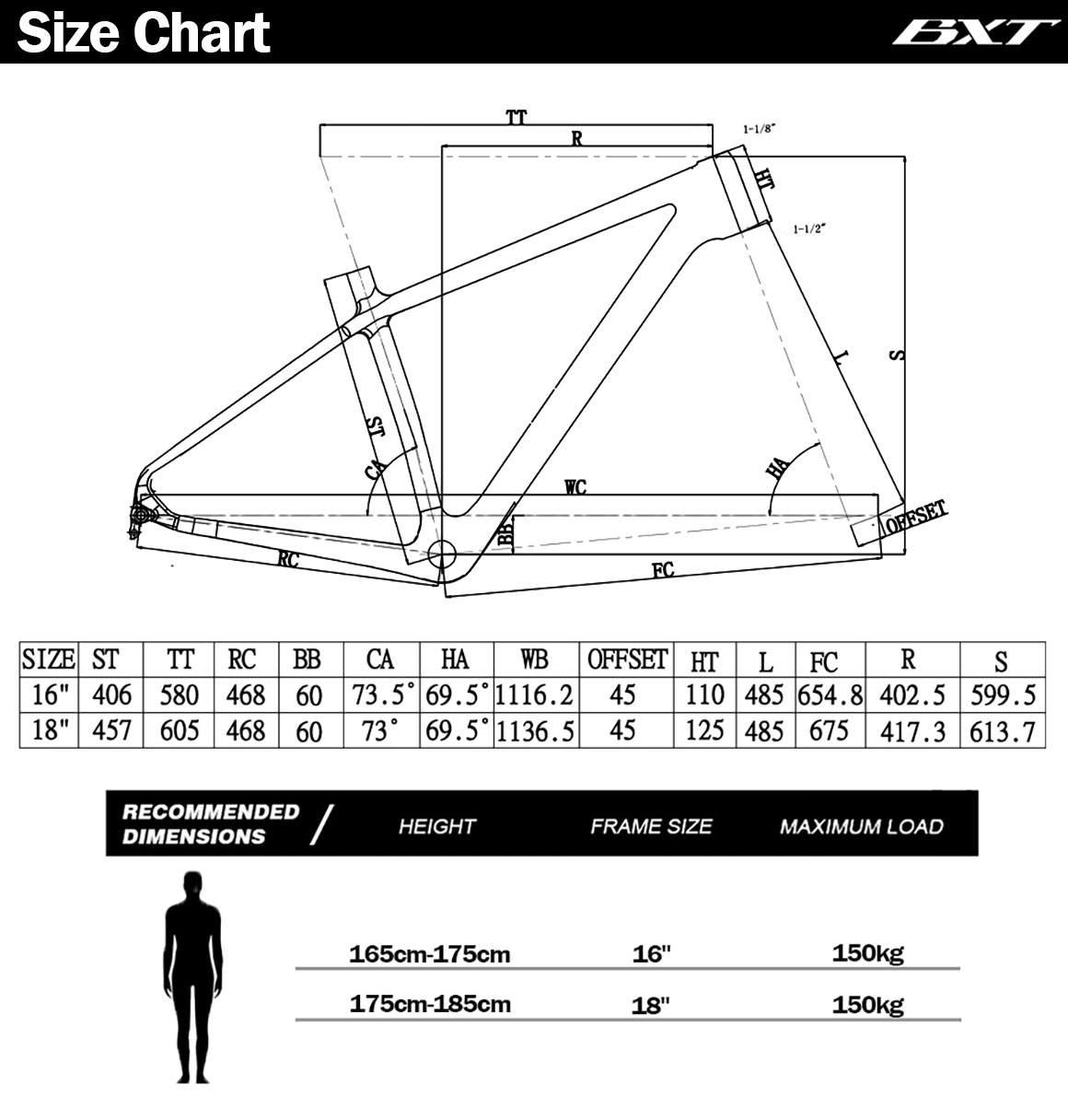

thru axle carbon fatbike frame carbon disc fat wheel frame 26ercarbon disc mountain bike framesnow bike frame carbon 26er size chart
