Home ROAD FRAME TT Carbon TT Frame Set

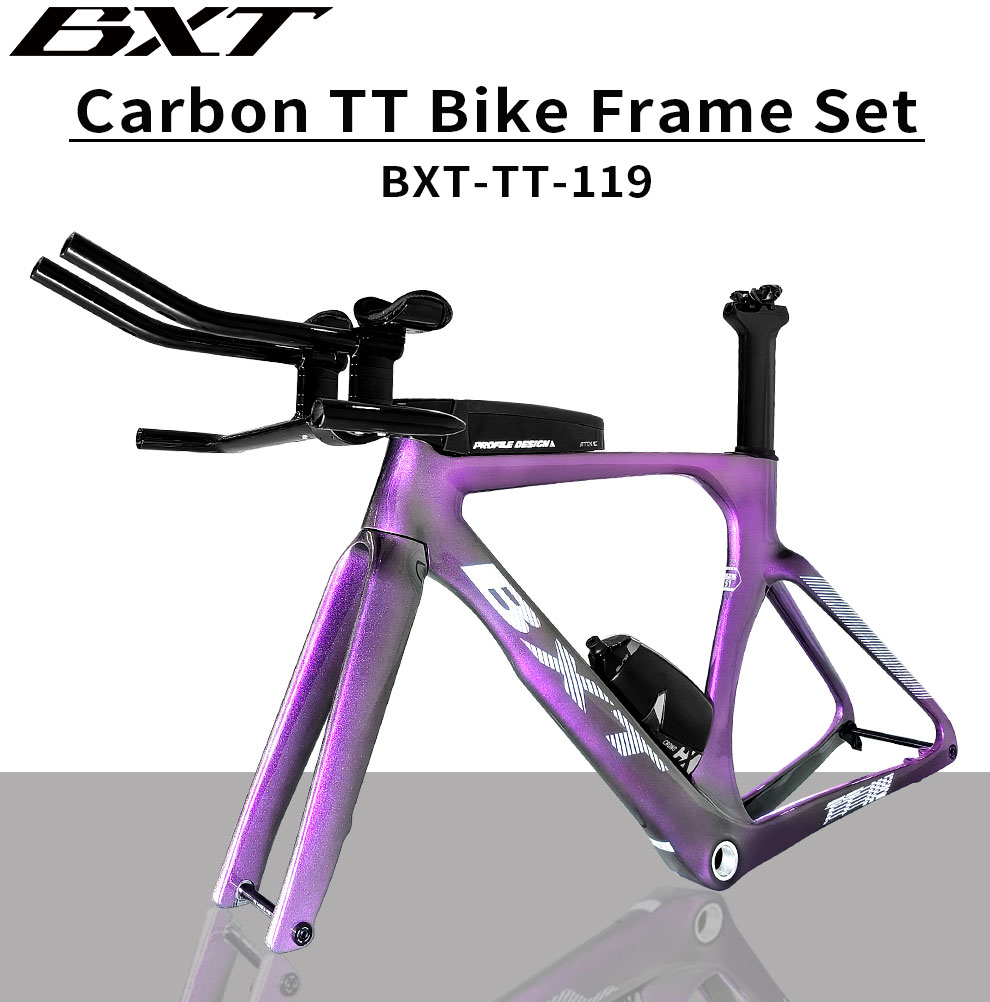

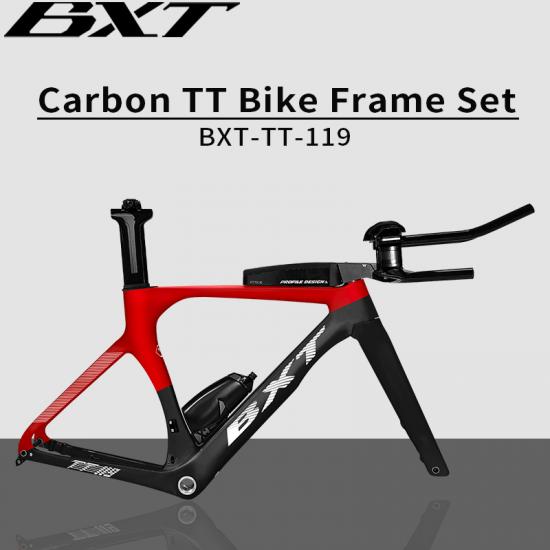

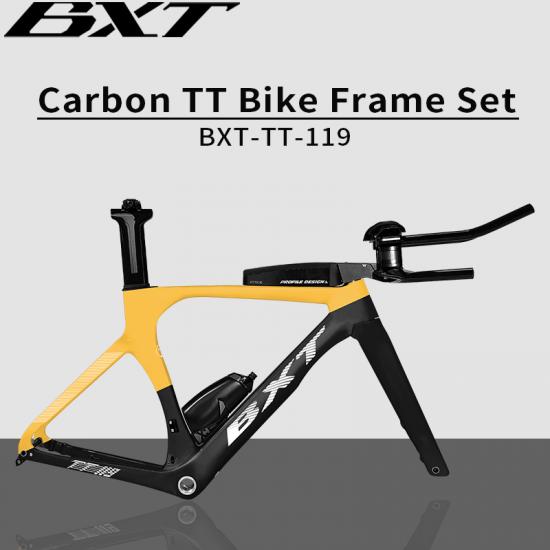

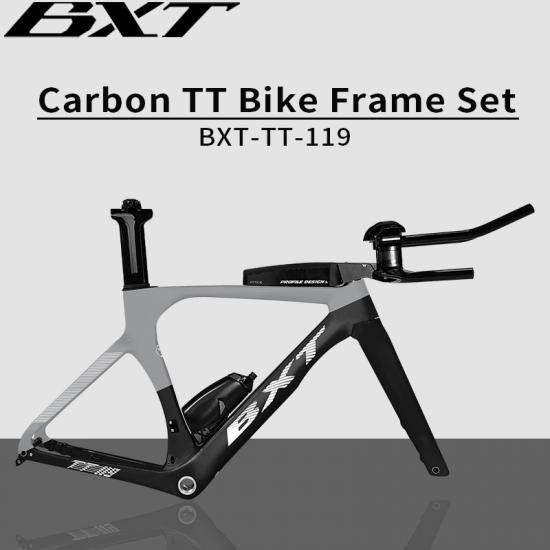

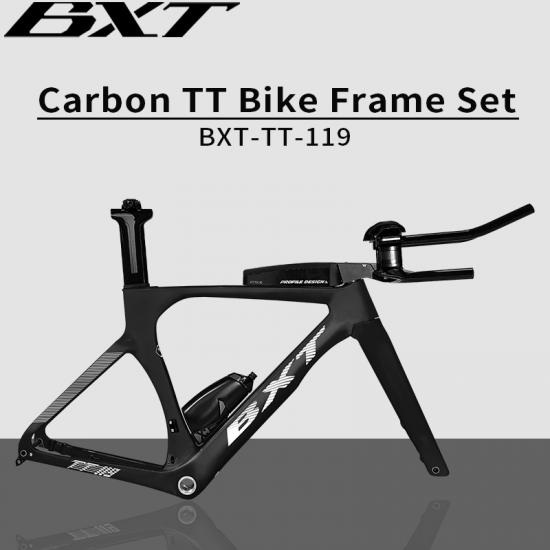

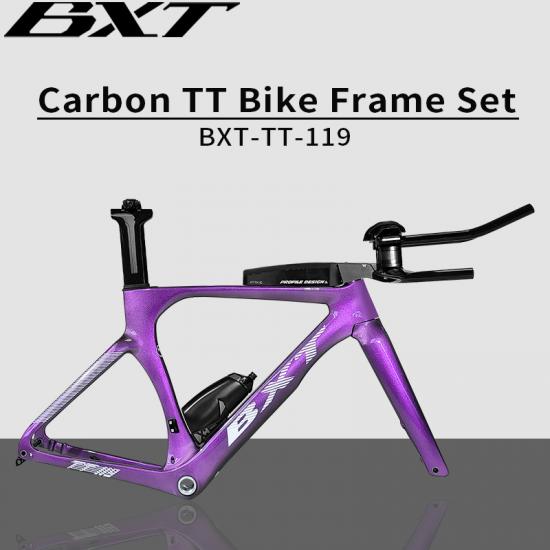

Carbon TT Frame Set

High modulus carbon fiber Time Trial bike frame Set.Compatible 32C tire.Available in 48cm,51cm,54cm,56cm,58cm sizes.

  • Item NO.:

    BXT-TT-119
  • Payment:

    FOB/EXW
  • Product Origin:

    China
  • Lead Time:

    1-2 Week
  • Product Detail

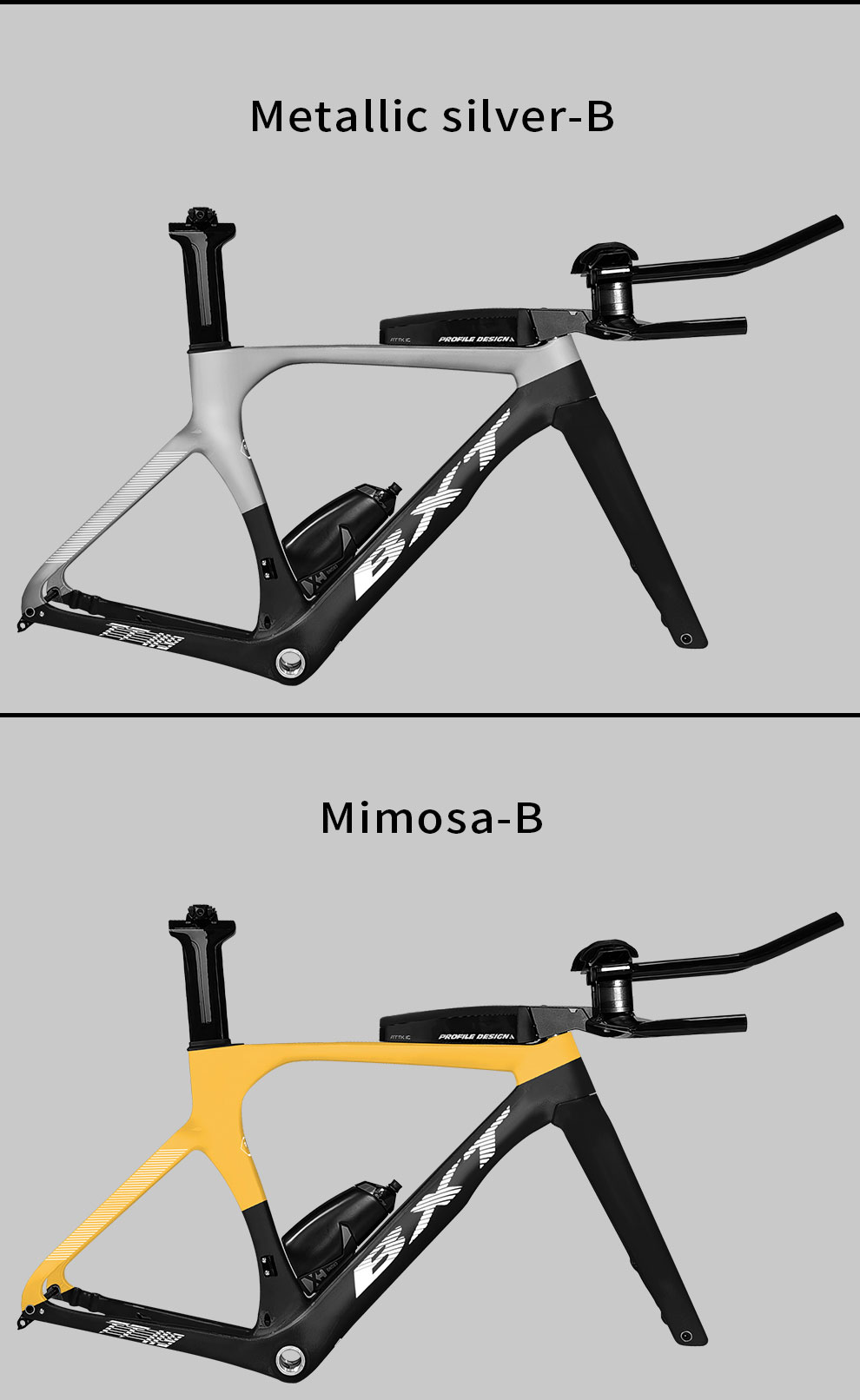

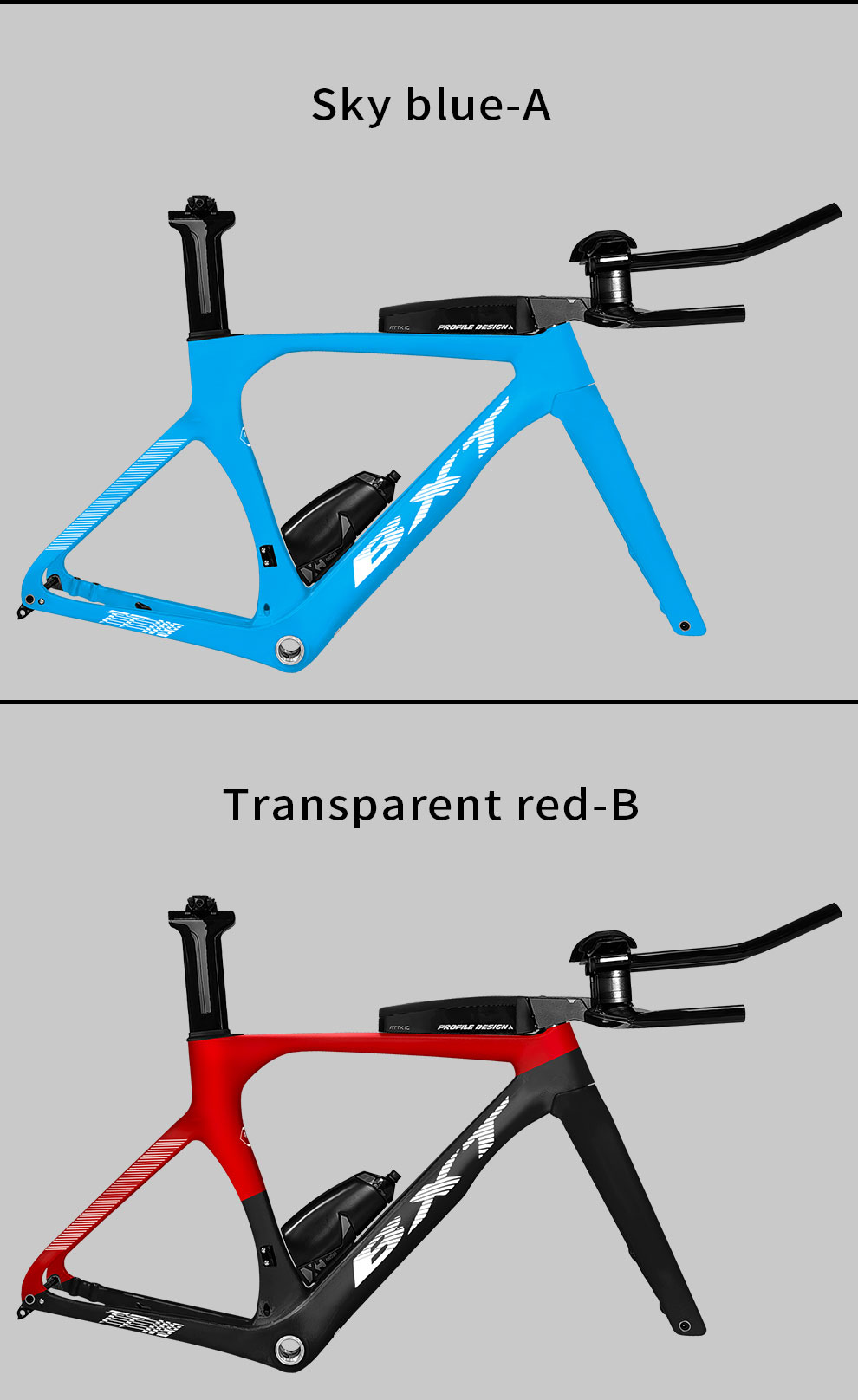

Full Carbon TT Bike Frame


High modulus carbon fiber Time Trial bike frame Set.Compatible 32C tire.Available in 48cm,51cm,54cm,56cm,58cm sizes.

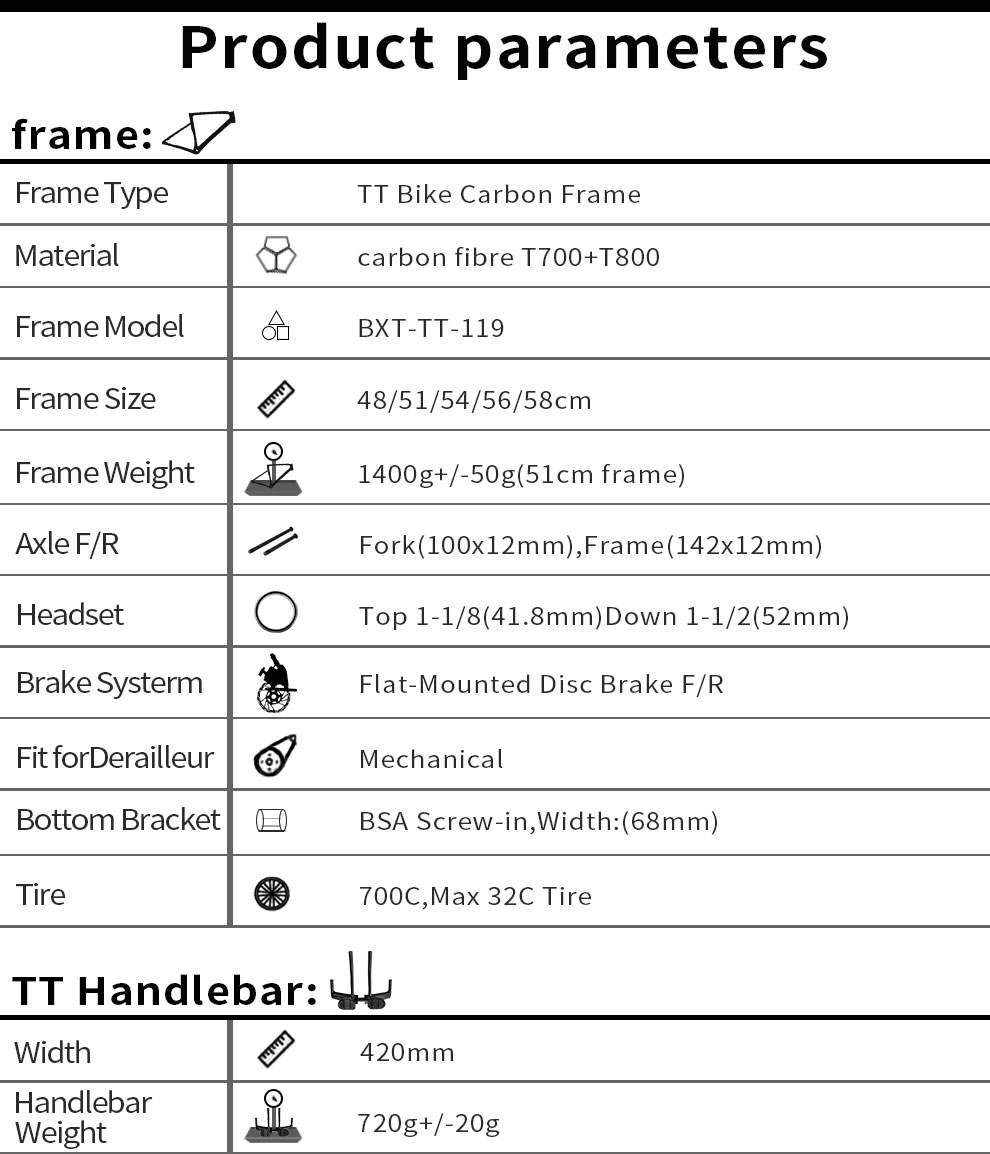

Frame:
Frame Type: Carbon Frame TT Bike Frameset
Material: carbon fibre T700+T800
Frame Model: BXT-TT-119
Frame Size: 48/51/54/56/58cm
Frame Weight: 1400g+/-50g(5lcmframe)
Axle F/R: Fork(100x12mm),Frame(142x12mm)
Headset: Top 1-1/8(41.8mm)Down 1-1/2(52mm)
Brake Systerm: Flat-Mounted Disc Brake F/R
Fit for Derailleur: Mechanical
Bottom Bracket: BSA Screw-in,Width:(68mm)
Tire: 700C,Max 32C Tire

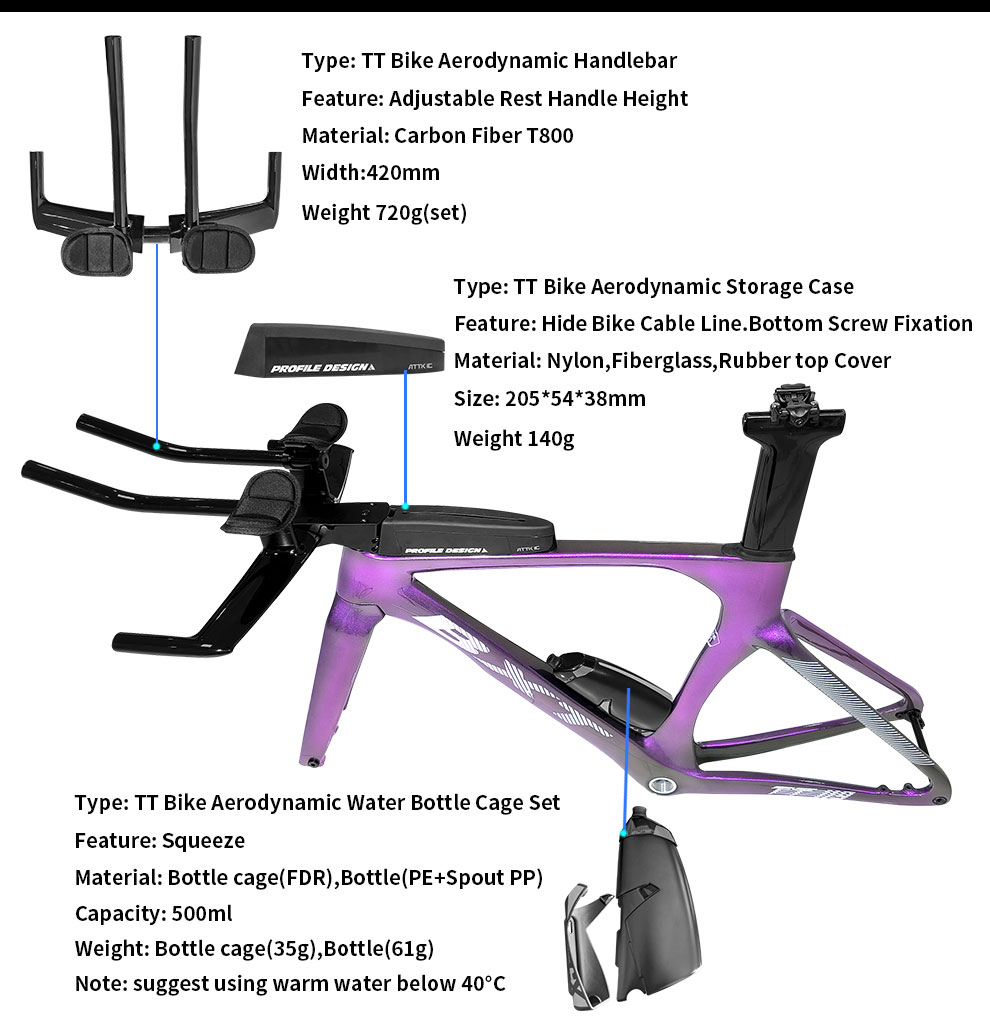

TT Handlebar:
Width: 420mm
Handlebar weight: 720g+/-20g

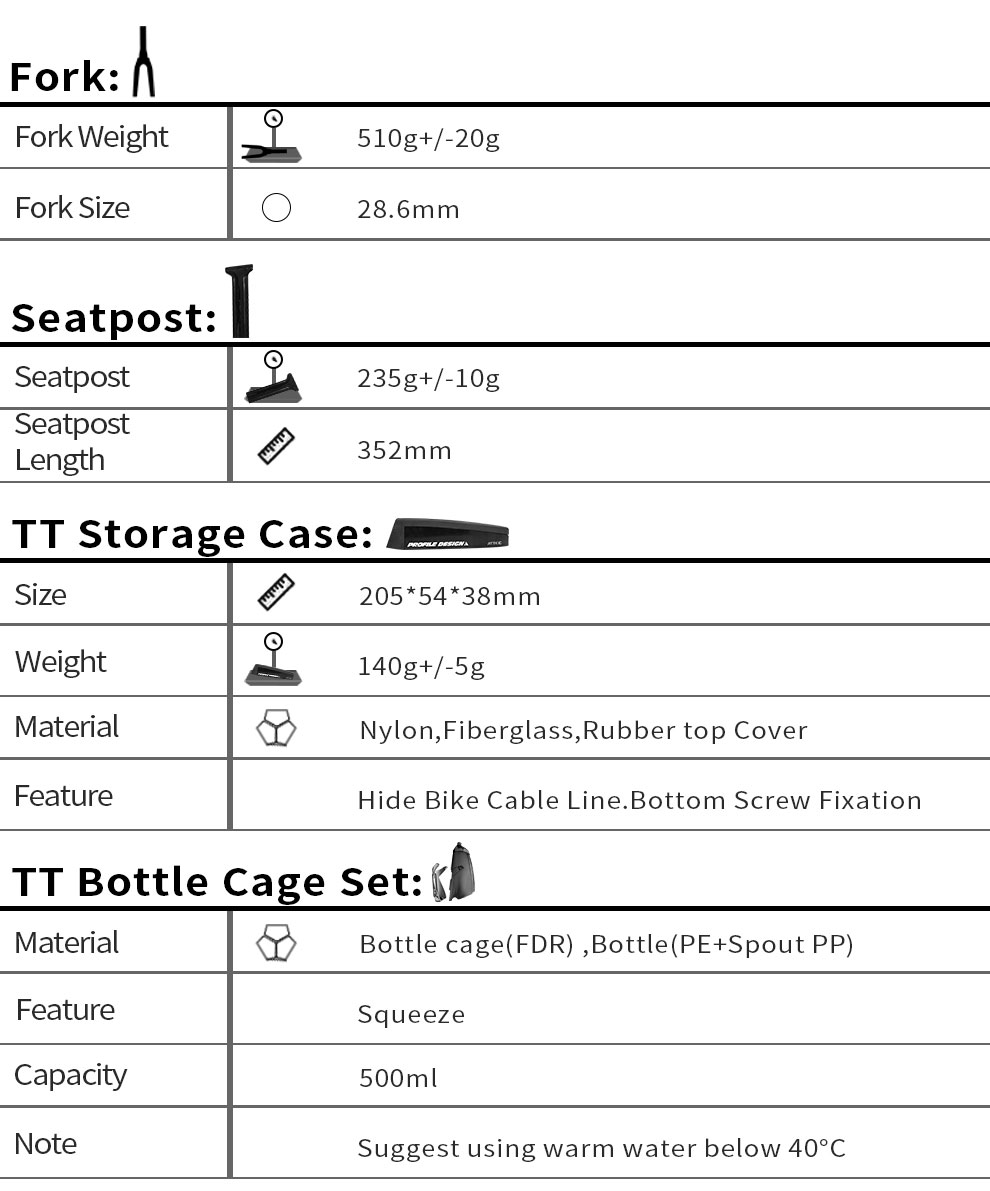

Fork:
Fork Weight: 510g+/-20g
Fork Size: 28.6mm

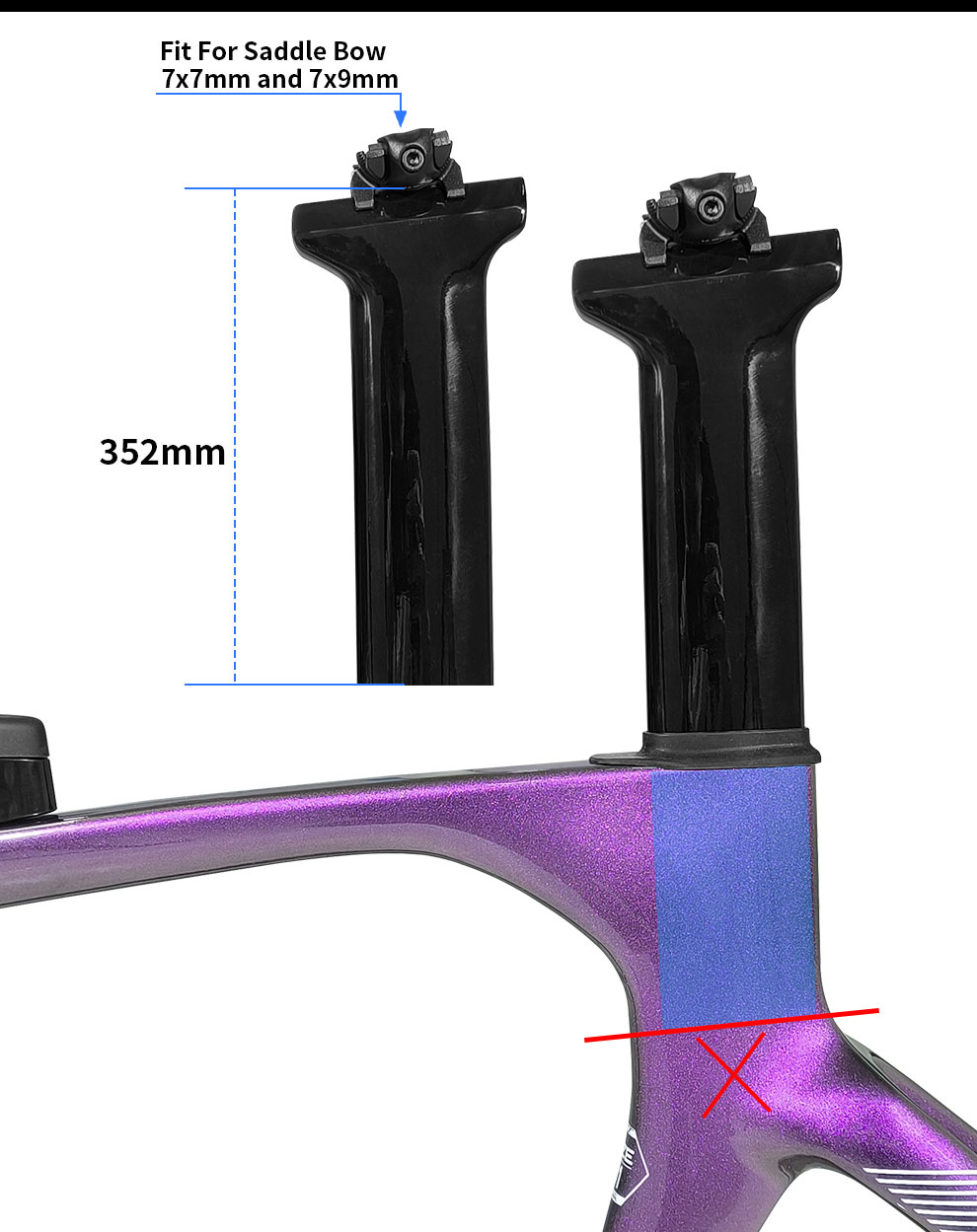

Seatpost:
Weight: 235g+/-10g
Length: 52mm

TT Storage Case:
Size: 205*54*38mm
Weight: 140g+/-5g
Material: Nylon,Fiberglass,Rubber top Cover

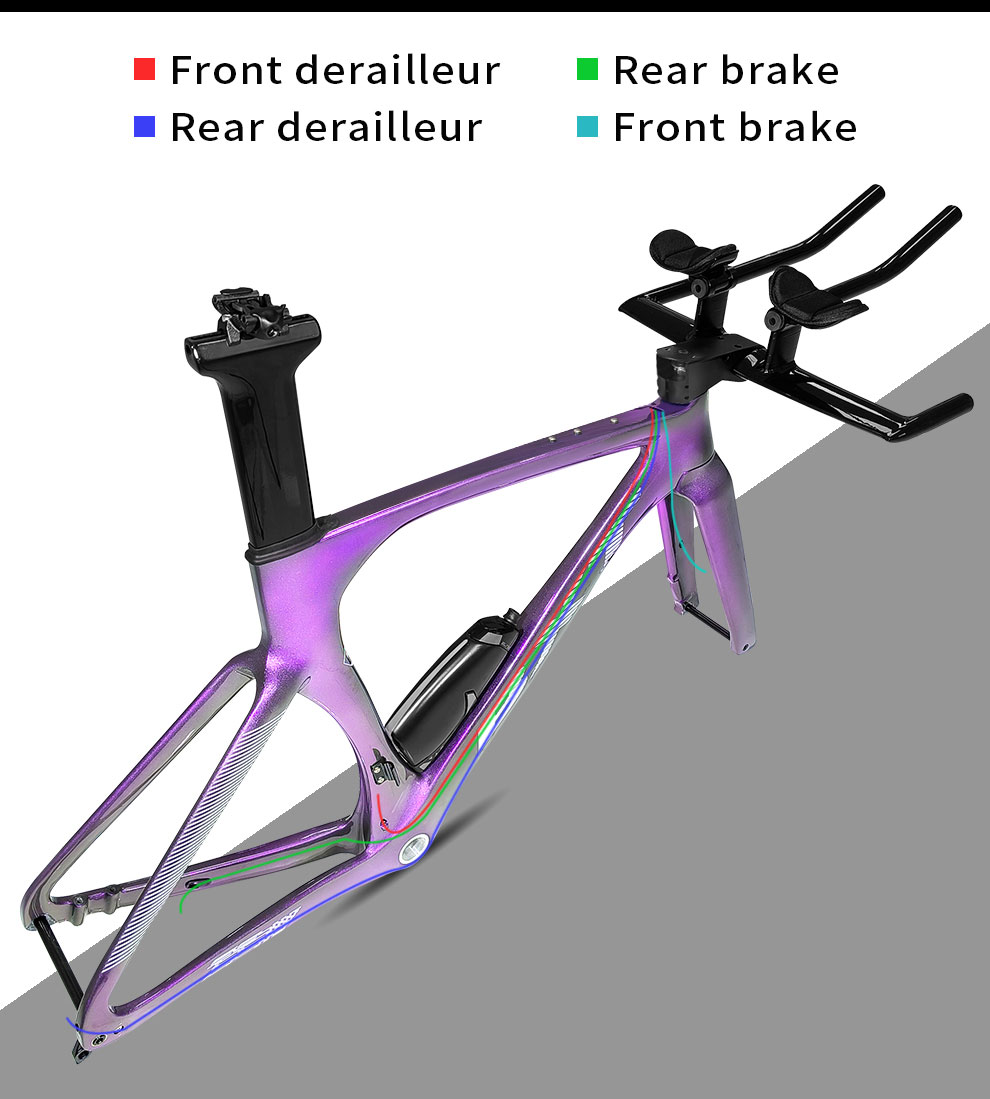

Feature: Hide Bike Cable Line.Bottom Screw Fixation

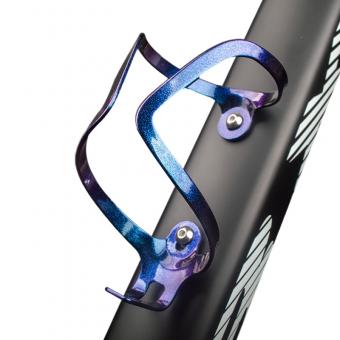

TT Bottle Cage set:
Material: Bottle cage(FDR),Bottle(PE+Spout PP)
Feature: Squeeze
Capacity: 500ml
Note: Suggest using warm water below 40°C

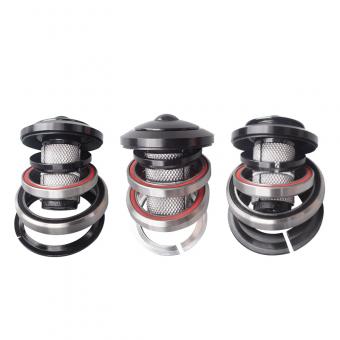

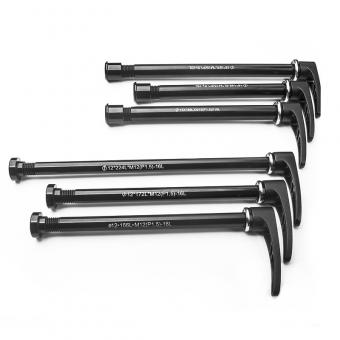

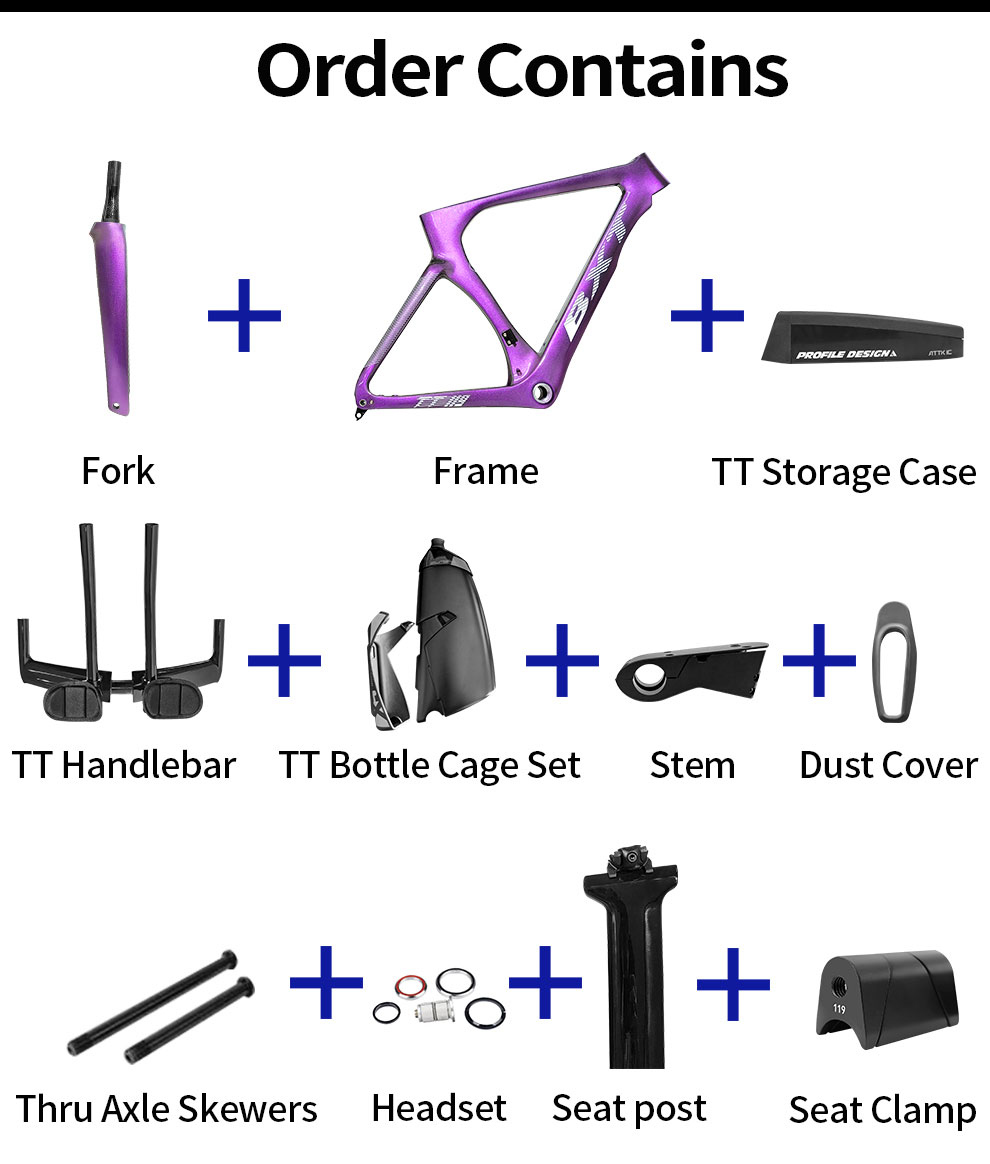

Order Contains: Frame+Fork+TT Storage Case+TT Handlebar+TT Bottle Cage Set+Stem+Dust Cover+Thru Axle Skewers+Headset+Seat post+Seat Clamp




Click this link to buy directly: (DPD tax-inclusive free shipping)

https://bxtbikes.com/collections/tt-frame

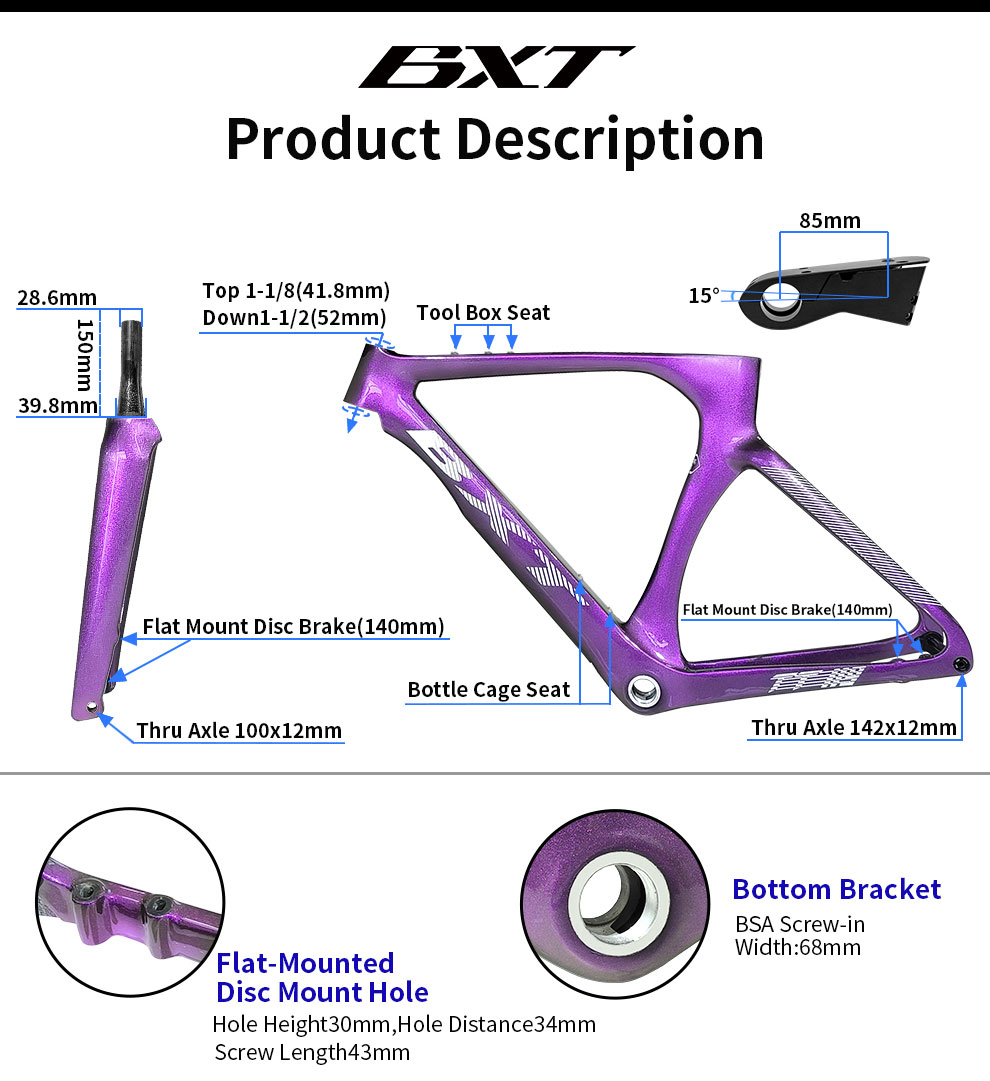

Product Description

Type
Carbon Fiber TT Frameset
Material
T1000 Carbon Fibre
Fit for Bottom Bracket
Screw-in BSA(68mm)
Fit for Headset
Top 1-1/8(41.8mm),Down 1-1/2(52mm)
Fit for Brake System
Flat-Mounted Disc Brake(140mm)
Fit for Wheel Hub
Fork(100x12mm),Frame(142x12mm)
Fit for Derailleur Type
Mechanical Both
