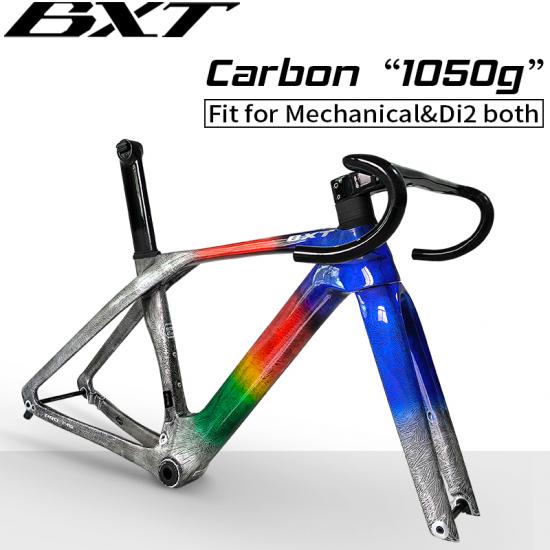

BXT-Road-145

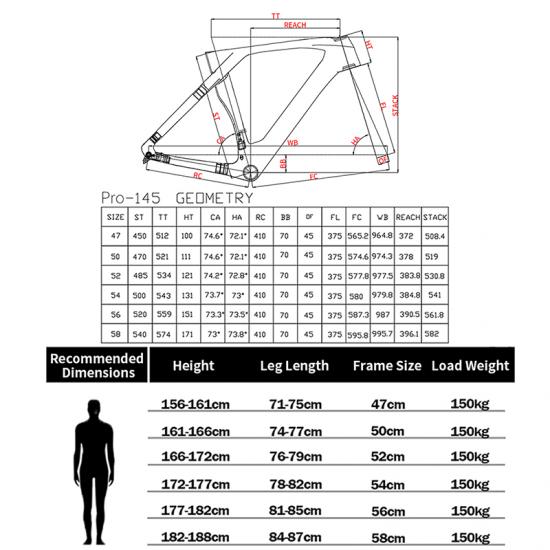

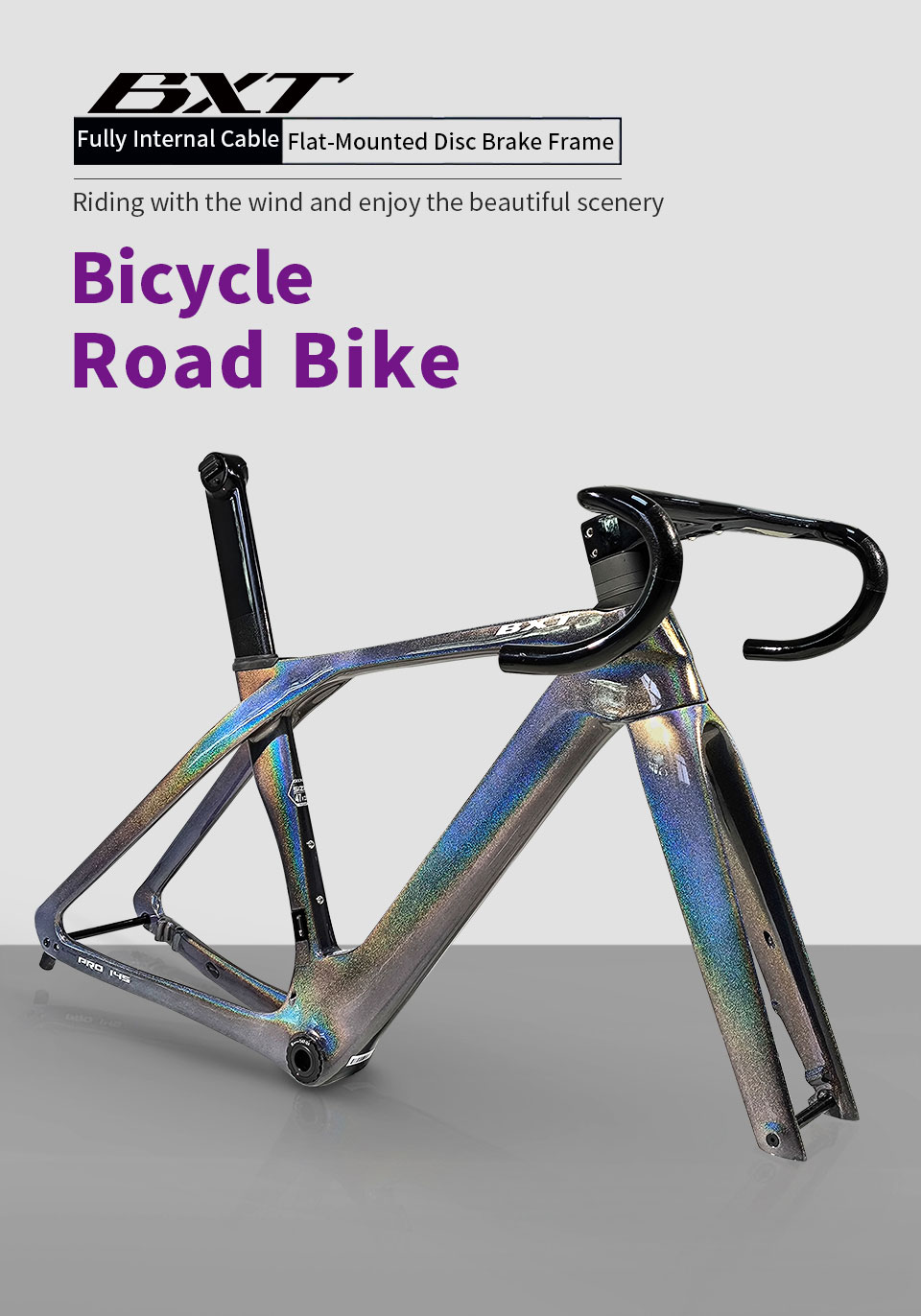

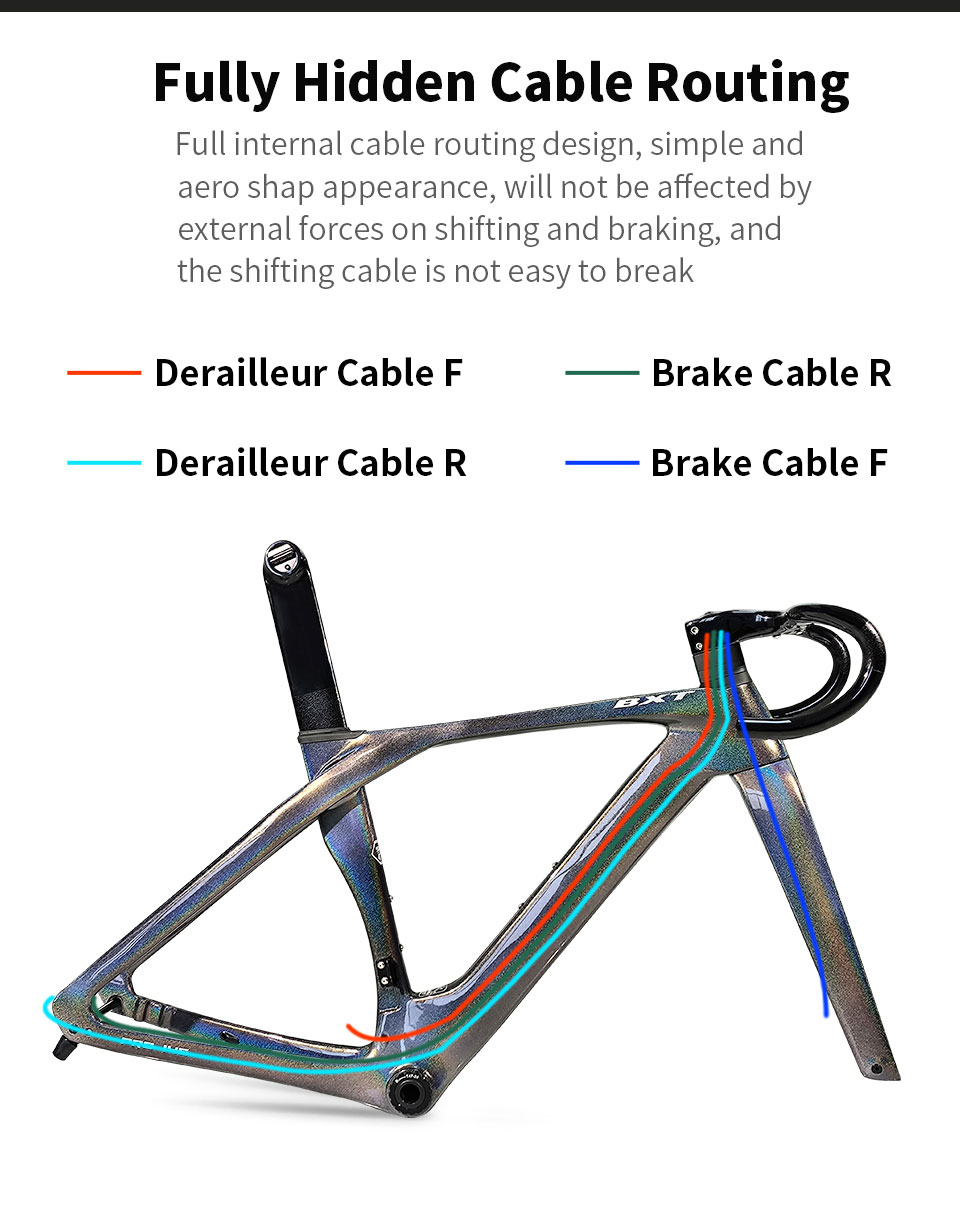

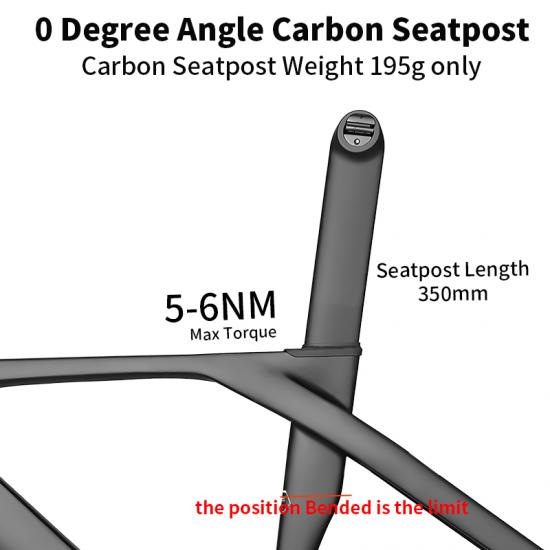

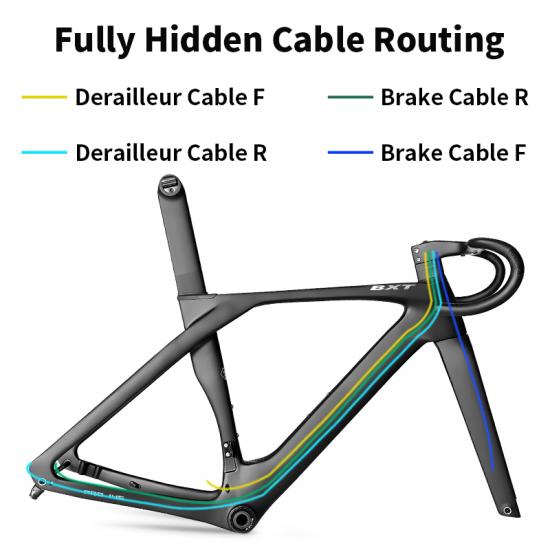

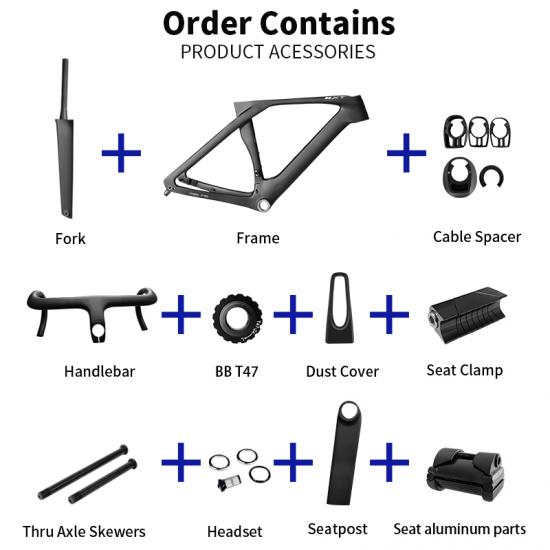

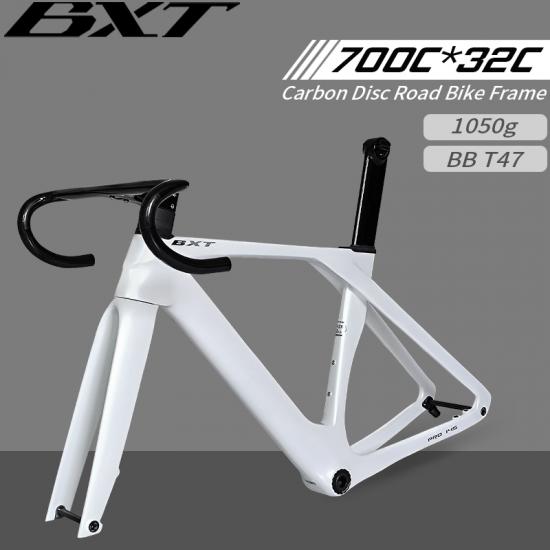

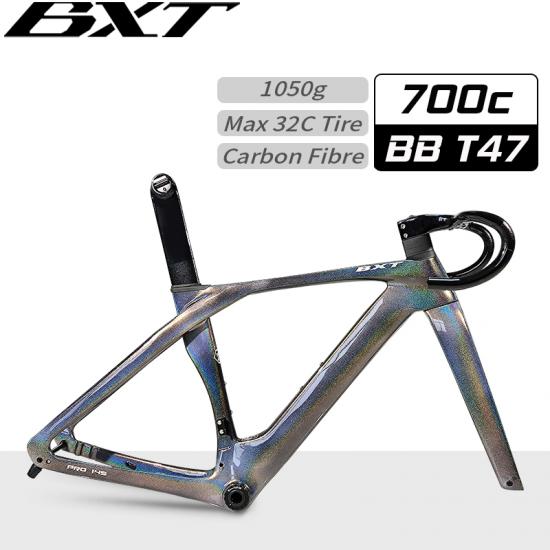

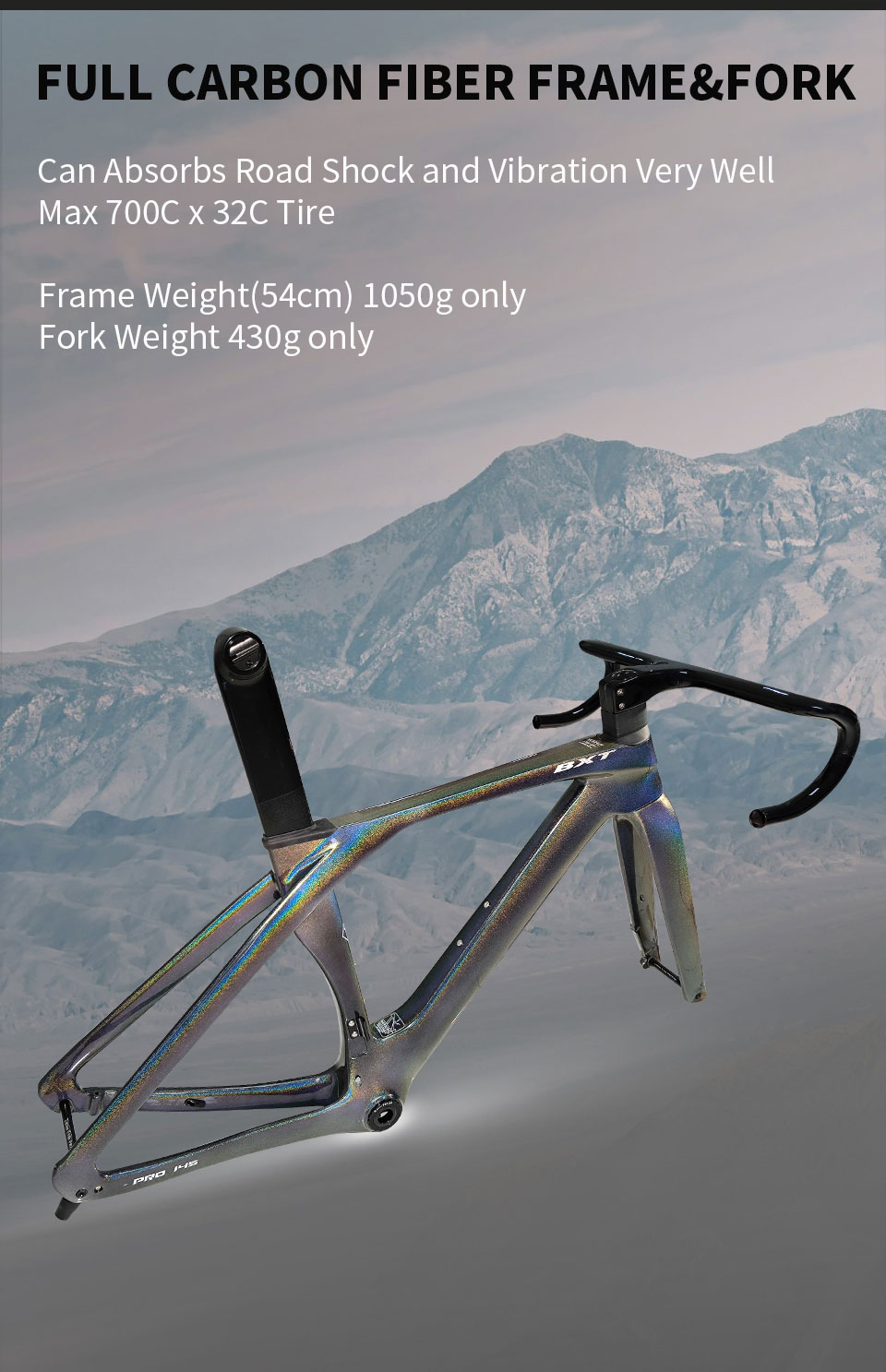

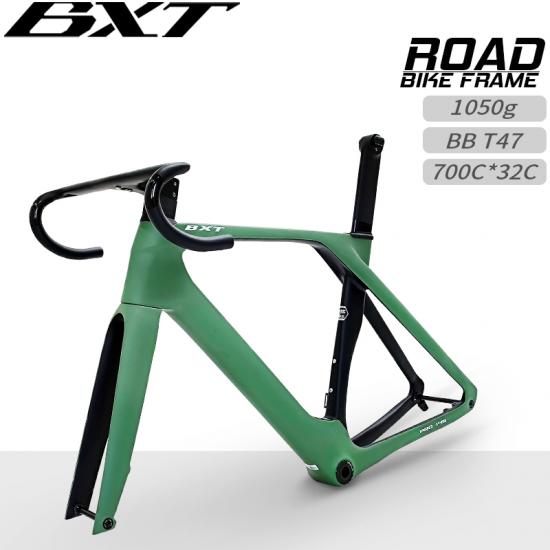

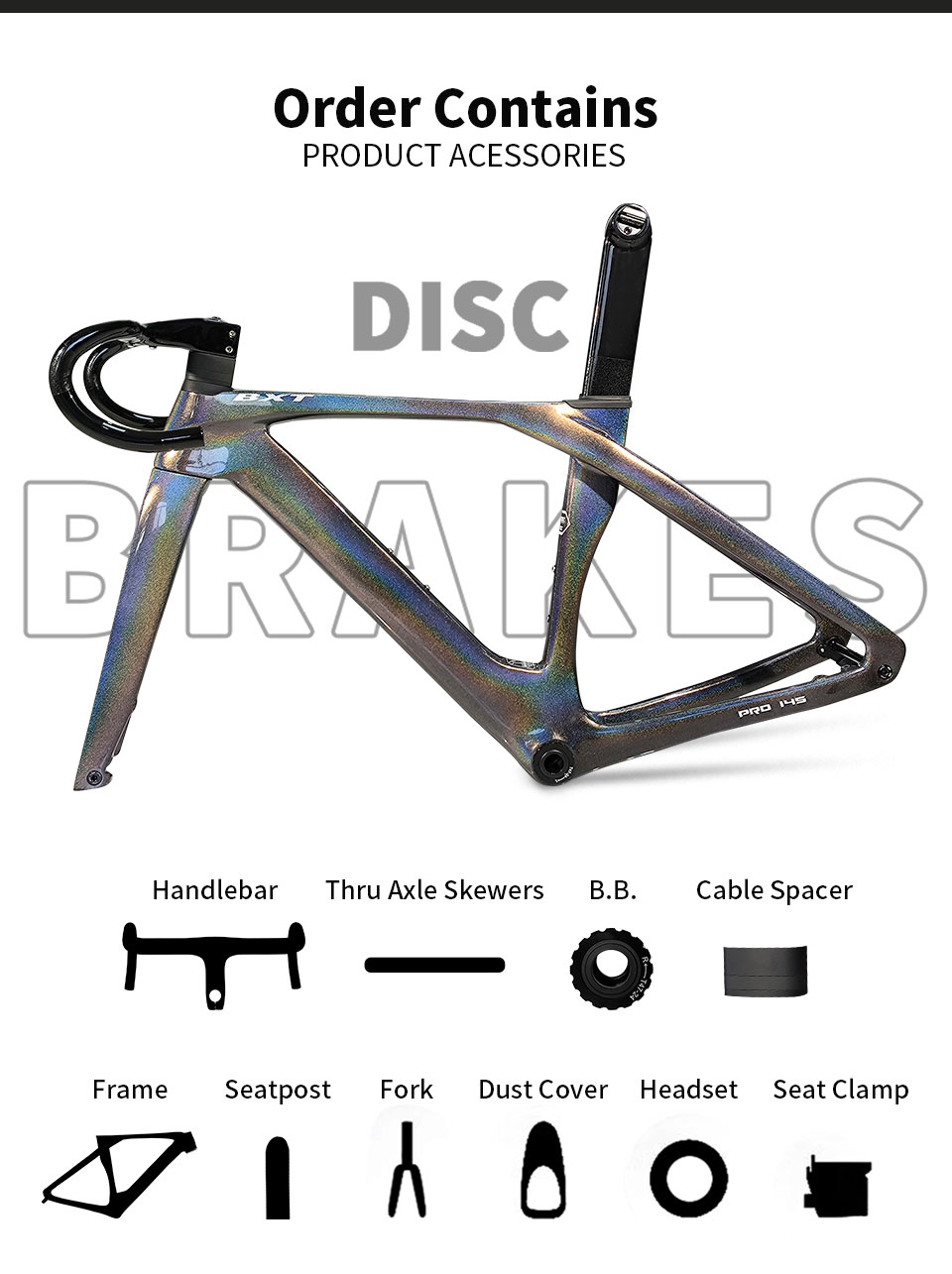

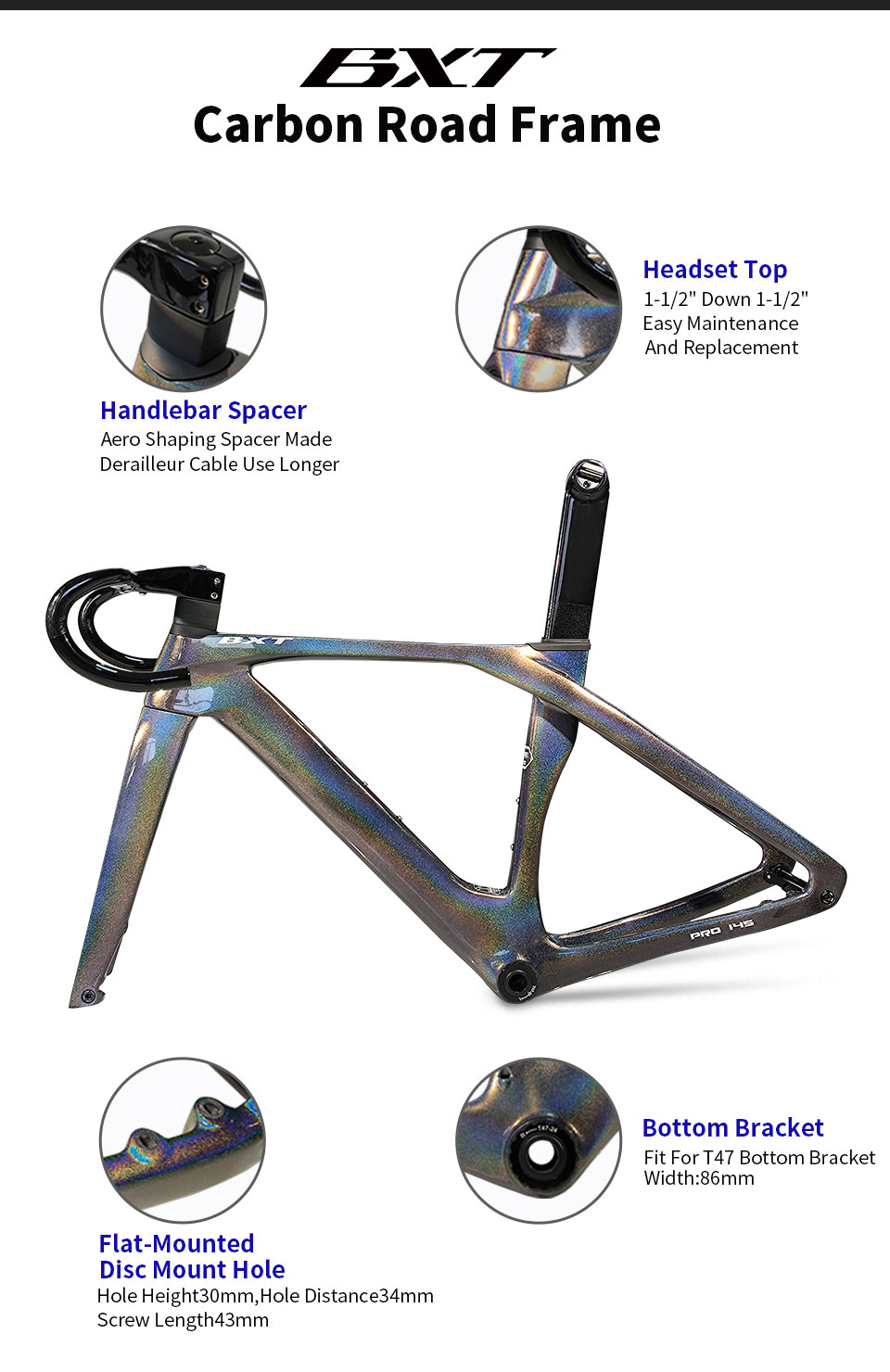

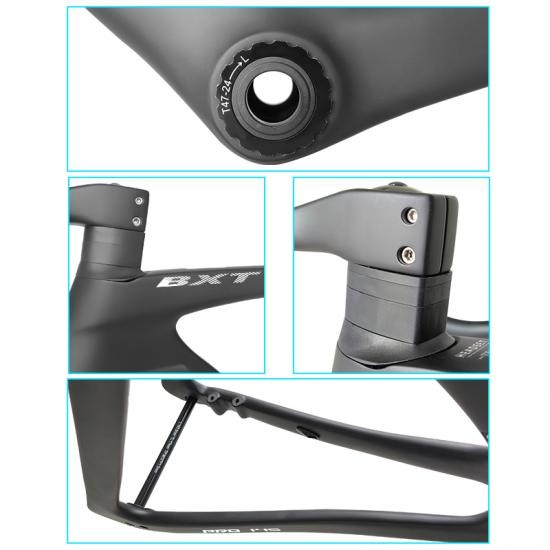

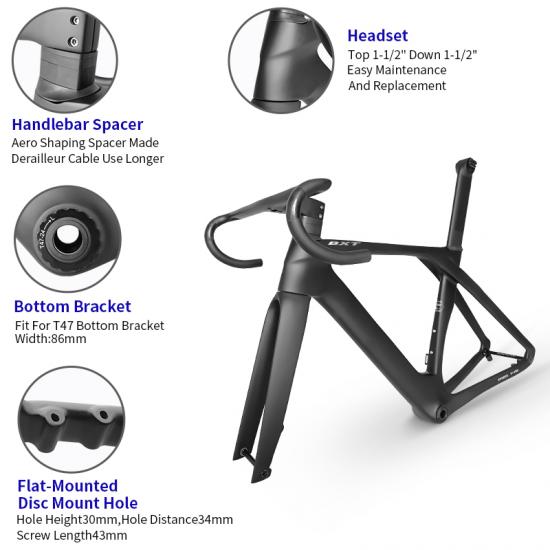

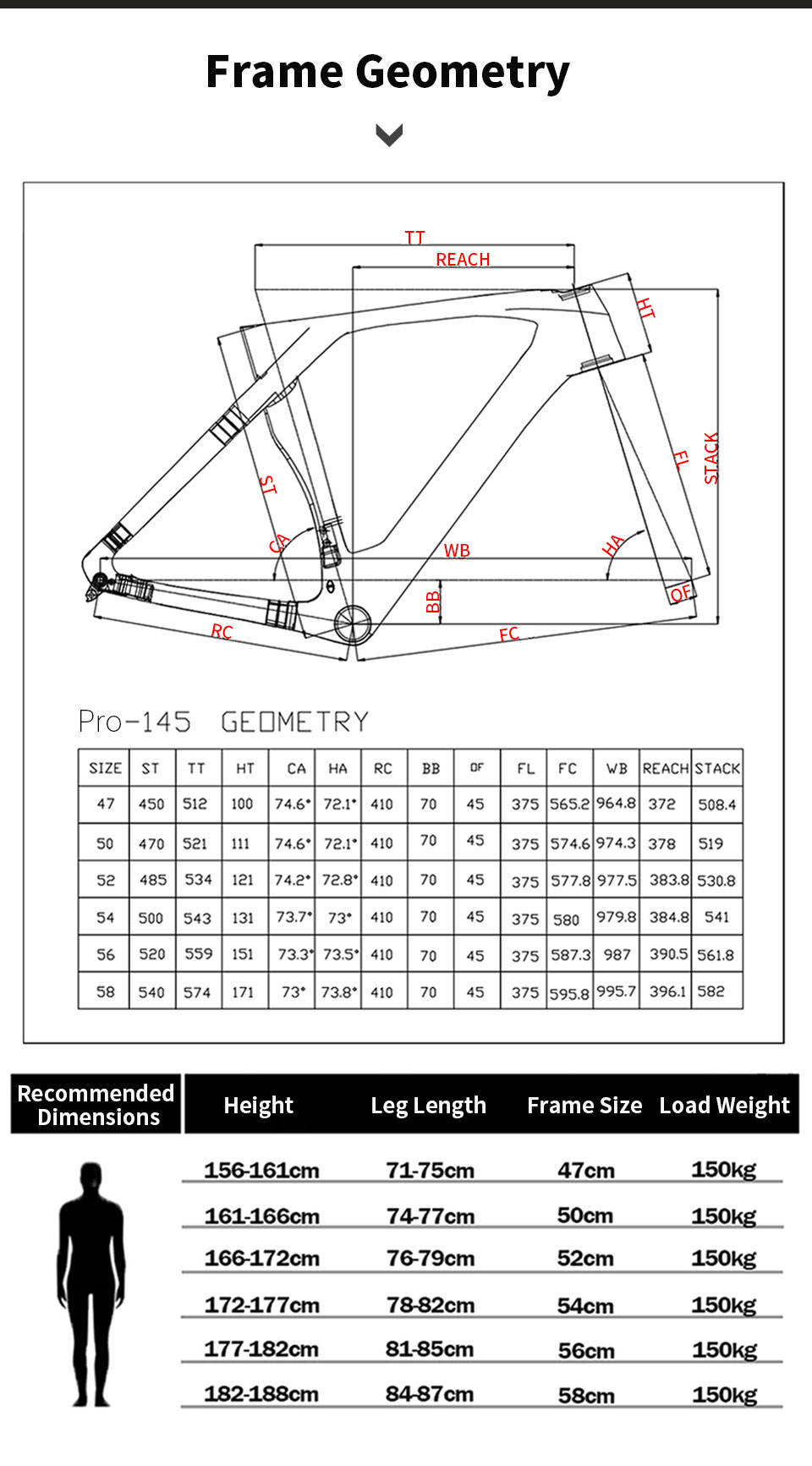

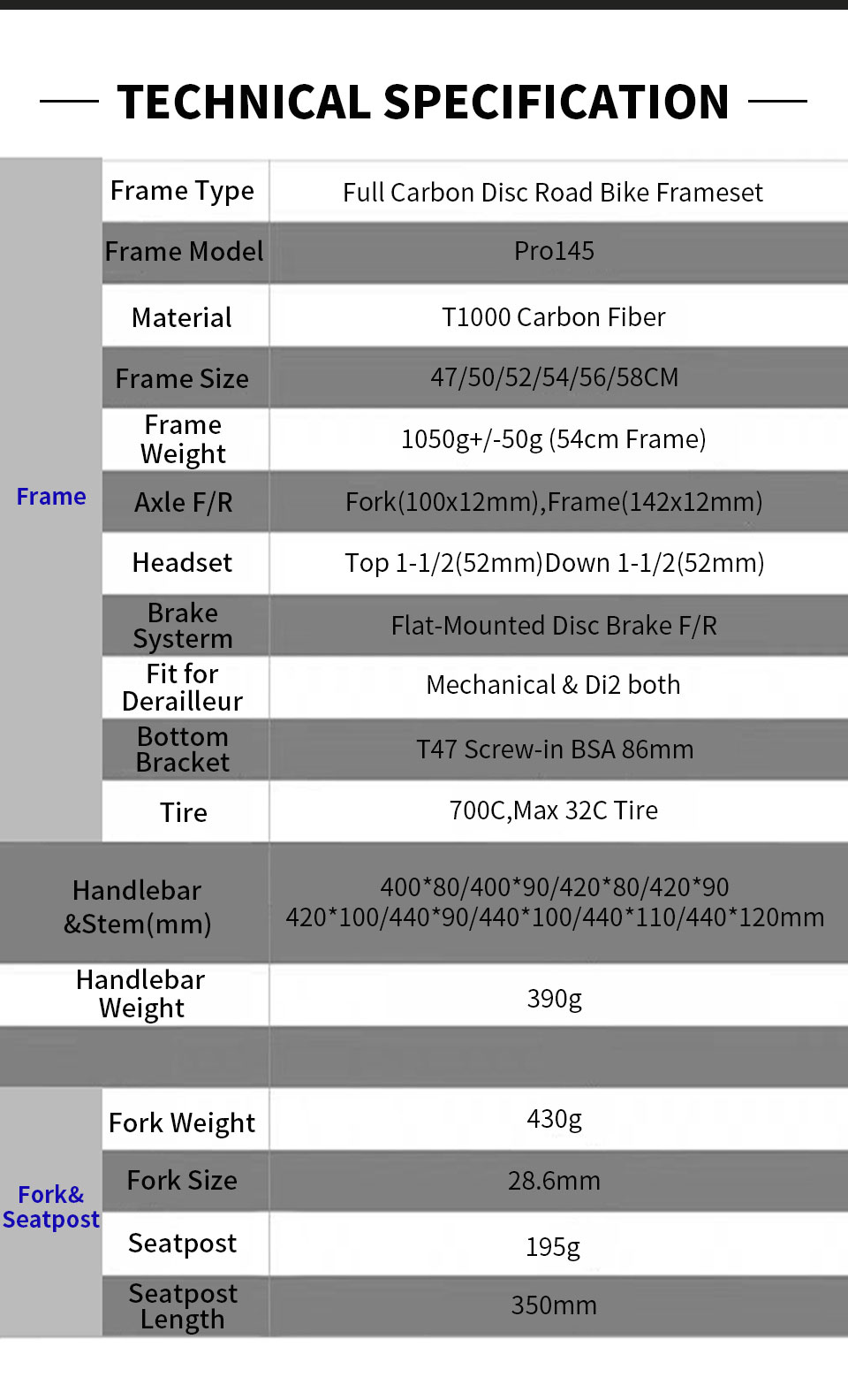

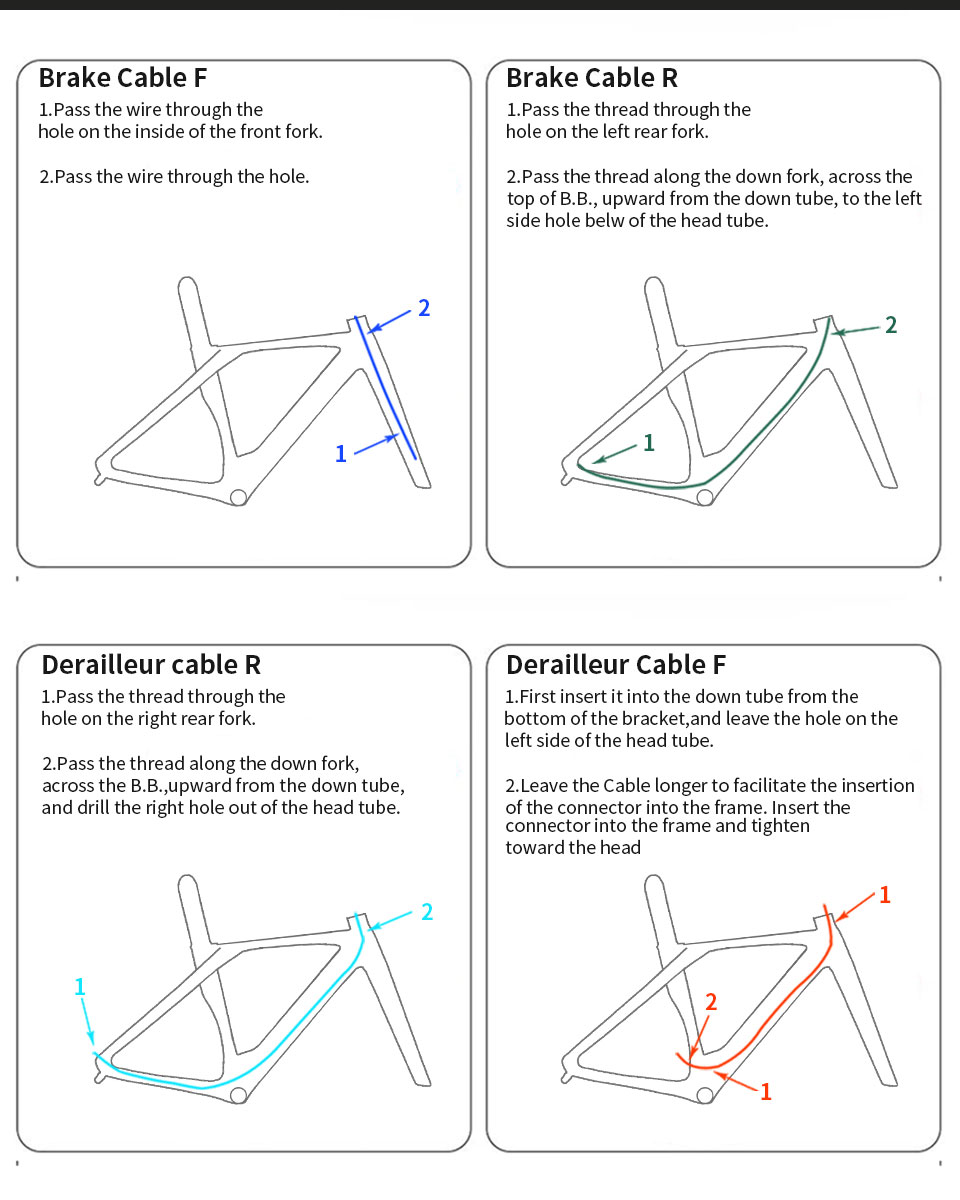

Type:Carbon Road Bike Frame/ Disc Brake Bicycle Frame Material: T1000 Carbon Fiber; Model：BXT-ROAD-145 Available Size: 47/50/52/54/56/58cm; Max load: 150kg; Handlebar Size: Wide 420/440mm,Length 90/100/110/120mm; Fit for Tire: 700C,Max 32C Tire; Brake System: Flat-Mounted Disc Brake; Fit For Bottom Bracket: BSA-T47(86mm); Fit for Wheel Hub: Fork(100x12mm),Frame(142x12mm); Fit for Headset: Top 1-1/2(52mm),Down 1-1/2(52mm); Fit for Derailleur: Mechanical; Brake,Derailleur Cable: Fully Hidden; Order Contains: Frame+Fork+Handlebar+Seat Post+Seat Clamp+Thru Axle Skewers+Headset; Click this link to buy directly: (DPD tax-inclusive free shipping)： https://bxtbikes.com/collections/disc-brake-road-frame

frame: FrameType:Carbon Road Bike Frame Disc Brake Material：carbonfibre T700+T800 Frame Model：BXT-SL-115 Frame Size：49/52/54/56cm Frame Weight：950g+/-50g(56cm frame) Axle F/R：Fork(12x100mm).Frame(12x142mm) Headset：Top 1-1/2(52mm)Down 1-1/2(52mm) Brake Systerm：Flat-Mounted Disc Brake F/R (140mm) Fit forDerailleur：Mechanical& Di2 both Bottom Bracket：T47 Screw-in BSA(68mm) Tire：700Cx32C Handlebar: Handlebar&Stem(mm): The default handlebar size is 420*90. If you need other sizes, pls contact customer service. Handlebar Weight: 390g+/-20g Fork Weight: 440g+/-20g Fork Size: 28.6mm Seatpost Weight: 140g+/-10g Seatpost Length: 400mm Our Online Shop：www.bxtbikes.com

Carbon Bike Frame /Full Suspension Frame 29er/Ebike Type: E-MTB Carbon Full Suspension Frame 29er; Material: T1000 Carbon Fiber; Frame Travel: 150mm; Fit for Rear Shock: 210*55*24mm; Fit for Seat Clamp: 37mm; Fit for Seat Post: 31.6mm; Fit for Disc Brake: 180mm; Fit for Motor: BAFANG M500/M600; Fit for Battery: BAFANG BT F010.D672.C(48V-14AH); Fit for Headset: Top 44mm, Down 56mm; Fit for Tire: 29er.Max 2.5 Tire; Rear Spacing Specification: Boost 148x12mm; Rear Hook: UDH(1.5 pitch); Max load: 150kg; Order Contains: Frame+Thru Axle Quick+Seat Clamp+Rear Hook; Our Online Shop：https://bxtbikes.com/products/bxt-29er-e-mtb-all-full-suspension-carbon-mountain-bike-frame-travel-150mm-am-bike-carbon-full-suspension-electric-mtb-frame

Made of high-strength aluminum alloy 7075-T6 to ensure rigidity and weight. 6 specifications are available.

Flat and wide down tube, slim upper tube geometry streamlined design adds stiffness and aerodynamics.BXT-ROAD-035 Carbon fiber road bike frame delivers the perfect balance of aerodynamics, light overall weight.Available in 49cm,52cm,54cm,56cm sizes.

Thru axle 150x15mm specification, can use 26er 5.0inch tire, full carbon fiber material, 45mm offset. Our Online Shop：www.bxtbikes.com

For inquiries, please add WhatsApp: +86 13428991904 For purchase, please click the link: https://bxtbikes.com/collections/road-handlebar

Type: 29er Mountain Bike Carbon Frame Model:BXT-MTB-056 (UHD) Material: T700 Carbon Fiber Weight: 1150+/-50(ForLSize)(Weight is for reference only) Max load: 150kg; Fit for Seat Clamp: 34.9mm; Fit for Seat Post: 31.6mm; Fit for Crankset: Single Chainring; Fit for Tire: 29er.Max 2.4Tire; Fit for Disc Brake: 160mm; Fit For Bottom Bracket: Screw-in T47(73mm) Fit for Hub: Boost 148x12mm; Fit for Headset: Top 1-1/2(52mm)Down 1-1/2(52mm) Brake,Derailleur Cable: Frame Internal;
